8 Way SMA Power Divider/Combiner 5-1000MHz

8 Way SMA Power Divider/Combiner 5-1000MHz

Product Description

XINQY Enterprise carries a wide selection of power dividers to fit your needs. These components are essential in many systems,allowing the combination of multiple signals or splitting of a single signal into multiple signals with equal magnitude and phase.

XINQY Enterprise’s Microstrip Power Dividers/Combiners come with excellent performance featuring low insertion loss,low vswr,high isolation and excellent amplitude and phase balance.They are available in both narrow and broad bandwidths with a variety of connector types such as N-Type, SMA,and 2.92mm. Please see Parameters tables for details!

For any enquiries or any customization,please send email to hansen.hou@xqy-tech.com and we will reply to you as soon as possible.

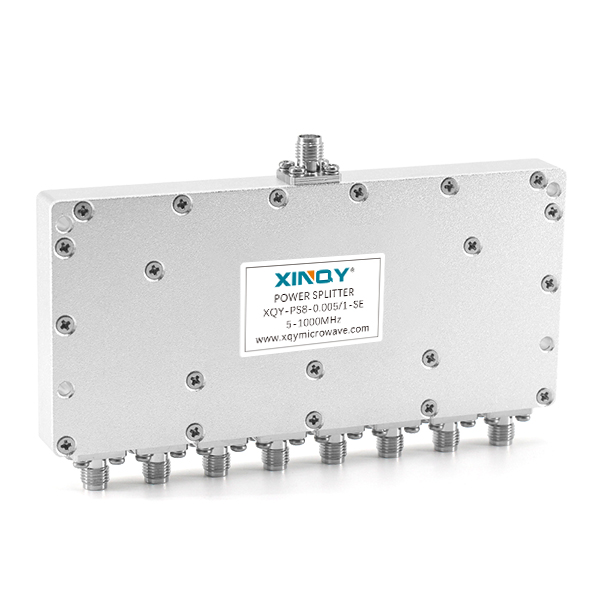

8 Way SMA Power Divider/Combiner 0.005-1GHz



Features                                                                           Applications

•  8-Way SMA Power Divider                                                         •  Radar

•  5-1000 MHz Frequency Range                                                    •  Satcom

•  Insertion Loss ≤2.5dB                                                                  •  Aerospace/Aviation

•  Isolation: Typ.26dB                                                                      •  Test and Measurement

•  Combined port VSWR: Typ.1.25                                                 •  Military Applications

•  Distribution port VSWR: Typ.1.20                                               •  Wireless Communications





Electrical Specifications

Frequency Range 5-1000 MHz
Insertion Loss ≤ 2.5 dB (Excluding theoretical loss 9.0 dB)
Combined port VSWR Typ.1.25 / Max.1.40
Distribution port VSWR Typ.1.20 / Max.1.30
Isolation Typ.26dB / Min.18dB
Amplitude Balance ≤ 0.5dB
Phase Balance ±10°
Impedance 50 Ohms
Port Connectors SMA-Female
Power Rating Splitter 1W; Combiner 0.5W
Operation Temperature -35℃ ~ +75℃
Surface Finishing Sandblasting natural color conductive oxide
Outline Dimensions

120*56*12 (mm)

Weight

200 (g)
