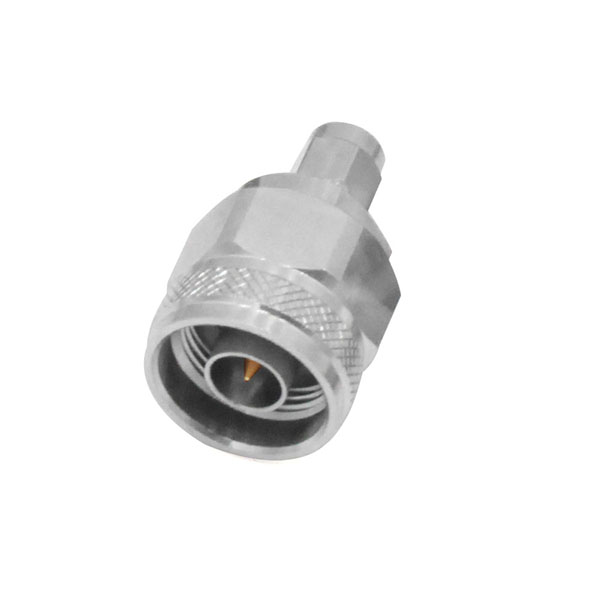

N Male to SMA Male Adapter

N Male to SMA Male Adapter

Product Description

RF Coaxial Adapters are often used to enable connections between two connector types.

XINQY Enterprise carries a wide selection of RF Coaxial Adapter to fit your needs. These adapters are available in N-Type, SMA, TNC, BNC, 3.5mm, 2.92mm, 2.4mm, 1.85mm connectors same-series and between-series.

For any enquiries or any customization, please send email to hansen.hou@xqy-tech.com and we will reply to you as soon as possible.





N Male to SMA Male Adapter



Configuration

•  N Male Connector 1                                                                      •  Precision Design

•  SMA Male Connector 2                                                                 •  Straight Body Geometry

•  DC-18GHz Frequency Range                                                       •  50Ohms



Features

•  N to SMA RF Coaxial Adapter

•  Max VSWR of 1.20:1 Up to 18 GHz

•  Contact plating according to MIL-G-45204 (N)

•  Contact plating according to MIL-STD-348 (SMA)

•  Gold Over Nickel Plated Beryllium Copper Contact

•  Passivated Stainless Steel Body



Applications

•  Allows Connection Between Series

•  General Purpose Test

•  Precision Test & Measurement

•  Interconnection of RF Cables and Equipment
