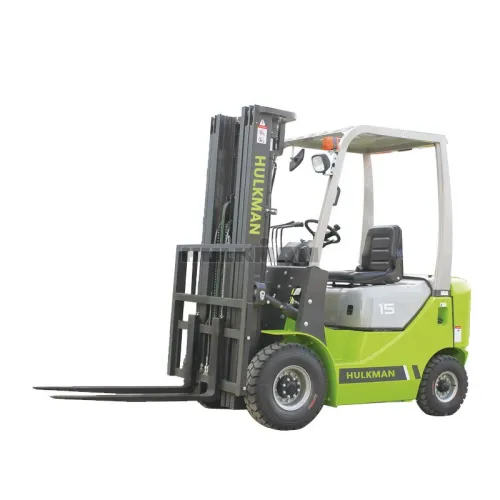

1.5Ton 1.8Ton Diesel Forklift
HULKMAN 1.5Ton 1.8Ton Diesel Forklift uses well-designed pipe and joint, which adapts each other and makes the hydraulic system stable and forklift durable.
Product Description
1.5Ton 1.8Ton Diesel Forklift Product Description
Standard Lifting Height: 3000mm
Standard Fork Length: 920mm
Standard Air Tires
LED Warning Light
OEM Brand Service
Optional Attachments: Fork Side Shifter, Paper Roll Clamp, Bale Clamp, Rotator etc.
HULKMAN 1.5Ton 1.8Ton Diesel Forklift uses well-designed pipe and joint, which adapts each other and makes the hydraulic system stable and forklift durable.
The HULKMAN forklift overhead guard is made by press welding, with 5 transparent plastic cover to make sure rainproof and good view.
This is HULKMAN forklift optimized operation lever layout, the new operation handle, and the spacious operating space, further enhance the forklift operation comfortable.
In HULKMAN forklift’s hydraulic pipeline, the rubber tube and the joint adopt the conical surface seal form, the sealing effect is good, the long-term use will not seep the oil.
HULKMAN forklift’s spacious upper and lower pedal and driving space can reduce leg operation fatigue.
The forklift design of the combined switch with the car’s double handle is simpler and more convenient.
HULKMAN forklift good design with buffer in lifting system will effectively reduce the vibration of mast.
A new muffler installation structure is adopted to reduce HULKMAN forklift vibration and noise of the whole vehicle.
Specification Parameters
|
Features |
|
FD15 |
FD18 |
|
Power |
/ |
Diesel Engine |
Diesel Engine |
|
Rated Capacity |
kg |
1500 |
1800 |
|
Center of Load |
J(mm) |
500 |
500 |
|
Lifting Height |
h1(mm) |
3000 |
3000 |
|
Free Lifting Height |
h3(mm) |
130 |
130 |
|
Fork Size LxWxH |
L5xWxT(mm) |
920x100x35 |
920x100x40 |
|
Tilt Forward/Backward |
/ |
6/12 |
6/12 |
|
Min. Turning Radius |
R1(mm) |
2060 |
2060 |
|
Min. Right Angle Stacking Width |
Ra(mm) |
3780 |
3780 |
|
Min. Ground Clearance (Mast) |
m(mm) |
105 |
105 |
|
Overhead Guard Height |
h4(mm) |
2040 |
2040 |
|
Front Overhang |
L3(mm) |
400 |
400 |
|
Rear Overhang |
L4(mm) |
450 |
450 |
|
Performance |
|
|
|
|
Max. Traveling Speed (Load) |
km/h |
14.5 |
14.5 |
|
Max. Lifting Speed (Load/Empty) |
mm/s |
460/500 |
460/500 |
|
Drawbar Pull/Gradeability |
kN/% |
16/20 |
16/20 |
|
Size |
|
|
|
|
Overall Length with fork |
L1(mm) |
3170 |
3170 |
|
Overall Width |
W1(mm) |
1086 |
1086 |
|
Mast Lowered Height |
h2(mm) |
1990 |
1990 |
|
Mast Extended Height |
mm |
4025 |
4025 |
|
Chassis |
|
|
|
|
Tire (Front) |
/ |
6.5-10-10PR |
6.5-10-10PR |
|
Tire (Rear) |
/ |
5.00-8-10PR |
5.00-8-10PR |
|
Wheelbase |
L2(mm) |
1400 |
1400 |
|
Tread Width (Front/Rear) |
S/P(mm) |
890/920 |
890/920 |
|
Curb Weight (None-Load) |
kg |
2680 |
2890 |
|
Engine |
|
|
|
|
Battery (Voltage/Capacity) |
V/Ah |
12/90 |
12/90 |
|
Engine Model |
/ |
Xinchai NC485BPG |
Xinchai NC485BPG |
|
Rated Power |
kw |
30 |
30 |
|
Rated Torque |
kw |
131 |
131 |
|
Displacement |
L |
2.27 |
2.27 |
Remark: Below HULKMAN 1.5Ton 1.8Ton Diesel Forklift 2D Graph for further reference.
Customized Lifting Height and Loading Capacity
Standard 2 Stage (Duplex) Mast
|
Lifting Height |
Loading Capacity |
Mast Lowered Height |
Mast Tilt Angle |
||
|
|
1.5Ton Single Tire |
1.8Ton Single Tire |
1.5-1.8Ton Fork Landing |
1.5-1.8Ton Height with Backrest |
F/R |
|
2000mm |
1500kg |
1800kg |
1490mm |
3025mm |
6/12° |
|
2500mm |
1500kg |
1800kg |
1740mm |
3525mm |
6/12° |
|
3000mm |
1500kg |
1800kg |
1990mm |
4025mm |
6/12° |
|
3300mm |
1500kg |
1800kg |
2140mm |
4325mm |
6/12° |
|
3500mm |
1500kg |
1800kg |
2240mm |
4525mm |
6/12° |
|
3700mm |
1500kg |
1800kg |
2340mm |
4725mm |
6/12° |
|
4000mm |
1500kg |
1800kg |
2540mm |
5025mm |
6/12° |
|
4500mm |
1300kg |
1400kg |
2790mm |
5525mm |
6/6°*6/12° |
|
5000mm |
950/*1150kg |
1150/*1350kg |
2040mm |
6025mm |
6/6°*6/6° |
|
5500mm |
*1000kg |
*1050kg |
3340mm |
6525mm |
*3/6° |
|
6000mm |
*650kg |
*850kg |
3590mm |
7025mm |
*3/6° |
Optional 2 Stage (Duplex) Full Free Mast
|
Lifting Height |
Loading Capacity |
Mast Lowered Height |
Free Lifting Height |
Mast Tilt Angle |
||
|
|
1.5Ton Single Tire |
1.8Ton Single Tire |
1.5-1.8Ton Fork Landing |
1.5-1.8Ton Height with Backrest |
1.5-1.8Ton Height with Backrest |
F/R |
|
2000mm |
1500kg |
1800kg |
1490mm |
3035mm |
495mm |
6/12° |
|
2500mm |
1500kg |
1800kg |
1740mm |
3535mm |
745mm |
6/12° |
|
3000mm |
1500kg |
1800kg |
1990mm |
4035mm |
995mm |
6/12° |
|
3300mm |
1500kg |
1800kg |
2140mm |
4335mm |
1145mm |
6/12° |
|
3500mm |
1500kg |
1800kg |
2240mm |
4535mm |
1245mm |
6/12° |
|
3700mm |
1500kg |
1800kg |
2340mm |
4735mm |
1345mm |
6/12° |
|
4000mm |
1500kg |
1800kg |
2540mm |
5035mm |
1545mm |
6/12° |
Optional 3 Stage (Triplex) Full Free Mast
|
Lifting Height |
Loading Capacity |
Mast Lowered Height |
Free Lifting Height |
Mast Tilt Angle |
||
|
|
1.5Ton Single Tire |
1.8Ton Single Tire |
1.5-1.8Ton Fork Landing |
1.5-1.8Ton Height with Backrest |
1.5-1.8Ton Height with Backrest |
F/R |
|
3600mm |
1500kg |
1800kg |
1725mm |
4590mm |
730mm |
6/6° |
|
4000mm |
1300kg |
1800kg |
1860mm |
4990mm |
865mm |
6/6° |
|
4350mm |
1200kg/*1300kg |
1450kg |
1975mm |
5340mm |
980mm |
6/6° |
|
4500mm |
1200kg/*1250kg |
1350kg |
2025mm |
5490mm |
1030mm |
6/6° |
|
4800mm |
1100kg/*1200kg |
1250kg |
2125mm |
5790mm |
1130mm |
6/6° |
|
5000mm |
1000kg/*1100kg |
1150kg |
2195mm |
5990mm |
1200mm |
6/6° |
|
5500mm |
*1000kg |
*1000kg |
2415mm |
6490mm |
1420mm |
*3/6° |
|
6000mm |
*650kg |
*850kg |
2575mm |
6990mm |
1580mm |
*3/6° |
Remark: Not to take the largest rise in the shelf: 3T-3.5T -588mm.
Free lifting height of the shelf: 3T-3.5T +588mm.
*Means double tires
Optional Choices
Optional Configurations: windshield, 2/3 stage full free mast, double air filter, fork sleeve, double tires and extended devices, fir extinguishing muffler, solid tire, rotary work alarming light, fan, oil batch double air filter, purifying muffler, roof shield rain proof cover, LED lights, luxury seat.
Optional Attachments: side shifter, fork positioner, hinged fork, carpet boom, hook, extended fork, fork cover, lifting boom, paper roll clamp, bale clamp, highed cover, rotator, barrel clamp, loading stabilizer.
