JP Spring Collet Push On Passive Chuck
It is convenient to install the collet and the rear rotary cylinder is moved. Easy to install, higher precision, and easier operation. The push-on collet does not shift, ensuring the size of the workpiece barrel.
Product Description

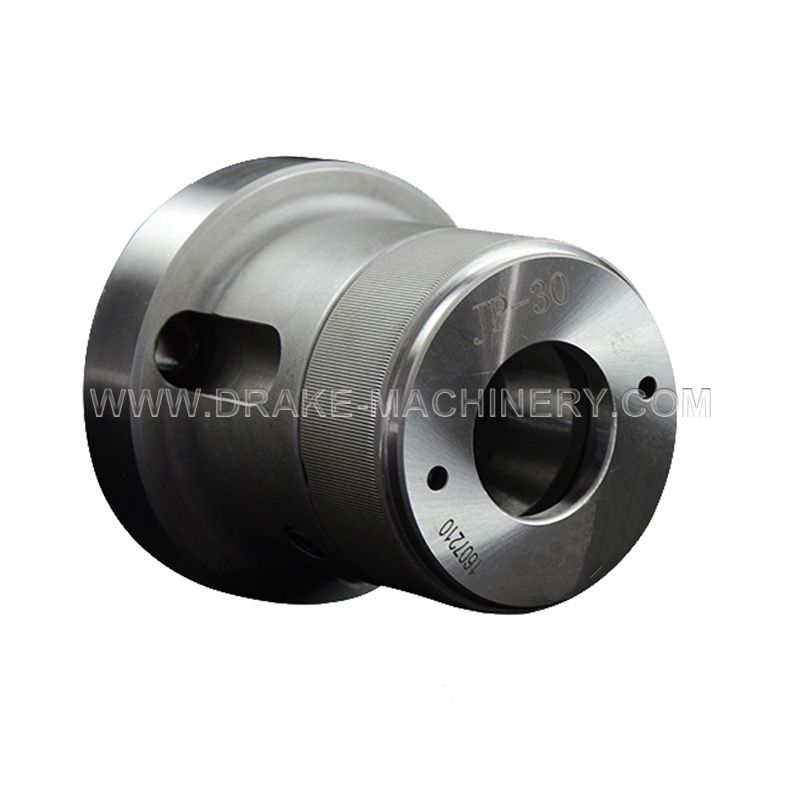

JP Spring Collet Push On Passive Chuck
Product Features:
All steel design.
Adapt to the standard spindle nose.
It is convenient to install the collet and the rear rotary cylinder is moved.
Easy to install, higher precision and easier operation.
The push-on collet does not shift, ensuring the size of the workpiece barrel.
Product Size
Product Parameters
| Model/Spec. | JP30 | JP42 | JP60 | JP80 | |||
| Installation form | A4 | Straight type | A5 | Straight type | A6 | Straight type | A8 |
| A | 110 | 120 | 155 | 155 | 170 | 185 | 220 |
| B | 82.6 | 82.6 | 104.8 | 104.8 | 133.4 | 133.4 | 171.4 |
| C | 14.25 | 0 | 14.25 | 0 | 14.25 | 0 | 14.25 |
| D | 63.513 | 110 | 82.563 | 140 | 106.375 | 170 | 139.7 |
| E | M40*2 | M40*2 | M55*1.5 | M55*1.5 | M75*2 | M75*2 | M114.2 |
| F(Max) | 30 | 30 | 42 | 42 | 60 | 60 | 80 |
| G | 85 | 85 | 100 | 100 | 130 | 130 | 176.4 |
| H | 3-M10 | 3-M10 | 4-M10 | 3-M10 | 4-M12 | 4-M12 | 4-M16 |
| I | 25 | 23 | 28 | 23 | 27 | 27 | 35 |
| L | 108 | 100 | 127 | 120.8 | 154 | 154 | 156 |
| Matching collet | 163E | 163E | 173E | 173E | 185E | 185E | 193E |
| Maximum speed（rpm/min) | 7000 | 7000 | 6000 | 6000 | 5000 | 5000 | 4000 |
★The above product data is for reference only, can be changed according to the needs of the workpiece, and can be customized according to the workpiece and processing requirements.
★ Product continuous improvement, please contact us if there are any changes to this catalogue parameter. Subject to final confirmation parameters!
