Thermosetting Injetion Molding Machine DK-2100S
Product Description
Supply Ability：50sets/month
Delivery Lead Time：15-30days
Country/Region：China
City：Hangzhou
Product Attributes
- - Place of Origin China
- - Supply Type In-Stock Items
- - Condition New
- - Related Keywords injetion machine
Description by Manufacturer

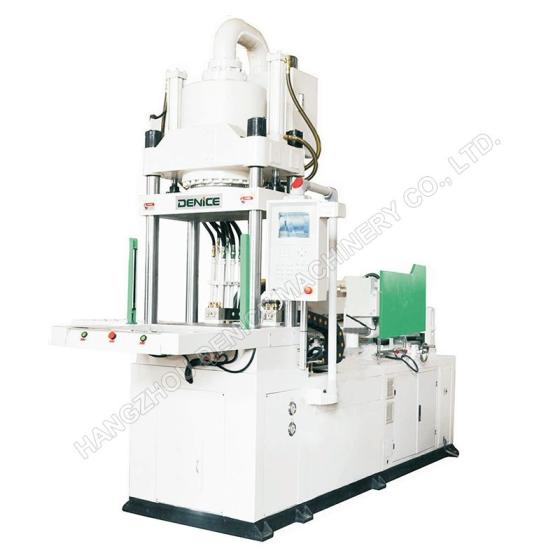

thermosetting injetion molding machine DK-2100S
· DK Series
· Vertical type four column clamping, horizontal injection, convenient to put and take out the items.
· Strong mechanical structure, high pressure, high speed, fit for large inserts plastic product molding.
· Optional: Single slide table series injection machine , increase production efficiency and safety of the operators.
· Humanization design of the height of the work plate and slide table, rotary table, let the mold install and unload more conveniently, increase production efficiency effectively. We are vertical injection moulding machine manufacturers .
| Specification | |||||
| Model | Unit | DK-1600S | |||
| ( Injection Unit ) | Screw diameter | mm | Ф45 | Ф50 | Ф55 |
|
| Maximum injection pressure | Kg/cm2 | 2291 | 1856 | 1534 |
|
| Theoretical shot volume | cm3 | 381 | 471 | 570 |
|
| Maximum shot weight | g/Oz | 340（11.9） | 420（14.8） | 509（17.9） |
|
| Injection rate | cm3/sec | 127 | 157 | 190 |
| ( Clamping Unit ) | Clamping force | ton | 160 | ||
|
| Sliding Table size | mm | 440 × 700 | ||
|
| Sliding Table Stroke | mm | 700 | ||
|
| tie bar distance | mm | 460× 600 | ||
|
| Minimum mold thickness | mm | 250（Can be customized according to customer requirements） | ||
|
| Opening stroke | mm | 350 | ||
|
| Open daylight | mm | 600（As required） | ||
|
| Nozzle Center Height | mm | 175±20 | ||
|
| Nozzle Center Distance | mm | 125 | ||
|
| Ejector force | T | 4.0（Can be customized according to customer requirements） | ||
|
| Ejector stroke | mm | 75 | ||
| ( Others ) | Pump motor power | Kw | 18.5 | ||
|
| Hydraulic system pressure | Kg/cm2 | 140 | ||
|
| Barrel heating power | Kw | 10.7 | ||
|
| Total wattage | Kw | 29.2 | ||
|
| Oiltank capacity | L | 500 | ||
|
| Machine weight (approx.) | T | 8.5 | ||
|
| Machine dimensions(approx.) | m | 4.1×1.5× 3.0 |
| Specification of | |||||
| Model | Unit | DK-2100S | |||
| ( Injection Unit ) | Screw diameter | mm | Ф50 | Ф55 | Ф60 |
|
| Maximum injection pressure | Kg/cm2 | 2288 | 1891 | 1589 |
|
| Theoretical shot volume | cm3 | 491 | 594 | 707 |
|
| Maximum shot weight | g/Oz | 490（16） | 593（19.4） | 706（23） |
|
| Injection rate | cm3/sec | 127 | 154 | 183 |
| ( Clamping Unit ) | Clamping force | ton | 210 | ||
|
| Sliding Table size | mm | 540× 800 | ||
|
| Sliding Table Stroke | mm | 750 | ||
|
| tie bar distance | mm | 560× 700 | ||
|
| Minimum mold thickness | mm | 300（Can be customized according to customer requirements） | ||
|
| Opening stroke | mm | 400 | ||
|
| Open daylight | mm | 700（As required） | ||
|
| Nozzle Center Height | mm | 175±20 | ||
|
| Nozzle Center Distance | mm | 150 | ||
|
| Ejector force | T | 6.2（Can be customized according to customer requirements） | ||
|
| Ejector stroke | mm | 120 | ||
| ( Others ) | Pump motor power | Kw | 22 | ||
|
| Hydraulic system pressure | Kg/cm2 | 140 | ||
|
| Barrel heating power | Kw | 12 | ||
|
| Total wattage | Kw | 34 | ||
|
| Oiltank capacity | L | 550 | ||
|
| Machine weight (approx.) | T | 14.9 | ||
|
| Machine dimensions(approx.) | m | 4.3×1.6× 3.3 |
