10l rotary evaporator with hand lift popular sale in US, Canada, Factory price with warranty, Contact Us for more details.
Product Description
Product Description
I. Brief introduction:

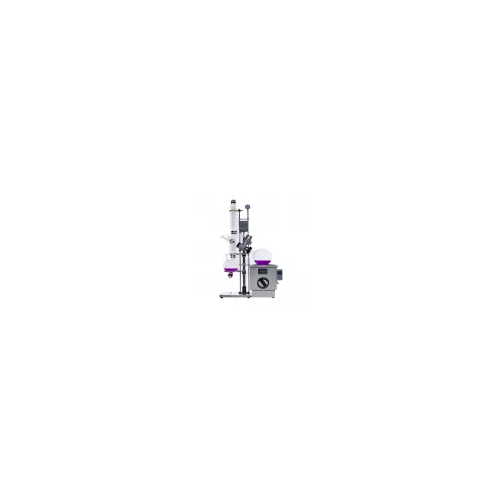

The LABSNOVA Rotary Evaporator is a common laboratory and pilot scale production equipment, which is composed of motor, distillation bottle, heating pot, condensing tube, etc. We manufacture rotary evaporator with capacity 1-2L, 3L, 5L, 10L, 20L, 30L, 50L, 100L. Support customization, provide one-stop solution.
LABSNOVA® Rotavapor WKR-10A used for purification distillation test rotates and shapes a thin film in negative pressure condition by heating, evaporates efficiently, and then condenses and recollects solvent to purify and separate. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction.
Rotavapor WKR-10A can be made into system devices with Circulating Water Vacuum Pump, Diaphragm Vacuum Pump, Circulating Chiller, Circulatiing heater.
II. 10 Good reasons to choose LABSNOVA Rotary Evaporators
1. Integrated vacuum control with double sealing with Teflon (PTFE) and fluorous rubber to ensure high vacuum degree. Optimization of the evaporation process, precious lab space saved
2. With GG-17 High Borosilicate Glass, all pieces have been designed for efficient use of surface area.
3. High-efficiency main+sencondary condenser with big cooling surface, can recover solvents efficiently and fast.
4. All valves and ports are high efficiency allowing a continuous feed of material.
5. Electric lift for precise positioning of the glassware
6. LCD displays simultaneously control rotation, lift, speed and temperature, operate visually and easily.
7. Quite operation, safety features such as over-temperature shut off and dry-run protection.
8. Heating bath with Temperature sensor control PT100
9. Excellent price, A solution for any budget.
10. Best value on the market and each one comes with fantastic customer service, and a 1 year warranty.
III. Rotary Evaporator Details
IV. Technical Data
Basic Parameter | Type | WKR-10A | WKR-20A | WKR-30A | WKR-50A | |
Glass Material | GG-17 | |||||
Shell Material | Antisepsis Plastic Spraying | |||||
Inner Container Material | stainless steel 350*220mm | stainless steel 450*250mm | stainless steel 500*280mm | stainless steel 500*220mm | ||
Baseboard Size | 474*474mm | 534*504mm | 800*574mm | 804*574mm | ||
Volume of Rotary Bottle | 10L ¢95 flange aperture | 20L ¢95 | 30L ¢125 | 50L ¢125 | ||
Volume of Recycling Bottle | 5L ¢50 flange aperture | 10L ¢60 | 20L ¢60 | 20L ¢60 | ||
Vacuum Degree | 0.098Mpa | |||||
Rotating Power | 120W | 180W | ||||
Rotating Speed | 0-110rpm | |||||
Heating Power | 3KW | 5KW | 8KW | |||
Temperature Control Range of Bath Kettle | 400β | |||||
Temperature Accuracy | ±1β | |||||
Voltage/Frequency (V/Hz) | 220V/50Hz | |||||
Up and Down Distance | 180mm | |||||
Shape Size(mm*mm*mm) | 970*480*1950 | 1170*540*2200 | 1520*620*2470 | 1520*620*2470 | ||
Package Weight (KG) | 100 | 123 | 170 | 170 | ||
FunctionAllocation | Speed Adjustment Mode | Electrodeless Speed Regulation | ||||
Rotate Speed Display Mode | Digital Display | |||||
Temperature Display Mode | Digital Display K Type Sensor | |||||
Temperature Control Mode | Smart Temperature Control | |||||
Sealing Mode | PTFE Sealing | |||||
Condenser | Vertical efficient condenser | |||||
Up and Down Mode | Manual Up and Down of Bath Kettle | |||||
Continuous Charging | 29#Standard Aperture Feeding Valve | 29# | 40# | 40# | ||
Vacuum Display Mode | Vacuum Meter | |||||
Continuous Collecting | Check valve control | |||||
Charging Mode | PTFE Charging valve, ¢50 flange aperture | ¢60 | ¢60 | ¢60 | ||
V. Rotary Evaporator Turnkey Solutions
10L Rotary Evaporator with hand lift(WKR-10A) + 10l Circulating Chiller (WKC-10/30) + Water Vacuum Pump(WKP-95B)
