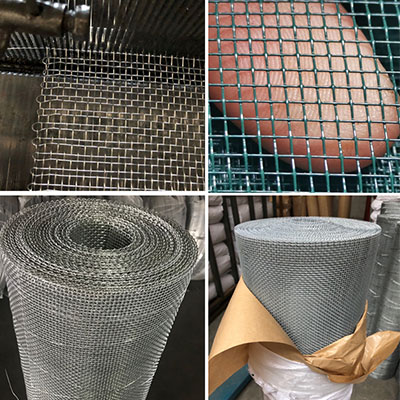

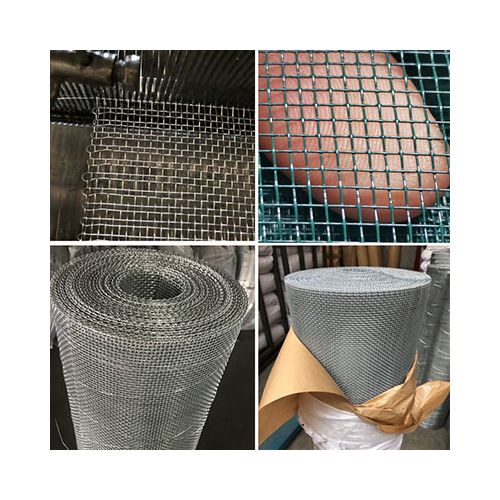

Square Wire Mesh
Product Description
Qsource ® galvanized square wire mesh is woven or welded and available in a variety of apertures, wire diameters, and mesh sizes to meet a wide range of applications, such as sieving sand and gravel, filtering liquids and gases, providing mechanical ventilation, and as a mechanical Accessory security. It can also replace wooden battens to make walls and ceilings. In addition to its versatility and attractive price, the galvanized layer also makes it more corrosion-resistant and long-lasting.
At China Qsource, we offer both welded and woven square hole meshes. Below are more parameters for your reference. If you have any questions, please feel free to contact us!
Material: Low-carbon steel wire / Galvanized wire.
Surface treatment: Hot-dipped galvanized, Electro-galvanized
Hole Shape: Square
Standard hole size: 2*2, 4*4, 5*5, 6*6, 8*8,10*10,12*12,14x14.
Width: 0.6m-1.5m.
Length: 30', 50', 100' or customized according to the customer’s requirements.
Packing: Galvanized square wire mesh is done by wrapping it with water-proof paper and then using a woven bag or carton for packaging.According to customer requirements packing equipment.
Net edge processing: Closed selvage,returned selvage,Flash,welded selvage.
We can supply the following kinds sizes:
Galvanized square mesh | |||
Mesh/inch | Wire Dia. (mm) | Aperture (mm) | |
2 | 1.6 | 11.1 | |
4 | 1.2 | 5.15 | |
5 | 1 | 4.08 | |
6 | 0.8 | 3.43 | |
8 | 0.6 | 2.57 | |
10 | 0.55 | 1.99 | |
12 | 0.5 | 1.61 | |
14 | 0.45 | 1.36 | |
16 | 0.4 | 1.19 | |
18 | 0.35 | 1.06 | |
20 | 0.3 | 0.97 | |
30 | 0.25 | 0.59 | |
40 | 0.2 | 0.44 | |
50 | 0.16 | 0.35 | |
60 | 0.15 | 0.27 | |
Available in width:0.60m-1.5m |
Galvanized square mesh, often made from steel wire coated with a layer of zinc, offers a range of benefits and has numerous practical uses across various industries and applications. Here are some of the key benefits and uses:
Benefits of Galvanized Square Mesh:
Corrosion Resistance: Galvanization creates a protective layer of zinc, making the mesh highly resistant to corrosion. This property is especially valuable in outdoor and humid environments.
Durability: Galvanized square mesh is exceptionally durable and can withstand harsh weather conditions, making it suitable for long-term applications.
Strength: The steel wire used in galvanized mesh is strong and capable of supporting heavy loads, making it ideal for structural purposes.
Cost-Effective: Galvanized mesh is an affordable option compared to some other materials, offering a cost-effective solution for various projects.
Low Maintenance: Once installed, galvanized square mesh requires minimal maintenance, reducing long-term operational costs.
Easy Installation: It is relatively easy to work with, cut, and install galvanized mesh, making it accessible for a wide range of applications.
Galvanized square mesh offers durability, corrosion resistance, and versatility, making it a valuable material for a wide range of applications in construction, agriculture, fencing, and more.
