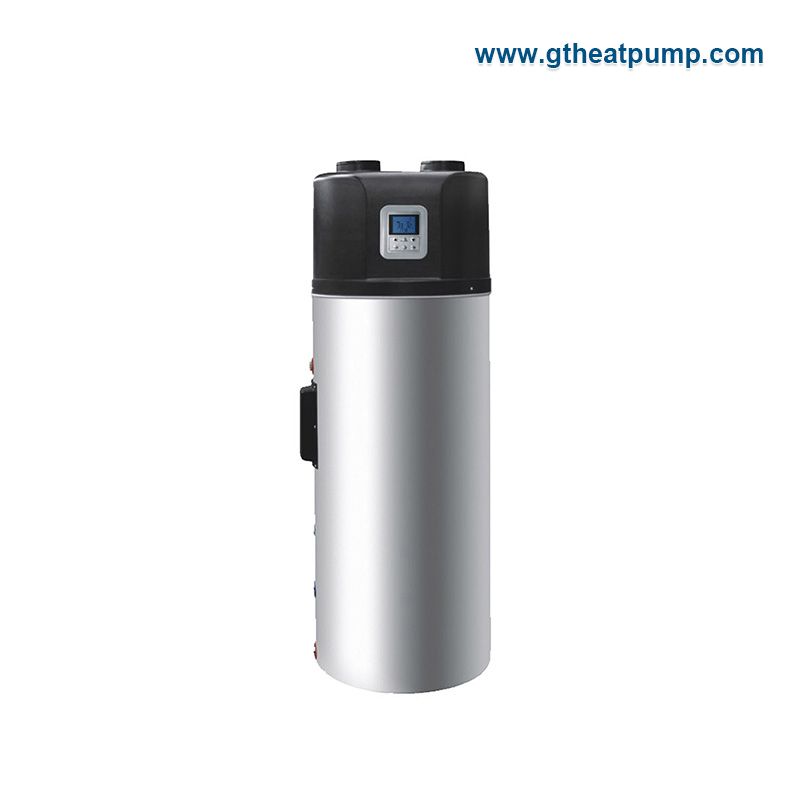

All-In-One Air Source Heat Pump Water Heater
The all-in-one heat pump is a highly efficient and cost-effective solution for both heating and cooling needs. It can provide significant energy savings compared to traditional heating and cooling systems, such as furnaces and air conditioners. In addition, it is a more environmentally friendly option, as it does not rely on fossil fuels and reduces greenhouse gas emissions.
Product Description
PRODUCT DESCRIPTION
It's an integrated hot water heat pump water heater, which is specially designed for the need of sanitary hot water, applicable for kitchen and bathroom application. It uses CFC free refrigerant R134A to absorb energy from the air, heating the water to a temperature maximum 75°C. It consumes 2/3 less electrical energy than a conventional electric water heater. It can be with water tank 200L or 300L.
All In One Heat Pump TECHNICAL DATA:
| Model number | Horizontal discharge | Vertical discharge | |||
| GT-SKR010C200-HC | GT-SKR010C300-HC | GT-SKR010C200-VC | GT-SKR010C300-VC | ||
| Heating at air temperature DB/WB=20/15℃, initial/final water temperature=15/ 55 ℃ | |||||
| Heating capacity | kW | 3 | 3 | 3 | 3 |
| Power input | kW | 0.8 | 0.8 | 0.81 | 0.81 |
| COP | W/W | 3.8 | 3.8 | 3.7 | 3.7 |
| Water tank capacity | L | 200 | 300 | 200 | 300 |
| Power supply | V/Ph/Hz | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 | 220-240/1/50 |
| Compressor type | N/A | Rotary | Rotary | Rotary | Rotary |
| Compressor quantity | PC | 1 | 1 | 1 | 1 |
| Fan type | N/A | Axial | Axial | Centrifugal | Centrifugal |
| Fan direction | N/A | Horizontal | Horizontal | Vertical | Vertical |
| Fan quantity | PC | 1 | 1 | 1 | 1 |
| Water connection | Inch | 3/4 | 3/4 | 3/4 | 3/4 |
| Refrigerant | N/A | R134A | R134A | R134A | R134A |
| Refrigerant regulation | N/A | Electronic expansion valve | |||
| Intelligent Defrosting | N/A | Auto-defrosting | |||
| Sound level | dB( A) | 52 | 52 | 52 | 52 |
| Max water temperature | ℃ | 60 | 60 | 60 | 60 |
| Outdoor operating temperature | ℃ | Min: -10 / Max: + 43 | |||
| Degree of protection | N/A | IPX4 | IPX4 | IPX0 | IPX0 |
| Net weight | kg | 87 | 102 | 92 | 107 |
| Diameter | mm | Φ550 | Φ650 | Φ550 | Φ650 |
| Height | mm | 1870 | 1950 | 1910 | 1990 |
All In One Heat Pump FEATURES:
● TYPE OF COIL HEAT EXCHANGER
It's with external warping coil heat exchanger. Instead of being immersed in the tank water, the copper pipe heat exchanger is wrapped around the outer wall of the inner stainless steel water tank, which means no direct contact with potable water.
This design ensures no potential risk of contamination to the tank water due to corrosion or refrigerant leakage, and therefore guarantees the water quality.
● DUPLEX STAINLESS STEEL WATER TANK
Duplex stainless steel water tank is with highly effective resistance against corrosion.
● EASY INSTALLATION
It's easily installed by a certified plumber or electrician, no need a specialist.
