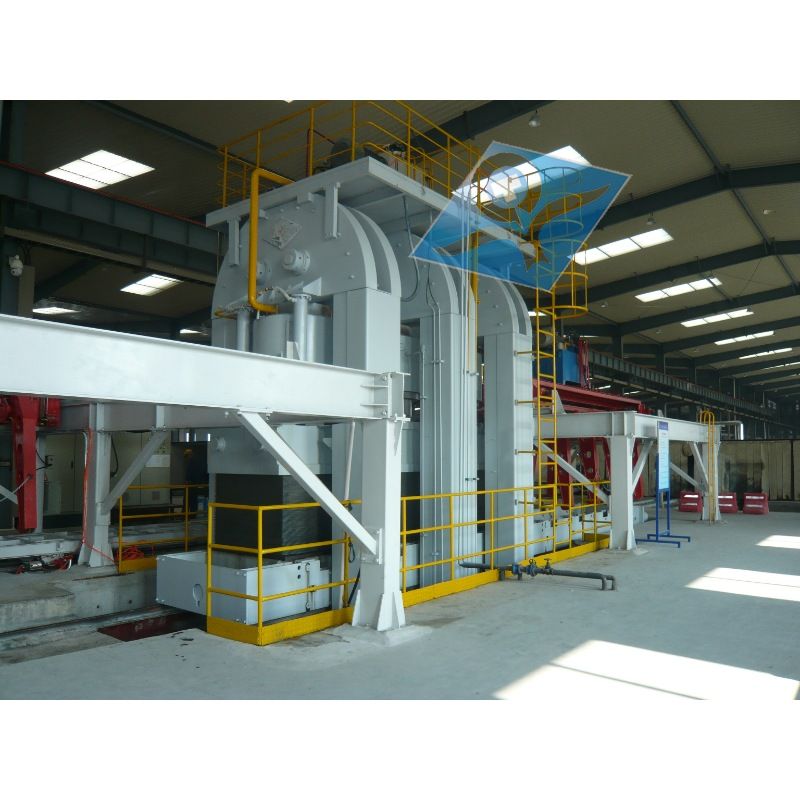

4000t~14000t Hydraulic Presses

4000t~14000t Hydraulic Presses

Product Description

The presses are used for the pressing of cement fiber, calcium silicate, fibrous plaster boards, and also for the hot forming of wooden, bamboo chipboard, and saw powder. By draining away the water from boards, boards’ strength are improved.
The cylinder could be designed as top loading and bottom loading type according to user’s requirement.

4000t~14000t Hydraulic Presses Features and Characteristics:

Frames and cylinders are steel wire winding structure ensure high loading capacity and longer service time.

The compact structure of Fiber Cement Boards Forming Presses require less space occupation and transportation cost.

Variable frequency technology realizes adjustable pressing speed, ensuring shorter working time and higher stack quality.

PLC realizes controlling and monitoring of the press.

Made to order Products

Model

Capacity

(MN)

Working table

(m)

Stroke

(mm)

Maximum daylight

(mm)

Working speed

(mm/s)

Motor   power

(KW)

TJ50

50

1.3×2.6

400

1100~1400

0.05-0.2

11

TJ70

70

1.3×2.6(3.2)

400

1100~1400

0.05-0.2

15

TJ90

90

1.3×3.2

400

1100~1400

0.05-0.2

22

TJ120

120

1.3×3.2

400

1100~1400

0.05-0.2

30

TJ140

140

1.3*5.2

400

1100~1400

0.05-0.2

37
