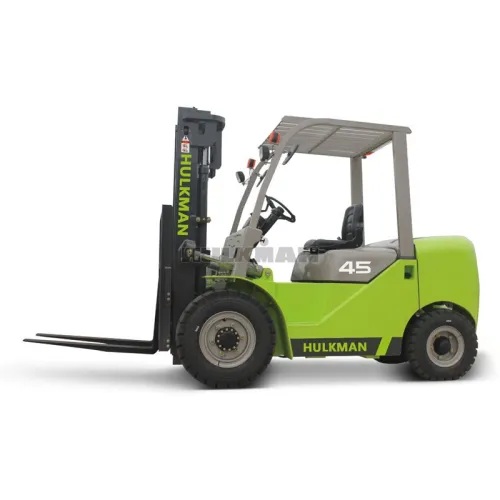

4 Ton 4.5Ton Diesel Forklift

Both the 4 Ton and 4.5 Ton Diesel Forklifts are equipped with powerful engines that provide the necessary strength to lift and transport heavy loads with ease. The engines' efficiency ensures optimal fuel consumption and reduced emissions.

Product Description

Product Description

Standard Fork Length: 1070mm

Standard Air Tires

LED Warning Light

Wide View Rear Mirror

Lights Protection Steel Structure

Water Proof Overhead Guard

OEM Brand Service

Optional Attachments: Fork Side Shifter, Paper Roll Clamp, Bale Clamp, Rotator etc.

4.0Ton 4.5Ton Diesel Forklift

HULKMAN 4T 4.5T diesel forklift reinforced mast with a wide view design improves forklift operation efficiency and safety;



4.0Ton 4.5Ton Diesel Forklift



HULKMAN 4Ton and 4.5Ton diesel forklift standard engine is China best Quanchai brand 4C5 model, which is with large torque and capacity, is powerful, and can meet different operation demands, is energy-efficient and environmentally. Optional Japan Original ISUZU brand 4JG2PE model engine (for Mini 4Ton diesel forklift) and Mitsubishi brand S6S-228 model engine.



4.0Ton 4.5Ton Diesel Forklift



HULKMAN 4Ton and 4.5Ton diesel forklift standard engine is China best Quanchai brand 4C5 model, which is with large torque and capacity, is powerful, and can meet different operation demands, is energy-efficient and environmentally. Optional Japan Original ISUZU brand 4JG2PE model engine (for Mini 4Ton diesel forklift) and Mitsubishi brand S6S-228 model engine.

4.0Ton 4.5Ton Diesel Forklift



HULKMAN forklift lifting system is equipped with up and down buffer cylinders, which reduce shock and vibration efficiency. Adding the above front double tires can make the heavy duty 4ton 4.5ton forklift lifting height reach higher 7000mm.



4.0Ton 4.5Ton Diesel Forklift



The 4ton and 5ton HULKMAN forklift are nice in appearance with streamline design. They work stably with high efficiency and good grade ability and can be operated in bad working conditions.



Integral overhead guard, disposable stamping ceiling, equipped with five transparent plastic cover, with good lighting and rain protective features.

4.0Ton 4.5Ton Diesel Forklift



Specification Parameters



Features



FD40

FD45

Power

/

Diesel Engine

Diesel Engine

Rated Capacity

kg

4000

4500

Center of Load

J(mm)

500

500

Standard Lifting Height

h1 (mm)

3000

3000

Free Lifting Height

h3 (mm)

146

146

Fork Size LxWxH

L5xWxT(mm)

1070x150x50

1070x150x50

Mast Tilting Angle Forward/Backward

°

6/12

6/12

Min. Turning Radius

R1(mm)

2780

2780

Min. Right Angle Stacking Aisle Width

Ra(mm)

4815

4815

Min. Ground Clearance (Mast)

m(mm)

160

160

Overhead Guard Height

h4(mm)

2350

2350

Front Overhang

L3(mm)

565

565

Rear Overhang

L4(mm)

540

540

Performance







Max. Traveling Speed (Loaded)

km/h

18

18

Max. Lifting Speed (Loaded/Empty)

mm/s

410/450

410/450

Max. Traction/Gradeability

kN/%

22/20

22/20

Size







Overall Length (with fork)

L1(mm)

4175

4175

Overall Width

W1(mm)

1490

1490

Mast Lowered Height

h2(mm)

2355

2355

Mast Extended Height

mm

4257

4257

Chassis







Tire (Front)

/

300-15-18PR

300-15-18PR

Tire (Rear)

/

7.00-12-12PR

7.00-12-12PR

Wheelbase

L2(mm)

2000

2000

Tread Width (Front/Rear)

S/P(mm)

1180/1190

1180/1190

Curb Weight (None-Load)

kg

6090

6380

Engine







Battery (Voltage/Capacity)

V/Ah

(12/90)x2

(12/90)x2

Engine Model

/

Mitsubishi S6S

Mitsubishi S6S

Engine Rated Power

kw/r.p.m

52/2300

52/2300

Engine Rated Torque

kw/r.p.m

248/1700

248/1700

Engine Cylinder Amount

/

4

4

Engine Bore x Stroke

mm

94x120

94x120

Engine Displacement

L

4.966

4.966

Fuel Tank

L

100

100

Transmission

/

Electric Hydraulic

Electric Hydraulic

Working Pressure

Mpa

18.5

18.5



Remark: Below HULKMAN 4Ton 4.5Ton Diesel Forklift 2D Graph for further reference.

4.0Ton 4.5Ton Diesel Forklift





Customized Lifting Height and Loading Capacity

Standard 2 Stage (Duplex) Mast / Optional 2 Stage (Duplex) Full Free Mast



Lifting Height

Loading Capacity

Mast Lowered Height

Free Lifting Height

Mast Tilt Angle



4Ton

4.5Ton

Fork Landing

Height with Backrest

4T-4.5Ton

F/R

3000mm

4000kg

4500kg

2355#2395mm

4257#4266mm

146#1178mm

6/12°

3500mm

4000kg

4500kg

2605#2645mm

4757#4766mm

146#1428mm

6/12°

4000mm

3650kg

4150kg

2905#2945mm

5257#5266mm

146#1728mm

6/12°

4500mm

3550kg

4050kg

3155#3195mm

5757#5766mm

146#1978mm

6/12°

5000mm

3450kg

3900kg

3405#3445mm

6257#6266mm

146#2228mm

6/6°

5500mm

3250kg

3750kg

3705#3745mm

6757#6766mm

146#2528mm

3/6°

6000mm

3000kg

3500kg

3955#3995mm

7257#7266mm

146#2778mm

3/6°



Remark: # means 2 stage (duplex) full free mast specification;

Free lifting height without bracket: standard 2 stage (duplex) mast -420mm;

Optional 2 stage (duplex) full free mast +376mm.



Optional 3 Stage (Triplex) Full Free Mast



Lifting Height

Loading Capacity

Mast Lowered Height

Free Lifting Height

Mast Tilt Angle



4Ton

4.5Ton

Fork Landing

Height with Backrest

4T-4.5Ton

F/R

4000mm

4000kg

4500kg

2230mm

5257mm

1013mm

6/6°

4500mm

3650*4000kg

4150*4500kg

2395mm

5757mm

1178mm

6/6°

5000mm

3200*3500kg

3700*4000kg

2560mm

6257mm

1343mm

6/6°

5500mm

2700*3400kg

3200*3900kg

2725mm

6757mm

1513mm

3/6°

6000mm

2400*3000kg

2400*3500kg

2995mm

7257mm

1778mm

3/6°



Remark: *Means double front tires;

Lifting height without bracket +377mm;

Free lifting height without bracket -377mm.



4.0Ton 4.5Ton Diesel Forklift



Forklift Optional Choices

Forklift Optional Configurations: windshield, 2/3 stage full free mast, double air filter, fork sleeve, double tires and extended devices, fir extinguishing muffler, solid tire, rotary work alarming light, fan, oil batch double air filter, purifying muffler, roof shield rain proof cover, LED lights, luxury seat.



4.0Ton 4.5Ton Diesel Forklift



Forklift Optional Attachments: carton clamp, load stabilizer, hinged fork/hinged bucket, load pusher, widen fork carriage, paper roll clamp, carpet boom, lengthen fork, block clamp, crane jib, lengthen fork extension, multi-use drum bucket, hook, fork cover, lifting boom, paper roll clamp, bale clamp, rotator, barrel clamp.
