VH Series V Model Mixer
Product Description
Specifications
Description

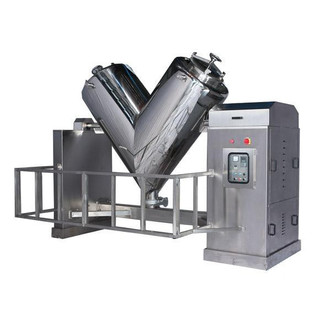

VH Series V Model Mixer
Description:
The mixing barrel structure is unique. The mixing efficiency is high. There is no dead corner. The barrel is made of stainless steel and its internal and external walls are polished. The outside appearance is beautiful. The mixing is uniform, with wide application. The mixer is in conformity with the requirements of "GMP". The equipment can be equipped with vacuum loading system according to the customers' need.
Technical Parameters:
| Type | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 |
| Production capacity (kg/h) | 72 | 120 | 200 | 400 | 600 | 800 |
| Model of vacuum pump | W2 | W2 | W2 | W3 | W3 | W3 |
| Time of feeding (min) | 3-5 | 3-5 | 4-6 | 6-9 | 6-10 | 8-12 |
| Mixing time (min) | 4-8 | 6-10 | 6-10 | 6-10 | 6-10 | 6-10 |
| Total volume (m3) | 0.18 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 |
| Stirring speed (rpm) | 12 | 12 | 12 | 12 | 12 | 12 |
| Power of motor (Kw) | 1.1 | 1.1 | 2.2 | 4 | 4 | 5 |
| Rotating height (mm) | 1580 | 1760 | 2400 | 2840 | 3010 | 3240 |
| Weight (kg) | 280 | 320 | 550 | 950 | 1020 | 1600 |
| Type | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Production capacity (kg/h) | 1000 | 1200 | 1600 | 2000 | 2400 |
| Model of vacuum pump | W3 | W4 | W4 | W4 | W4 |
| Time of feeding (min) | 8-13 | 8-15 | 10-15 | 15-20 | 18-25 |
| Mxing time (min) | 6-10 | 8-12 | 8-12 | 8-12 | 8-12 |
| Total volume (m3) | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 |
| Stirring speed (rpm) | 12 | 10 | 10 | 10 | 10 |
| Power of motor (Kw) | 7.5 | 7.5 | 10 | 15 | 18.5 |
| Rotating height (mm) | 3680 | 3700 | 4350 | 4800 | 5300 |
| Weight (kg) | 2040 | 2300 | 2800 | 3250 | 3850 |
Terms
| FOB Price: | |
| Minimum Order: | 1 Set |
| Port: | Shanghai |
| Payment Terms: | T/T |
