Marine Hydraulic Telescopic Boom Crane
Product Description
Min Order Quantity：1 Set
Port：shanghai
Country/Region：China
City：Chongqing
Product Attributes
- - Model Number CCME
- - Place of Origin China
- - Supply Type OEM Service
- - Condition New
- - Application marine deck
- - Feature marine crane
- - Max. Lifting Height 25m
- - Max. Lifting Load optional
- - Rated Lifting Moment 3.2t
- - Rated Loading Capacity 3.2t
- - Span 4.5m
- - Related Keywords Marine crane, Deck crane
Description by Manufacturer

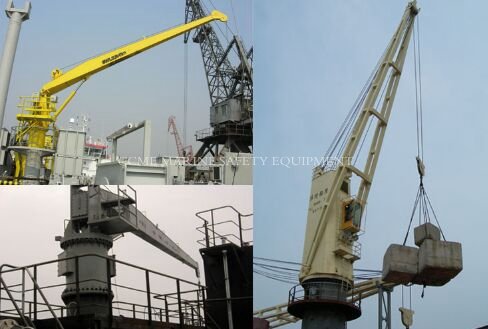

Hydraulic Marine Telescopic Boom Crane with CCS ABS BV certificate
| Hydraulic Component List | ||
| Component | Brand | Origin |
| Multitandem valve | Nord Danfoss HBS | Sweden Danmark Italy |
| Oil pump | Leduc PZB OMFB | France Italy Italy |
| Balance valve | HBS VALLA | Italy Italy |
| High pressure hose | Eaton Manuli | USA Italy |
| Sealing | Trelleborg | Germany |
| Electric motor | ABB Siemens | China |
Technical Data of 3.2t 8.1m Telescopic Boom Marine Crane:
| SWL | 3.2t |
| Max.lifting capacity | 6.2tm |
| Max. Work Outreach | 8.1M |
| Working Pressure | 200Pa |
| Oil Pump Capacity | 25L/M |
| Oil Tank Volume | 40L |
| Rotation Angle | 400 degree |
| Dead Weight | 1316kg |
Type telescopic boom ship crane
1: Type TBS cranes are all electrichydraulic drived.
2: The standard capacities are from 1t to 60t with outreaches up to 30m.
3: The dimensions are quite compact and the cranes are easy to install.
4: The cylinder rods are chromium plated.
5: The construction and the materials are all used to protect the crane against all influences from a rough sea environment.
6: As standard, crane is controlled from a platform above the slewing ring.
7: A portable electric remote control unit is available as an option.
8: All crane movements are are smooth and fast, with stepless speed control.
Price
- Price US$ 5600 / Set
