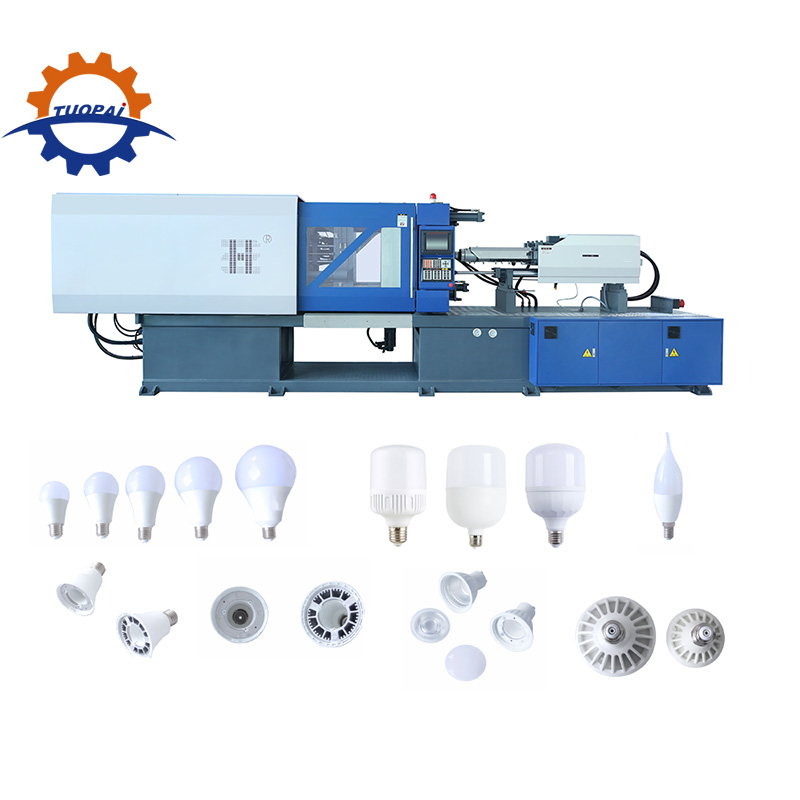

LED Bulb Cover Injection Blow Molding Machine
LED Bulb Cover Injection Blow Molding Machine
Product Description
The LED bulb housing machine comes with two rotating mould systems for good finish products such as: LED bulb covers, bulb bases. Tepai plastic injection molding machine adopts automatic production and blow molding at one time, which improves production efficiency and saves labor costs.
LED Bulb Cover Injection Blow Molding Machine Parameter
|
Technical Parameter |
Unit |
ZH-338T |
|||
|
|
A |
B |
C |
||
|
Injection Unit |
Screw Diameter |
mm |
40 |
45 |
50 |
|
Theoretical Injection Volume |
OZ |
9.6 |
12.1 |
15 |
|
|
Injection Energy |
g |
219 |
270 |
330 |
|
|
Injection Pressure |
Mpa |
242 |
188 |
150 |
|
|
Screw Speed |
rpm |
0-180 |
|||
|
Clamping Unit |
Clamping Force |
KN |
1680 |
||
|
Mode-shifting Trip |
mm |
400 |
|||
|
Space Between Ti-bars |
mm |
670*670 |
|||
|
Max.mould Height |
mm |
670 |
|||
|
Min.Mold Thickness |
mm |
270 |
|||
|
Top Trip |
mm |
170 |
|||
|
Ejector Force |
KN |
90 |
|||
|
Thimble Root Number |
PC |
13 |
|||
|
Others |
Maximum Oil Pump Pressure |
Mpa |
16 |
||
|
Pump Motor Power |
KW |
37 |
|||
|
Electrothermal Power |
KW |
19 |
|||
|
Machine Dimesions(LxWxH) |
M |
7.2*2.0*2.4 |
|||
|
Machine Weight |
T |
13.8 |
|||
LED Bulb Housing Machine Applications
LED bulbs are the most efficient lighting sources with long life, flexible design, high energy efficiency, zero UV emissions and low voltage operation to meet market demands for indoor and outdoor lighting. Since the average power consumption of LED bulbs is lower than that of fluorescent and incandescent lamps, there is a huge potential for LED bulb manufacturing.
Tepai rotary injection molding machine has the advantages of low noise, low energy consumption, high efficiency and long life, and the high-speed injection device meets different industrial uses. Moreover, as a professional plastic injection molding machine supplier, Tepai can provide LED bulb housing making solution according to your special requirements!
One step led lamp bulb cover injection blow molding machine is designed for 3w - 5w - 7w - 9w - 12w - 15w - 18w - 22w - 25w led bulb with E27/B22 base and 20w - 30w - 40w - 50w - 60w - 70w - 80w - 90w - 100w - 110w - 120w T Type led
