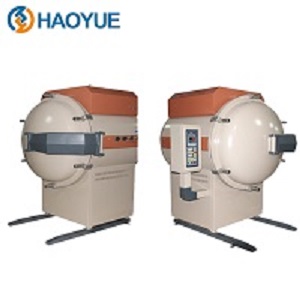

Vacuum Atmosphere Sintering Furnace

Shanghai Haoyue Technology Co., Ltd. is a high-tech enterprise integrating R & D, production and sales of electric furnace.

Product Description

This atmosphere furnace is heated by silicon molybdenum rod,the highest temperature can reach 1200 ℃/1400℃/1600℃/1700℃/1750℃/1800℃, specially designed for sintering and heat treatment of materials in inert atmosphere and oxidizing atmosphere, it’s suitable for various heat treatment of special ceramics, electronic ceramics, structural ceramics, functional ceramics, piezoelectric ceramics, magnetic materials, powder metallurgy, rare earth materials, PTC materials, trichromatic phosphors, polishing powders, metals and other materials. The equipment is beautiful in appearance, reasonable in structure and easy to use. It is an ideal product for powder sintering, ceramic sintering, high temperature experiment and quality inspection in universities, scientific research institutes and industrial and mining enterprise

（1)Integrated hot press sintering and vacuum sintering in one furnace

（2)Horizontal design with front-open chamber ensures easy loading and removal of mold.

（3)Vacuum degree (10^-3 Pa range) and Inert gas (Ar, He, N2) operation.

（4)Fully automatic operation by PLC and touchscreen HMI.

（5)Simultaneous temperature and pressure control.

（6)Temperature control system based on thermocouple and infrared thermometer.

（7)Safety alarm system for over-pressure and over-temperature.

Specifications

No	Type	Vacuum Degree（Pa）	Passable gas	Capacity（L）	working zone（mm）W×H×L	Loading method	Note
Amini	AHSa-10/10/10	10KPa/10Pa/10-2Pa	N2/Ar	1	100×100×100	SL	Laboratory
A1	AHSa-15/15/15	10KPa/10Pa/10-2Pa	N2/Ar	3	150×150×150	SL	Laboratory
A2	AHSa-20/20/30	10KPa/10Pa/10-2Pa	N2/Ar	12	200×200×300	SL	Laboratory
A3	AHSa-25/25/30	10KPa/10Pa/10-2Pa	N2/Ar	19	250×250×300	SL	Laboratory
A4	AHSa-30/30/40	10KPa/10Pa/10-2Pa	N2/Ar	36	300×300×400	SL	Laboratory
A5	AHSa-45/45/45	10KPa/10Pa/10-2Pa	N2/Ar	91	450×450×450	SL	Industrial
A6	AHSa-60/60/60	10KPa/10Pa/10-2Pa	N2/Ar	216	600×600×600	SL	Industrial

Application

Powder synthesis and sintering

Ceramics sintering

High-temperature Test

Quality Test

Heat Treatment of Metals
