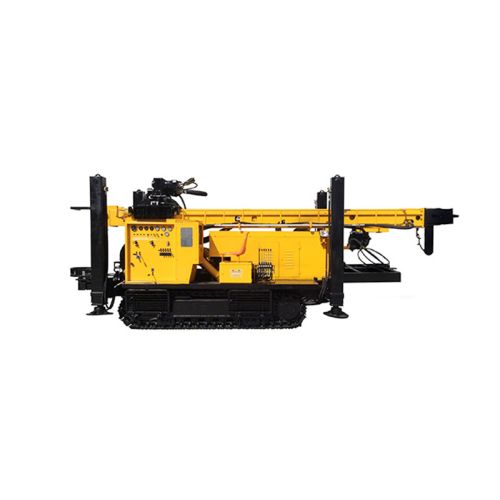

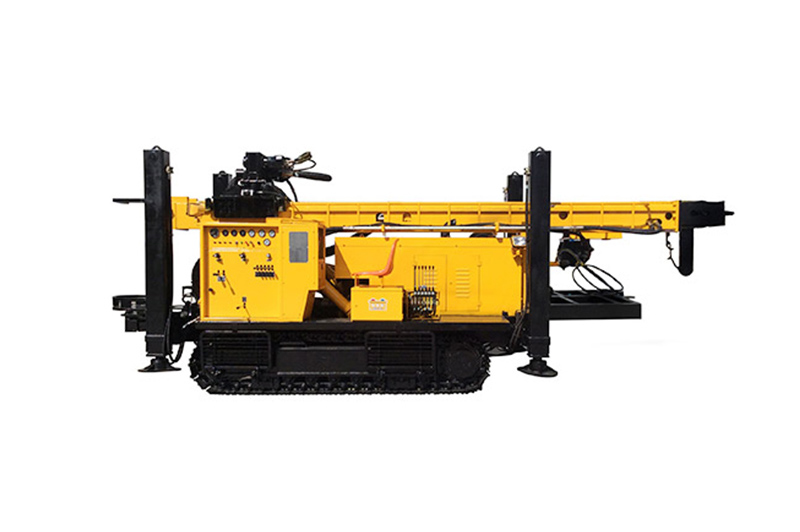

JKS500C Crawler Mounted Versatile Well Drilling Rig
Crawler Mounted Versatile Well Drilling Rig
Product Description
JKS500C crawler mounted versatile well drilling rig is a new, efficient and multifunctional drill rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, grouting holes of cofferdam, dam and reinforced base, as well as long hole drilling of open pit, anchor reinforcement and defense project.
The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.
| Rated Drilling Depth | 500m |
| Drilling Diameter | 105-350mm |
| Working Air Pressure | 1.05-4.5MPa |
| Air Consumption | 16-60m³/min |
| Drill Pipe Diameter | φ89mm, φ102mm, φ114mm |
| Max. Lifting Force | 25t |
| Axial Pressure | ±10t |
| Lifting Force of Small Winch | 1.5t |
| Lifting Force of Main Winch | 4t (optional) |
| Rotation Torque | 9500N.m |
| Rotation Rate | 0-40/80rpm |
| Feeding Force | 3800mm |
| Lifting Rate | 0-18m/min |
| Grade Ability | 15° |
| Hydraulic Generator | 24kW/380V (optional) |
| Foam Pump | 20L/min (optional) |
| Transport Dimension (L x W x H) | 6800mm x 2250mm x 2650mm |
| Working Dimension (L x W x H) | 6800mm x 3250mm x 7500mm |
| Weight | 13t |
