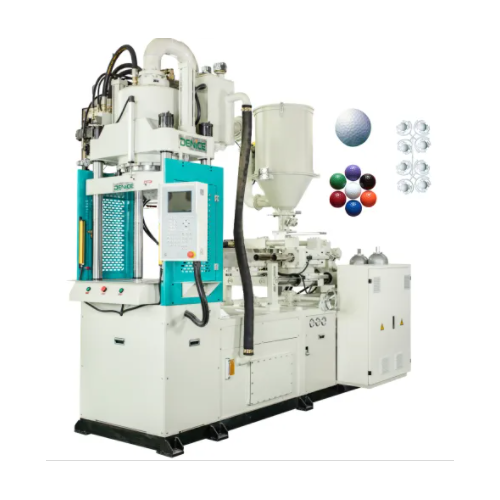

golf ball making machine DK-1600

Injection molding machine is the main molding equipment for making thermoplastic or thermosetting plastics into plastic products of various shapes using plastic molding molds. The injection molding machine heats the plastic and applies high pressure to the molten plastic to make it eject and fill the mold cavity.

Product Description

Golf Ball Making Machine

Injection molding machine is the main molding equipment for making thermoplastic or thermosetting plastics into plastic products of various shapes using plastic molding molds. The injection molding machine heats the plastic and applies high pressure to the molten plastic to make it eject and fill the mold cavity.

We care more about customer success, user success and value achievement. Choose our golf ball making machine, we will provide you with the most comprehensive service! If you want to know more about DK Series Plastic Injection Molding Machine, please feel free to contact us.



Features

·Clamping force : 40Ton-550Ton

·Injection weight  : 151-2153g

·Vertical clamping and horizontal injection design

·DK Angle type series,able to contain large-scale mold with longer opening stroke and large injection weight.Applicable to large-scale products with insert molding process.



Advantages

1. Golf ball making machine is produced by advanced technology, with stable performance and long service life.

2. Quick mold closing, slow and low pressure mold locking action devices can ensure the safe use of the mold and prolong the service life of the mold.

3. Quick mold opening can effectively improve the production efficiency of your company.

4. Golf ball making machin is equipped with electrical protective devices to ensure that there is no non-standard action, the maintenance equipment is intact, and the safety of operators is ensured.

5. Technical support: In terms of golf ball development process technology, the ejection system is equipped with the characteristics of high ejection rate and high accuracy.



We Are your Most Trusted Golf Ball Making Machine Supplier!

As a professional golf ball making machine supplier, Hangzhou DENICE Machinery Co., Ltd. is the one of professional vertical injection moulding machine manufacturers in China. We mainly provide Vertical Injection Molding Machine to our customers. We hope to conduct more comprehensive business with customers from different countries in the future. We can help you succeed with competitive pricing and high-quality products.

Our products are very popular, if you are interested in our products, please contact us as soon as possible.



Specification

Specification
Model           Unit DK-1600
( Injection Unit ) Screw diameter mm Ф45 Ф50 Ф55
  Maximum injection  pressure Kg/cm2 2291 1856 1534
  Theoretical shot volume cm3 381 471 570
  Maximum shot weight g/Oz 340(11.9) 420(14.8) 509(17.9)
  Injection rate cm3/sec 127 157 190
(Clamping   Unit) Clamping force ton 160
  tie bar distance mm 460× 600
  Minimum mold thickness mm 250(Can be customized according to customer requirements)
  Opening stroke mm 350
  Open daylight mm 600(As required)
  Nozzle Center Height mm 175±20
  Nozzle Center Distance mm 125
  Ejector force T 4.0
  Ejector stroke mm 75
(Others) Pump motor power Kw 18.5
  Hydraulic system pressure Kg/cm2 140
  Barrel heating power Kw 10.7
  Total wattage Kw 29.2
  Oiltank capacity L 500
  Machine weight  (approx.)     T 8.2
  Machine dimensions(approx.) m 3.6×1.5× 3.0



Specification
Model           Unit DK-2100
( Injection Unit ) Screw diameter mm Ф50 Ф55 Ф60
  Maximum injection  pressure Kg/cm2 2288 1891 1589
  Theoretical shot volume cm3 491 594 707
  Maximum shot weight g/Oz 490(16) 593(19.4) 706(23)
  Injection rate cm3/sec 127 154 183
(Clamping   Unit) Clamping force ton 210
  tie bar distance mm 560× 700
  Minimum mold thickness mm 300(Can be customized according to customer requirements)
  Opening stroke mm 400
  Open daylight mm 700(As required)
  Nozzle Center Height mm 175±20
  Nozzle Center Distance mm 150
  Ejector force T 6.2
  Ejector stroke mm 120
(Others) Pump motor power Kw 22
  Hydraulic system pressure Kg/cm2 140
  Barrel heating power Kw 12
  Total wattage Kw 34
  Oiltank capacity L 550
  Machine weight  (approx.)     T 14.2
  Machine dimensions(approx.) m 3.8×1.5× 3.3



pecification
Model           Unit DK-2500
( Injection Unit ) Screw diameter mm Ф50 Ф55 Ф60
  Maximum injection  pressure Kg/cm2 2288 1891 1589
  Theoretical shot volume cm3 491 594 707
  Maximum shot weight g/Oz 490(16) 593(19.4) 706(23)
  Injection rate cm3/sec 127 154 183
(Clamping   Unit) Clamping force ton 250
  tie bar distance mm 600× 735
  Minimum mold thickness mm 300(Can be customized according to customer requirements)
  Opening stroke mm 450
  Open daylight mm 750(As required)
  Nozzle Center Height mm 175±20
  Nozzle Center Distance mm 150
  Ejector force T 6.2
  Ejector stroke mm 120
(Others) Pump motor power Kw 30
  Hydraulic system pressure Kg/cm2 140
  Barrel heating power Kw 12
  Total wattage Kw 42
  Oiltank capacity L 600
  Machine weight  (approx.)     T 18.5
  Machine dimensions(approx.) m 4.3×1.6× 3.6



Specification
Model           Unit DK-3000
( Injection Unit ) Screw diameter mm Ф55 Ф60 Ф65
  Maximum injection  pressure Kg/cm2 2036 1711 1458
  Theoretical shot volume cm3 618 735 863
  Maximum shot weight g/Oz 571(20.1) 679(24) 797(28.1)
  Injection rate cm3/sec 207 246 289
(Clamping   Unit) Clamping force ton 300
  tie bar distance mm 620× 780
  Minimum mold thickness mm 300(Can be customized according to customer requirements)
  Opening stroke mm 450
  Open daylight mm 750(As required)
  Nozzle Center Height mm 175±20
  Nozzle Center Distance mm 150
  Ejector force T 6.2
  Ejector stroke mm 120
(Others) Pump motor power Kw 30
  Hydraulic system pressure Kg/cm2 140
  Barrel heating power Kw 17.5
  Total wattage Kw 47.5
  Oiltank capacity L 700
  Machine weight  (approx.)     T 19.7
  Machine dimensions(approx.) m 4.5×1.7× 3.7



Specification
Model           Unit DK-3500
( Injection Unit ) Screw diameter mm Ф60 Ф65 Ф70
  Maximum injection  pressure Kg/cm2 1866 1590 1370
  Theoretical shot volume cm3 791 928 1077
  Maximum shot weight g/Oz 705(24.8) 829(29.2) 961(33.8)
  Injection rate cm3/sec 158 186 215
(Clamping   Unit) Clamping force ton 350
  tie bar distance mm 650×830
  Minimum mold thickness mm 300(Can be customized according to customer requirements)
  Opening stroke mm 450
  Open daylight mm 750(As required)
  Nozzle Center Height mm 200±20
  Nozzle Center Distance mm 150
  Ejector force T 6.2
  Ejector stroke mm 120
(Others) Pump motor power Kw 37
  Hydraulic system pressure Kg/cm2 140
  Barrel heating power Kw 19.8
  Total wattage Kw 56.8
  Oiltank capacity L 800
  Machine weight  (approx.)     T 23.5
  Machine dimensions(approx.) m 4.6×1.8× 3.8



Specification
Model           Unit DK-4500
( Injection Unit ) Screw diameter mm Ф65 Ф70 Ф75
  Maximum injection  pressure Kg/cm2 1968 1697 1478
  Theoretical shot volume cm3 1062 1232 1414
  Maximum shot weight g/Oz 948(33.4) 1099(38.8) 1262(44.5)
  Injection rate cm3/sec 289 335 385
(Clamping   Unit) Clamping force ton 450
  tie bar distance mm 680×900
  Minimum mold thickness mm 350(Can be customized according to customer requirements)
  Opening stroke mm 600
  Open daylight mm 950(As required)
  Nozzle Center Height mm 200±20
  Nozzle Center Distance mm 200
  Ejector force T 7
  Ejector stroke mm 150
(Others) Pump motor power Kw 41
  Hydraulic system pressure Kg/cm2 140
  Barrel heating power Kw 19.8
  Total wattage Kw 60.8
  Oiltank capacity L 900
  Machine weight  (approx.)     T 32
  Machine dimensions(approx.) m 4.6×1.8× 4.2



Specification
Model           Unit DK-5500
( Injection Unit ) Screw diameter mm Ф70 Ф75 Ф80
  Maximum injection  pressure Kg/cm2 2057 1792 1575
  Theoretical shot volume cm3 1847 2121 2413
  Maximum shot weight g/Oz 1648(58) 1893(66.8) 2153(76)
  Injection rate cm3/sec 323 371 422
(Clamping   Unit) Clamping force ton 550
  tie bar distance mm 750×1000
  Minimum mold thickness mm 450(Can be customized according to customer requirements)
  Opening stroke mm 600
  Open daylight mm 950(As required)
  Nozzle Center Height mm 200±20
  Nozzle Center Distance mm 200
  Ejector force T 7
  Ejector stroke mm 150
(Others) Pump motor power Kw 48
  Hydraulic system pressure Kg/cm2 140
  Barrel heating power Kw 22
  Total wattage Kw 70
  Oiltank capacity L 1000
  Machine weight  (approx.)     T 32
  Machine dimensions(approx.) m 5.3×2.0× 4.4



Why Do You Need a Golf Ball Making Machine?

The Golf Ball Making Machine has several advantages for manufacturers in the golf industry. Here are some of the benefits of using a vertical injection moulding machine for making golf balls:

High Precision: The Golf Ball Making Machine is designed with advanced technology and features such as high-precision linear guide rails, digital control systems, and automatic lubrication systems, which ensure the accuracy and consistency of the final product. This is critical for producing golf balls with precise dimensions and weights, which are crucial for consistent performance on the course.

User-Friendly: The vertical golf ball injection moulding making machines are designed to be user-friendly, with easy-to-use controls and a user-friendly interface. This allows operators to quickly learn how to use the machine and reduces the risk of errors or accidents during production.

Versatile: The vertical injection moulding machine for making golf ball is available in different series, including standard series machine, single slide plate series, double slide plate series, and rotary table series injection molding machine. This provides manufacturers with the flexibility to choose the machine that best suits their specific production requirements and budget.

Cost-Effective: The making machine for golf balls manufacturing is a cost-effective solution for producing high-quality golf balls. By using a vertical injection moulding machine, manufacturers can reduce labor costs, as the machine can perform many of the tasks that would otherwise require manual labor. Additionally, the machine can operate continuously, which reduces downtime and improves overall efficiency.

Overall, the Golf Ball Making Machine offers several advantages for golf ball manufacturers, including high precision, efficient production, user-friendliness, versatility, and cost-effectiveness. By investing in this technology, manufacturers can enhance their production capabilities and deliver high-quality golf balls to their customers.



We look forward to working with you!

A Golf Ball Making Machine is a specialized vertical injection moulding machine designed for the manufacturing of golf balls. As a professional manufacturer of vertical injection moulding machines, Hangzhou DENICE Machinery Co., Ltd. offers a range of high quality and high precision machines that are capable of producing golf balls with varying levels of clamping force and injection volume.

Our vertical golf ball injection moulding making machines are equipped with advanced technology and features such as a digital control system, automatic lubrication system, and high-precision linear guide rails to ensure the accuracy and consistency of the final product.

The making machine for golf balls manufacturing is designed to operate with a high degree of efficiency and productivity, enabling manufacturers to produce a large number of golf balls in a short amount of time. Additionally, our machines are designed to be user-friendly, with easy-to-use controls and a user-friendly interface.

Overall, our making machine for golf balls manufacturing is the ideal solution for manufacturers looking to produce high-quality golf balls with precision and efficiency. With our expertise in vertical injection moulding machines and commitment to customer satisfaction, DENICE Machinery is the perfect partner for golf ball manufacturers seeking to enhance their production capabilities.  If you want to know more about Golf Ball Making Machine, please feel free to contact us.
