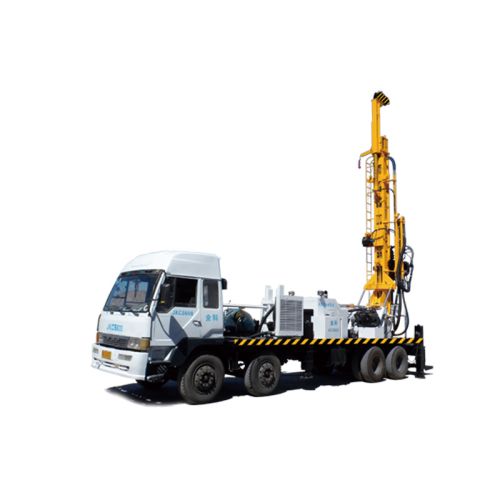

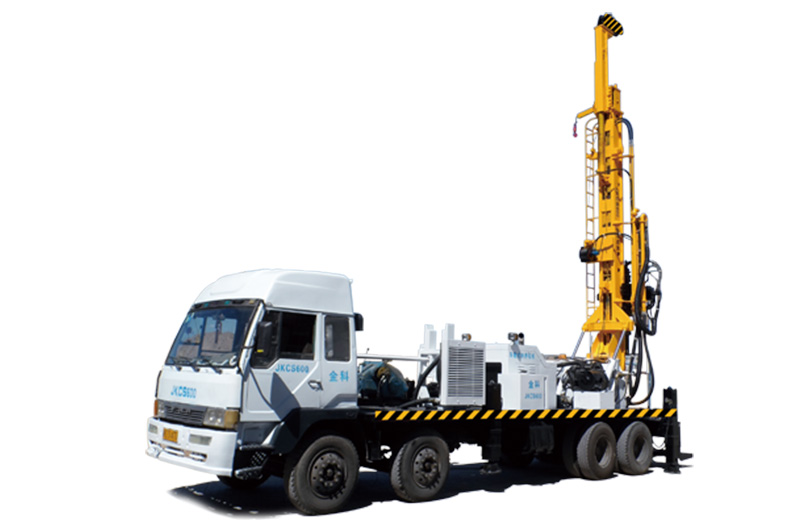

JKCS600 Truck Mounted Well Drilling Rig

Truck Mounted Well Drilling Rig

Product Description

JKCS600 truck mounted versatile well drilling rig is a new, efficient and multifunctional hydraulic rig, mainly applicable to all kinds of drilling process of wells, monitor boreholes, geothermal boreholes, and grouting holes of cofferdam, dam and reinforced base, as well as drilling of open pit, anchor reinforcement project and defense project. The rig equips with powerful hydraulic motor, heavy-duty hydraulic drilling arm and high pressure DTH percussive hammer, and its drilling speed is faster than other type of rigs.



Borehole Diameter φ140-450mm
Borehole Drilling Depth 600m
Working Air Pressure 1.05-6.9MPa
Air Consumption 16-35m³/min
Rod Diameter φ89/ φ114mm  (optional)
Rod Length 4.5m
Lifting Force 32t
Axial Pressure ±10t
Lifting Speed 5-25m/min
Feeding Speed 10-36m/min
Rotation Torque 6500N.m (first gear )
13000N.m (second gear)
Rotation Rate 0-160rpm (first gear)
0-80rpm (second gear)
Dimension (L x W x H) 9100mm x 2400mm x 3600mm
Lifting Force of Auxiliary Winch 4t
Lifting Force of Tooling Winch 1.5t
Mud Pump Optional
Generator Optional
Rotation System Optional
Weight 17t ( Excluding Vehicle)
