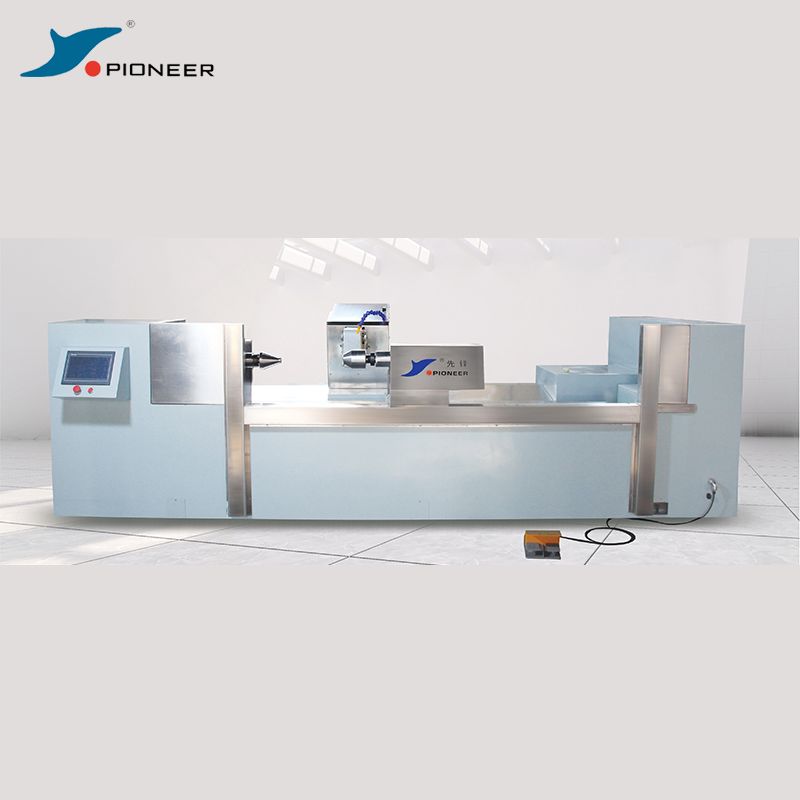

GP Gravure Cylinder Chrome Polishing Machine
GP Gravure Cylinder Chrome Polishing Machine
Product Description
GP Gravure Cylinder Chrome polishing machine is designed for polishing chrome layer of gravure cylinders to achieve the smoothness and brightness. It is PLC controlled with touchable screen via VFD either manually or automatically. Automatically operation can avoid artificial failure and guarantee production stability and product’s quality.
Chrome Polishing Machine Main Technical Parameters
|
Model |
GP 1500 |
GP 2000 |
GP 2500 |
|
Cylinder diameter (mm) |
90-400 |
90-400 |
90-400 |
|
Cylinder length (mm) |
400-1500 |
400-2000 |
400-3000 |
|
Cylinder rotation speed (r/min) |
100-300 |
100-300 |
100-300 |
|
Polishing head to-and-fro-speed (mm/min) |
350-890 |
350-890 |
350-890 |
|
Polishing head forward speed (mm/min) |
560 |
560 |
560 |
|
Polishing head motor rotation speed (r/min) |
580-1278 |
580-1278 |
580-1278 |
|
Polishing head oscillation frequency (hz) |
20-45 |
20-45 |
20-45 |
|
Tailstock movement speed (mm/min) |
1120 |
1120 |
1120 |
