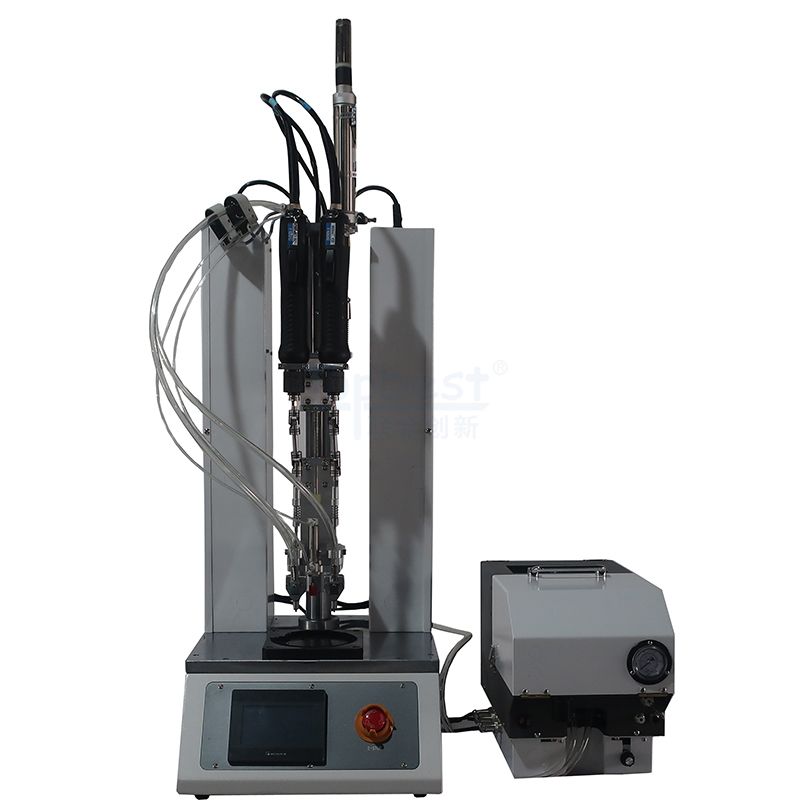

Pedal type dual heads screw fastening machine

Pedal type screw fastening machine

Parameters

1.Screw capacity of feeding device : M2X6 5000PCS

2.Efficiency: 50-70PCS/MIN(Depends on screw length)

3. Voltage:220V  50HZ

4. Screw-feeding Speed : 0.5s/pc

5. Power: 30W

6. Air pressure: 2-3KGF/CM2
7. Weight: 35KG

8. Feeding device Size: 370*250*190MM

9. Noise: lower than 65dB

10 Conveying distance: 1-4Meters

Desktop Screw Fastening Application:

1.Applicable screws: M1-M6.

2. Applicable Screw Head: for any universal type such as straight slot, cross, triangle, groove, trox, hexagonal, H head, etc.

3. Surface Treatment of screw: electrolytic nickel plating, color zinc plating, white zinc plating, and copper plating, etc.

4. Screw materials: iron, copper, stainless steel, etc.

5. Materials of products to be screwed: plastic, iron, aluminum, etc.

6. Applicative Industries: mobile photo, hard disk, keyboard, toy, LCD/LED modules, communication equipment, electrical appliances, auto parts and so on.

Features

1.The feeding system line up and distribute the screws, and send the screw to electric screwdriver through pipe

2.Operating platform. Use pedal to control electric screwdriver of up and down.

3. Electric screwdriver tightens the screw into product.

4: Dual heads working at the same time, improve the production efficiency

Simple desktop screwdriver machine only need putting product on platform by hand. And then step on pedal. Machine will tighten screw automatically. At last, take out the finished product and put the next one by hand.
