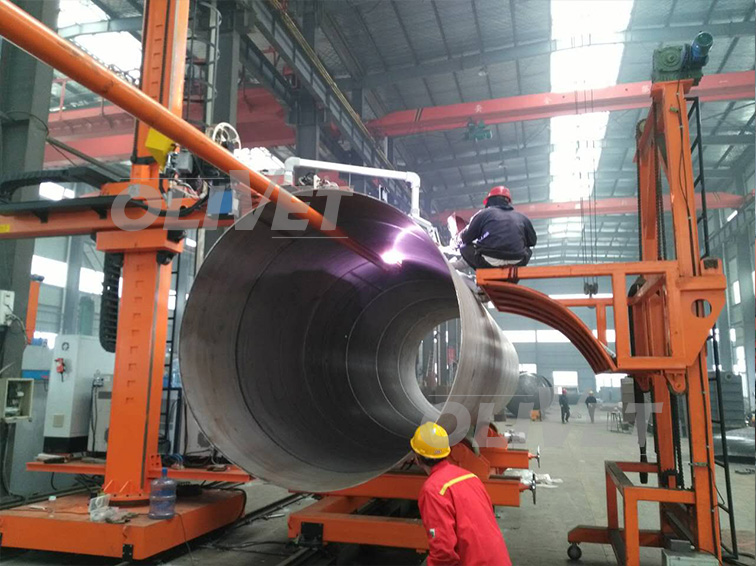

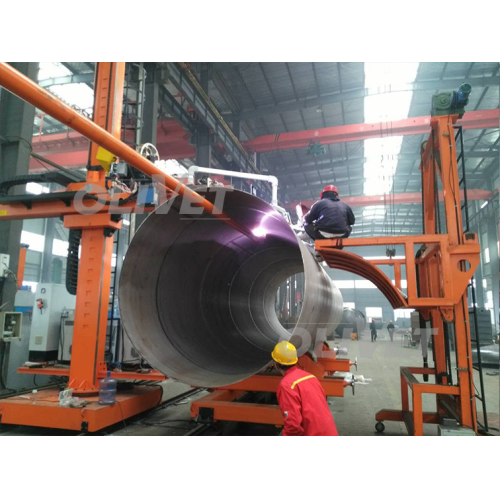

Stainless steel tank fit-up plasma welding center

The plasma and tig welding center( plasma welding center, stainless steel tank welding, stainless steel pipe welding center ) is developed for a high quality welding requests on longitudinal seam and circular seam of stainless steel tanks and pipes.

Product Description

The plasma and tig welding center is developed for a high qulity welding requests on longitudinal seam and circular seam of stainless steel. The welding center is widely used for food industry, pharmaceutical indusry and other stainless steel shell production industry.

Double avc (arc length auto control system) and plc programe system equipped to ensure the welding center is advanced and stability to finish shells with good welding qulity.

The Plasma welding center inculds two staions, single section longitudinal seam welding and many sections fit-up circular seam welding.

The Plasma welding center can finish the longitudinal and cirular seam welding of stainless steel at one pass under thickness of 3mm to 10mm without beveling processing.

The plama welding center can greatly improve the welding speed and save much labor cost.

1. Welding system

PLA-WEL501D plasma welding source (chopped mode)
Brand	Taiwan tpc
Impulse frequencey	1-500hz
Max welding currant	500a
Max duty cycle	100%
Current consumption at 100% duty cycle	33.8a
Power consumption at 100% duty cycle	24kva
Volage/ currant display	Digital
Control operating	Plc touch screen
Plate thickness	3-10mm
PLA-TIG501D plasma welding source (chopped mode)
Brand	Taiwan tpc
Impulse frequencey	1-500hz
Max welding currant	500a
Max duty cycle	100%
Volage/ currant display	Digital
Control operating	Plc touch screen
Atomatically wire feeding system
Drive mode	Four wheel
Feeding speed	0-10m/min
Speed control accurancy	±1%
Steel wire diameter	?1.0－1.2mm, ?0.8－1.6mm
Aluminum wire diameter	?1.2－1.6mm
Feeding control	Closed-loop feedback and program
