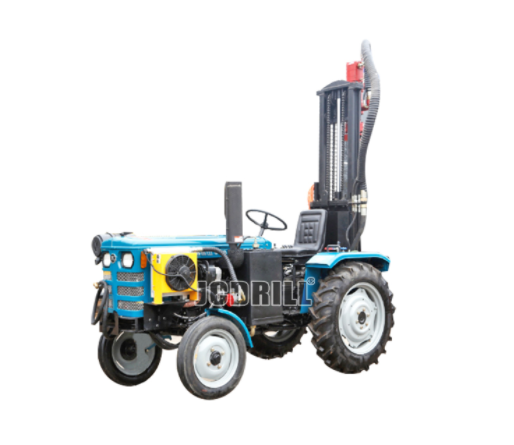

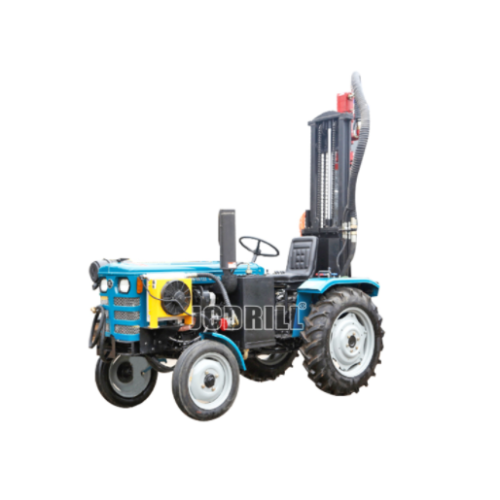

TD100 Pneumatic Tractor Mounted Water Well Drilling Rig

The rig uses the tractor diesel engine as the working power of the rig. The rig working part is integrated with the tractor. The tractor is the rig, the transportation machine, and the working power of the rig. When going to the work site, the tractor has the transportation transfer capability. The air compressor can be mounted, which saves the investment of the transportation vehicle, lowers the cost and makes the work more convenient. It is also equipped with a tricycle to load the drill pipe. Because the fuselage is small and flexible, the tractor is more suitable for driving and operating in various road conditions and occasions in the wild, villages, etc. Rural hutongs and farmyards can enter the well.

>> Characteristics

In particular, it can drilling on hard rock layer and it can work efficiently under various geological structures.

Tractor water well drilling rig is the most popular machine meeting most requirements for a combination drilling machine able to complete rural water supply holes in sediments and hard rock. Weighing about 2200kg that allows it to be pulled by a pick-up it is packed with features.

The machine is compact in structure and convenient to carry. The whole machine adopts full hydraulic drive and has low failure rate.The tower assembly has a hydraulic compensation mechanism. When the tower is grounded during construction, the bearing capacity is greater and the stability is higher.

>> Specification

Description		TD100
General	Geology drilled	F=6-14
	Drill depth	0-120 m
	Drilling Diameter	90 - 180mm
	Drill system and operation	Hydraulic
	Rig assembly	1 complete unit, Tractor driven
	Mobility	4 wheel tractor
	Drill pipe (diameter x length)	60/73*1500mm
	Mud pump(Optional)	BW160
	Foam pump	Optional
	Weight	2200 kg
Rotation & Feed System	Top head drive by a hydraulic cylinder through heavy duty chain.
	Rotation torque	1400 N-m
	Speed	60-120 rpm.
	Head travel	1.95 meter
	Pull-up capacity	7700 kgs
	Pull-down Capacity	5000 kgs
	Pull-up speed-slow feed	1.22 meter/min
	Pull-up speed-rapid feed	12.26 meter/min
	Pull-down speed-slow feed	0-1.88 meter/min
	Pull-down speed-rapid feed	0- 16.90 meter/min
Tractor	Type	4x2 tractor
	Power	24KW
Drill Pipe	Drill pipe length	1.5 meter
	Drill pipe diameter	60/73 mm
	Thread	2 3/8 REG API
Mud pump(Optional)	Flow capacity	160 liter/min
	Max. working pressure	40 bar
Hydraulic System	Hydraulic tank capacity	140 liter
Stabilizing Jack	1 front jacks and 2 rear jacks.
	Type	Hydraulic
	Stroke	350 mm
Air System	Lubricator of venturi-type for down-the-hole drills.
	Max. pressure	25 bar
	Oil tank capacity	4 liter
Dimensions	Overall length	3150 mm
	Overall width	1200 mm
	Overall height	2150 mm
