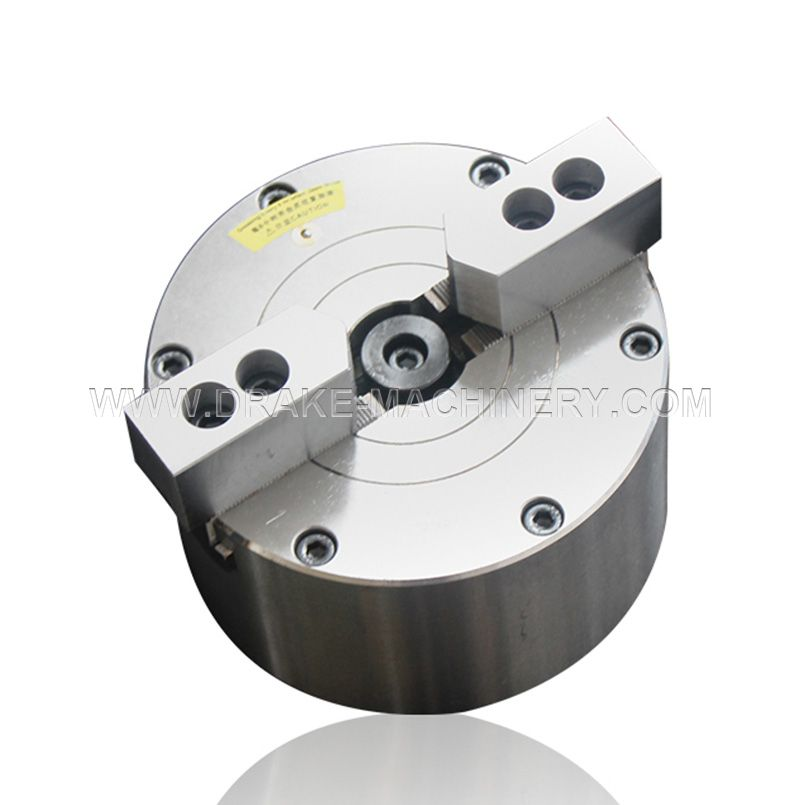

2 Jaw Chuck

This series of 2 Jaw Chuck comes with built-in cylinder structure, adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability Without flange connection, D connection.

Product Description

Product Details

The QS2-2 Jaw Solid Pneumatic Chuck has been specifically designed to allow the use of workpiece-specific jaws for machining irregularly shaped parts, such as valves or fittings, as well as spherical parts that require full jaw envelopment. 2 jaw chuck can hold protruding parts while machining fittings or similar parts and has the long jaw travel required to machine spherical parts that must be enclosed by jaws.

2 Jaw Chuck Feature

This series of chuck comes with built-in cylinder structure, adopt the advanced alloy steel material, all with the surface by surface hardening treatment, in order to improve the accuracy and durability Without flange connection, D connection.

Product Size

QS2-2 Jaw Solid Pneumatic Chuck (Built In)

Product Parameters

Performance parameters
Model/Spec.	Jaw stroke (diameter)	Maximum static clamping force KN(Kgf)	Maximum static holding force KN(Kgf)	Permissible pressure (Mpa)	Limit speed r/min	Clamping range	Holding range	Net weight (kg)
QS2-04"	3.2	2040	1170	0.4-0.8	4500	2-120	15-120	4.8
QS2-05"	3.7	2856	1836	0.4-0.8	4000	3-140	15-140	7.6
QS2-06"	4.2	4896	2652	0.4-0.8	3600	4-180	20-180	13
QS2-08"	5	7140	4284	0.4-0.8	3300	5-215	20-240	21
QS2-10"	6.5	9282	6120	0.4-0.8	3000	10-260	30-280	33
QS2-12"	8.5	14076	9486	0.4-0.8	2500	10-350	40-360	66.5
QS2-15"	12	19788	15096	0.4-0.8	2000	20-420	60-400	112

Size parameter
Model/Spec.	D	D1	D2	H	H1	h	p	z-d
QS2-04"	115	72	100	96	72	3	16	3-M8
QS2-05"	135	95	108	118	85	4	18	3-M8
QS2-06"	172	130	142	130	93	4	20	3-M8
QS2-08"	208	165	180	136	98	5	25	3-M10
QS2-10"	252	206	226	143	100	5	30	3-M12
QS2-12"	322	270	290	160	115	6	30	6-M12
QS2-15"	400	340	368	168	118	6	43	6-M16
