MZ150 DN50-150mm (2-6Inch) Portable Gate Valve Grinding Machine

Portable Gate Valve Grinding Machine

Product Description

1.Summarization

MZ Portable Valve Grinding Machine for grinding gate valve is a new generation of products that is adeveloped to adapt to on-site maintenance gate valve. It has the advantages as below: the reduction of labor intensity, improving labor efficiency, replacing imported products, educing the maintenance cost. It is widely used in petroleum, chemical industry, steel mills, power plants and so on.

1)        small volume. Light weight, easy to carry.

2)        installation is simple, the  structure of product is combined type, easy disassembly, transvestite.

3)        easy to operate.Valve seat, valve core can be grinded.

4)        high grinding efficiency, good quality. Using advanced grinding materials, grinding efficiency is 10 to 30 times that of the manual grinding, can make the contact area of more than 95%. High precision grinding quality makes the contact area to the level of new valve.

5)        it is suitable for on site repair in a complicated environment which saves the overall disassembling of valve.



2.Technical indicators

Item MZ-150 MZ-250
Grinding Range(mm) Dia 50-180 Dia95-270
Voltage(V) 220 220
Power(W) 1100 1100
Frequency(HZ) 50 50
Max Grinding Depth(mm) 420 600
Valve sealing face   min gap(mm) 38 45
Gross Weight(kg) 20 31.5

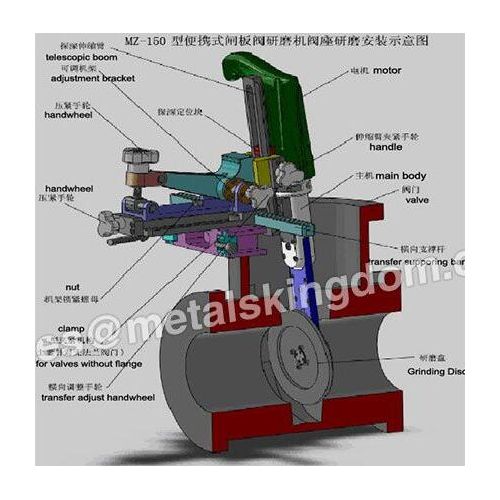

3.The installation diagram

MZ150 Portable Gate Valve Grinding Machine

MZ150 Portable Gate Valve Grinding Machine

MZ150 Portable Gate Valve Grinding Machine

MZ150 Portable Gate Valve Grinding Machine

MZ150 Portable Gate Valve Grinding Machine

MZ150 Portable Gate Valve Grinding Machine

MZ150 Portable Gate Valve Grinding Machine
