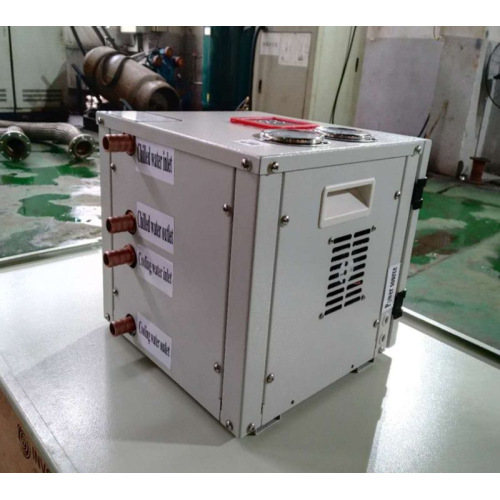

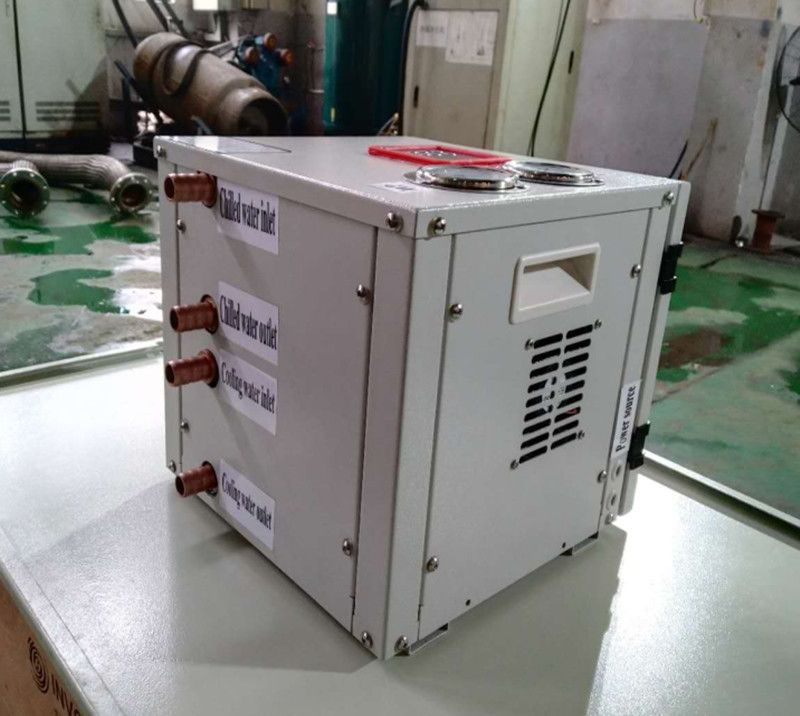

DC Small size portable water chiller
The Small Water Chiller relies on the pump pressure to form a closed medium circulation, and the temperature sensor detects the medium temperature to implement the control of the refrigerator. If you have any questions about Small Water Chiller Price, please consult us.
Product Description
Small water chiller use DC power supply, using coolant as heat transfer medium, transferring heat generated by other instruments or equipment that need to be cooled, and dissipating heat to the outside of the equipment through the refrigeration system, thus ensuring that theequipment works within the normal temperature range.
The cooling machine and the instrument and equipment rely on the pump pressure to form a closed medium circulation, and the temperature sensor detects the medium temperature to implement the control of the refrigerator. If you have any question on small water chiller, please consult us.
Mini water chiller application
The small water chiller is a micro refrigeration system that especially applies to a microclimate cooling system and provides extraordinary cooling capacity for the extremely hot environment and confined space.
1. The portable water chiller applies for microclimate cooling system and provides extraordinary cooling capacity for laser, computer, body cooling, racing, firefighter, EV battery, electronics, medical & aesthetic device.
2. They cool machines and tools during drilling, welding, milling, and other forms of metalworking, but also during tool changes.
3. Due to their compact size, small cooling water recirculating chillers are also frequently found in laboratories. Small Water Chillers are used for cooling autoclaves, reactors, measuring instruments, and other objects.
Click Here to Get More Compact Water Chiller Details!
Technicial parameter of Mini Water Chiller System
| Small size water cooled chiller | |||
| Item | Description | Unit | Parameter |
| 1 | Water cooled chiller | Model | HTB-M1.5S-24/36D |
| 2 | Power | DC24/36V | |
| 3 | Cooling capacity | W | 1500 |
| Kcal/h | 1290 | ||
| 4 | Power consumption | W | 240 |
| 5 | Running Amps | A | 11.7 |
| 6 | Compressor | Type | Small DC compressor |
| Quantity | 1 | ||
| Starting method | Direct start | ||
| 7 | Refrigerant | Type | R134a |
| Quantity | 300g | ||
| Control | Capillary | ||
| 9 | Evaporator | Type | Plate heat exchanger |
| Water inlet temp (℃) | 24 | ||
| Water outlet temp (℃) | 19 | ||
| Water flow rate (L/h) | 172 | ||
| Water pipe | DN10 | ||
| 10 | Condenser | Type | Plate heat exchanger |
| Water inlet temp (℃) | 30 | ||
| Water outlet temp (℃) | 35 | ||
| Water flow rate (L/h) | 220 | ||
| Water pipe | DN10 | ||
| 13 | Dimension | L*W*H（MM） | 300*300*280 |
| 14 | Weight | KG | 20.7kg |
| Small Portable Chiller Configuration table: | |||
| High Performance Spare Parts & Accessories | |||
| Item | Specification | Brand | Country of origin |
| 1 | DC Compressor | Hitachi/Panasonic | Japan |
| 2 | Evaporator | SWEP | Sweden |
| 3 | Condenser | SWEP | Sweden |
| 4 | Dry filter | Emerson | America |
| 5 | Capillary | Customized | China (Huazhao) |
| 6 | Microcomputer controller | Customized | China (Huazhao) |
| 7 | Pressure Switch | Danfoss | Denmark |
| 8 | Refrigeration | DuPont | America |
| 9 | Pressure gauge | SK | China |
Small Water Chiller Units advantage
The benefits of small water chiller include ultra-small radiator and high heat flux. This Miniature Water Chiller does not only facilitate installation but also assures end users having excellent cooling performance. Users only need to connect the liquid inlet pipe and outlet pipe to get the chilled liquid they expected.
A Reliable Supplier for Small Water Chiller and Leading Small Cooling Solution Manufacturer
Huazhao small water chiller offers 12V, 24V, and 48V voltage input options and is compatible with various currents. It is widely applied to battery, electronics, laser, medical devices and other thermal management of precise instruments. Small water cooled chiller provides excellent cooling performance. Apart from the standard small chiller system, Huazhao also custom-made or personalized small cooling modules to meet customers' special demands. Just contact us.
FAQ about small water chiller
Q: What is a small water chiller?
A: A small water chiller is a refrigeration system designed to cool water or other liquids to a specific temperature. It typically consists of a compressor, condenser, evaporator, and refrigerant, and it uses a refrigeration cycle to transfer heat from the water to the surrounding environment, cooling the water to the desired temperature.
Q: What are some common applications of small water chillers?
A: Small water chillers are used in a variety of applications, including:
◆Process cooling: Small water chillers are commonly used in industrial processes that require the cooling of equipment or products, such as in food and beverage production, pharmaceutical manufacturing, and laser cutting.
◆Air conditioning: Small water chillers can be used for cooling water in HVAC systems to provide air conditioning for commercial or residential buildings.
◆Laboratory and scientific applications: Small water chillers are often used in laboratories and scientific research settings to maintain precise temperatures for experiments or equipment, such as in medical and pharmaceutical research, chemical analysis, and material testing.
◆Aquaculture: Small water chillers are used in fish tanks or aquaculture systems to maintain optimal water temperature for fish and other aquatic organisms.
◆Beverage dispensing: Small water chillers are used in beverage dispensing systems, such as in restaurants, bars, and coffee shops, to cool water for various beverages, including carbonated drinks, juices, and cocktails.
