ARM embedded Rockchip SOM RK3588 Android Ubuntu AIOT core board

The SOM core board is the main component of a SOM based system. It contains the essential components required for the system to function, such as the CPU, RAM, and flash memory.

Product Description

Product Description

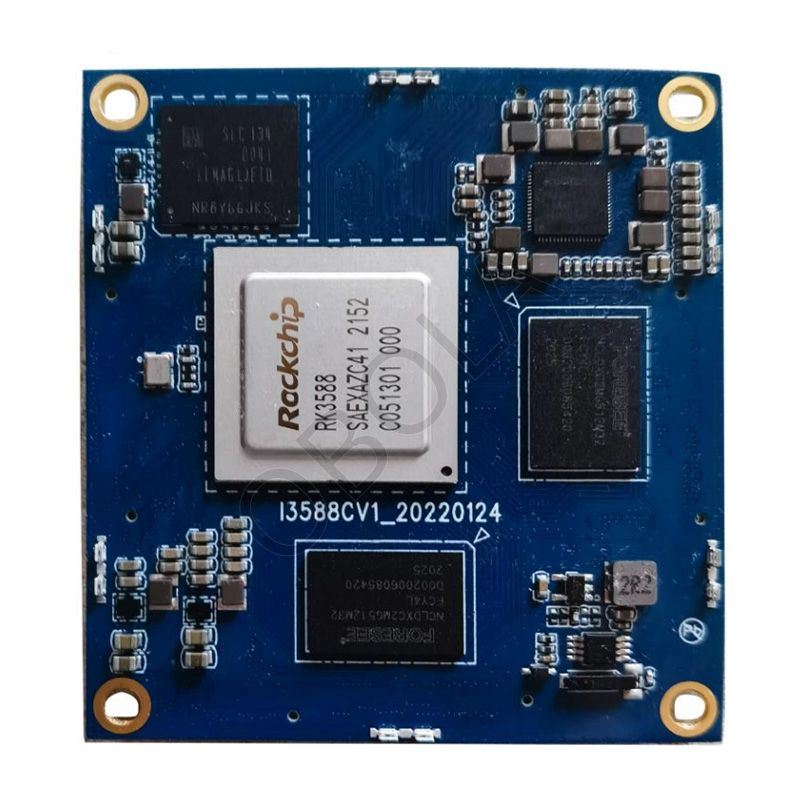

Model: i3588CV1

Optional configuration: RAM(LPDDR4)+ROM(eMMC) 4+16G and 8+32G

The SOM core board is the main component of a SOM based system.It contains the essential components required for the system to function, such as the CPU, RAM, and flash memory. The Core Board is designed to be inserted into a larger carrier board or baseboard, which provides additional functionality and interfaces specific to the application requirements.

The purpose of using a SOM Core Board is to simplify the development process of embedded systems. By using a pre-designed and pre-tested Core Board, developers can focus on designing the application-specific functionalities and peripherals on the carrier board, rather than spending time on the complex hardware design of the entire system.



Features of SOM Core Board

● Advanced 8nm processing, Rockchip new generation AIOT chip, 8K universal SoC.

● 8-cores ARM Framework, CPU 4*A76@2.4GHz & 4*A55@1.8GHz.

● Quad-Core GPU Mali-G610

● NPU 6TOPS AI computing power, support INT4/INT8/INT16 hybrid operation, support TensorFlow/MXNet/PyTorch/Caffe etc network model.

● 8K Encoder/Decoder Exploring, 8K@60fps H.265/VP9 video decoding & 8K@30fps H.265/H.264 video encoding, support decoding & encoding simultaneously, Max 32 1080P@30fps decoding &16 1080P@30fps encoding, HD 8K pictures。

● 8K display, Max 8K@60Hz, Can create a more realistic visual impression.

● Support HDMI2.1, EDP1.3, MIPI-DSI, DP1.4, BT.1120 multi channel video output & HDMI RX2.0, MIPI-CSI, DVP video input, 8K multi channel video output & 4K video input, Can achieve multi screen with different content. Integrated with 48MP ISP with HDR & 3DNR, support MIPI-CSI double camera input.

● Various display interfaces, support for multiple hard drives, gigabit ethernet, WiFi6, 5G/4G extension;

● Support android12.0, linux, debain, ubuntu etc.

● Comprehensive development documents;SDK, technical datasheet, tools.



Applications of SOM Core Board

Edge computing box, AGV, ITX PC, NVR, Interative Kiosk, AR/VR, Clound Service, Internet Media Player.



Application of SOM Core Board



Product Parameters

CPU

RK3588

Main Frequency

Quad-core A76 + Quad-core A55(2.4GHz)

Memory / Storage

4G(ddr) + 16G(emmc) or 8G + 32G optional

Power ICs

Use RT806, support dynamic FM, etc.

Operating System

android12.0, linux, debain, ubuntu



Interface

LCD Interface

Support MIPI, EDP, HDMI interface output at the same time; max.
 Support up to 6 channels with display, 4 channels with different display

Touch Interface

Capacitive touch, can be touched using USB or I2C interface

Audio Interface

IIS/PCM/TDM Interface

SPDIF Interface

2-way 8-channel optical audio output interface

SD card interface

2 SDIO output channels

emmc Interface

On-board emmc interface, no additional pinout

Ethernet Interface

Dual Gigabit Ethernet interfaces

USB HOST2.0 interface

2-way HOST2.0

USB HOST3.0 interface

2-way USB OTG 3.0/2.0/TypeC

OTG Interface

1 OTG interface

UART Interface

10-way serial port, support with flow control serial port

PWM Interface

16 PWM outputs

IIC Interface

9-way IIC output

SPI Interface

5 SPI outputs

ADC Interface

8 ADC outputs

CAN Interface

3 CAN outputs

Camera Interface

6 CSI inputs

HDMI Interface

2 HDMI2.1 TX, 1 HDMI RX2.0

PCIE Interface

PCIe 3.0 (2x2,1x4,4x1)



Technical Parameters

4V input voltage

4V/5A (4V/8A input recommended)

RTC input voltage

2.5 to 3V/100uA, powered by external coin cell battery

Output Voltage

3.3V/2A, 1.8V/2A (available for backplane power)

Operating temperature

0~70 degrees

Storage temperature

-10 ~50 degrees



Structure Diagram

Structure Diagram of SOM Core Board



Parameters

Appearance

Board-to-board connector packages

Core board size

67mm*61mm*6mm

Pin spacing

0.5mm

Pin Header Specifications

Panasonic AXK6F80537YG

Number of pins

320PIN

Plate Layer

10 floors

Warpage

Less than 0.5%
