We provide the best price high quality PTC Heater for Bus.Welcome to contact us if you are interested in PTC Heater for Bus or other PTC heater products.
Product Description
Attribute
Temperature:Self-control
Voltage:HV
Reliability:High Reliability
Application:Bus
Product Specification:Heater
● After-sales Service : Video technical support, Online support
● Application: air heating for electric bus
● Advantages: Safer, can be quickly turned on heating even under -40℃
● MOQ: 20 sets
● Port:Shanghai

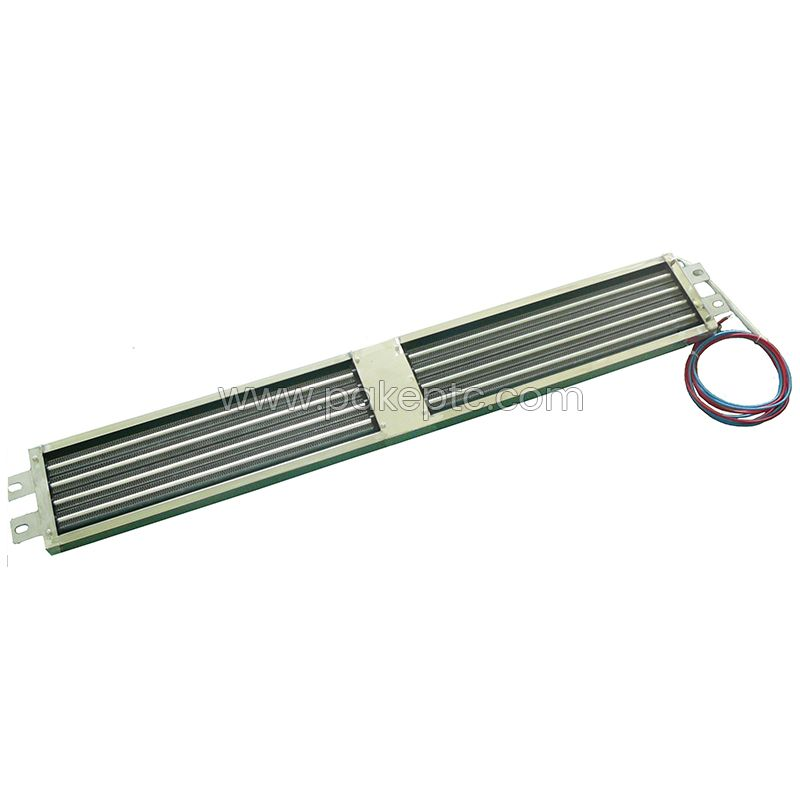

PTC heater for bus is most widely applied to electric bus today for air heating.Compared to traditional heater, PTC heater for bus is safer and more reliable because the self-regulating PTC element will not be damaged without air flow. Also, power of thermostat will automatically be cut off when it is overheating. PTC heater for bus is an excellent air preheater for vehicles to start under -40℃ since it can start quickly under low temperature condition.
● Voltage can be selected from 250~600VDC, up to 900VDC
● Waterproof grade is IP67
1. Self-regulation PTC element, PTC heater for bus will not be damaged without air flow
2. Multiple insulation. Electric strength can reach 2500VAC. Leak current is less than 5mA
3. Excellent low temperature start performance, PTC heater for bus can be quickly turned on heating even under -40℃
Part No. |
Model |
Size (mm) |
Assembly size A×B (mm) |
Power (KW) |
F2768 |
MZFR-J-2.5KW-600VDC |
750×140×65 |
712×30 |
2.5 |
F2786 |
MZFR-J-3KW-600VDC |
390×220×33 |
370×147 |
3 |
F2912 |
MZFR-J-3KW-550VDC |
761×181×33 |
741×140 |
3 |
F2620 |
MZFR-J-3KW-550VDC |
920×160×33 |
895×101 |
3 |
F2879 |
MZFR-J-4KW-600VDC |
711×181×33 |
685×86 |
4 |
F2855 |
MZFR-J-4KW-550VDC |
880×181×33 |
860×85 |
4 |
F2862 |
MZFR-J-4KW-750VDC |
916×181×33 |
890×86 |
4 |
F2782 |
MZFR-J-4KW-550VDC |
920×160×33 |
895×101 |
4 |
F2854 |
MZFR-J-4KW-550VDC |
930×181×33 |
910×85 |
4 |
F2899 |
MZFR-J-4KW-750VDC |
1056×181×33 |
1030×86 |
4 |
F2788 |
MZFR-J-4KW-550VDC |
1154×181×33 |
1126×91 |
4 |
F2849 |
MZFR-J-4KW-600VDC |
1152×167×33 |
1132×100 |
4 |
F2801 |
MZFR-J-4KW-600VDC |
1160×167×33 |
1132×100 |
4 |
F2835 |
MZFR-J-4KW-550VDC |
1260×220×33 |
1240×150 |
4 |
F2874 |
MZFR-J-4KW-600VDC |
1362×140×33 |
1330×100 |
4 |
F2719 |
MZFR-J-5KW-550VDC |
705×181×33 |
685×86 |
5 |
F2888 |
MZFR-J-5KW-550VDC |
730×384×33 |
710×150 |
5 |
F2821 |
MZFR-J-5KW-400VDC |
796×167×33 |
776×90 |
5 |
F2389 |
MZFR-J-5KW-410VDC |
930×220×33 |
870×150 |
5 |
F2819 |
MZFR-J-5KW-410VDC |
930×220×33 |
870×150 |
5 |
F2823 |
MZFR-J-5KW-380VDC |
920×181×33 |
900×85 |
5 |
F2833 |
MZFR-J-5KW-550VDC |
920×181×33 |
900×85 |
5 |
F2836 |
MZFR-J-5KW-750VDC |
920×181×33 |
900×85 |
5 |
F2789 |
MZFR-J-5KW-600VDC |
945×181×33 |
925×100 |
5 |
F2804 |
MZFR-J-5KW-540VDC |
1020×167×33 |
990×70 |
5 |
F2805 |
MZFR-J-5KW-540VDC |
1020×167×33 |
990×70 |
5 |
F2870 |
MZFR-J-5KW-750VDC |
1260×220×33 |
1240×150 |
5 |
F2802 |
MZFR-J-5KW-540VDC |
1403×181×33 |
1372×100 |
5 |
F2758 |
MZFR-J-5KW-600VDC |
1404×215×64.5 |
1380×95 |
5 |
F2764 |
MZFR-J-5KW-600VDC |
1413×181×33 |
1393×106.5 |
5 |
F2743 |
MZFR-J-5KW-380VAC |
1712×220×33 |
1692×120 |
5 |
F2842 |
MZFR-J-5KW-550VDC |
1823×220×33 |
1749×95 ×190 |
5 |
F2818 |
MZFR-J-6KW-380VDC |
930×220×33 |
870×150 |
6 |
F2910 |
MZFR-J-6KW-380VDC |
930×181×33 |
910×85 |
6 |
F2766 |
MZFR-J-6KW-550VDC |
1222×181×33 |
1100×106 |
6 |
F2907 |
MZFR-J-6KW-550VDC |
1152×167×33 |
1132×100 |
6 |
F2903 |
MZFR-J-6KW-550VDC |
1156×250×33 |
1136×150 |
6 |
F2837 |
MZFR-J-6KW-600VDC |
1210×167×33 |
1180×70 |
6 |
F2829 |
MZFR-J-6KW-540VDC |
1280×167×33 |
1250×70 |
6 |
F2830 |
MZFR-J-6KW-540VDC |
1280×167×33 |
1250×70 |
6 |
F2589 |
MZFR-J-6KW-750VDC |
1450×160×33 |
1430×90 |
6 |
F2878 |
MZFR-J-6KW-600VDC |
1660×140×33 |
1630×100 |
6 |
F2886 |
MZFR-J-7KW-750VDC |
1260×220×33 |
1240×150 |
7 |
F2820 |
MZFR-J-8KW-750VDC |
980×250×33 |
960×170 |
8 |
F2824 |
MZFR-J-8KW-550VDC |
980×250×33 |
960×170 |
8 |
F2832 |
MZFR-J-8KW-750VDC |
980×250×33 |
960×170 |
8 |
F2914 |
MZFR-J-8KW-550VDC |
980×250×33 |
960×170 |
8 |
F2875 |
MZFR-J-8KW-600VDC |
1060×240×33 |
1040×160 |
8 |
F2783 |
MZFR-J-8KW-600VDC |
1152×167×33 |
1132×100 |
8 |
F2734 |
MZFR-J-8KW-750VDC |
1156×250×33 |
1136×150 |
8 |
F2816 |
MZFFR-J-8KW-550VDC |
1156×250×33 |
1136×150 |
8 |
F2618 |
MZFR-J-8KW-600VDC |
1210×167×33 |
1180×70 |
8 |
F2600 |
MZFR-J-8KW-600VDC |
1210×167×33 |
1180×70 |
8 |
F2761 |
MZFR-J-8KW-550VDC |
1260×220×33 |
1240×150 |
8 |
F2831 |
MZFR-J-8KW-750VDC |
1260×220×33 |
1240×150 |
8 |
F2913 |
MZFR-J-8KW-720VDC |
1450×167×33 |
1430×100 |
8 |
F2817 |
MZFR-J-8KW-600VDC |
1458×167×33 |
1430×100 |
8 |
F2857 |
MZFR-J-8KW-600VDC |
1823×220×33 |
1749×95×190 |
8 |
F2744 |
MZFR-J-8KW-600VDC |
1712×220×33 |
1767×95 |
8 |
F2767 |
MZFR-J-8KW-600VDC |
1860×168×60 |
1832×30 |
8 |
F2838 |
MZFR-J-8KW-600VDC |
1860×168×50 |
1832×76 |
8 |
F2872 |
MZFR-J-8KW-600VDC |
1860×168×50 |
1832×76 |
8 |
F2727 |
MZFR-J-8KW-750VAC |
2080×185×33 |
2060×115 |
8 |
F2904 |
MZFR-J-9KW-537VDC |
1458×167×33 |
1430×100 |
9 |
F2825 |
MZFR-J-10KW-550VDC |
1156×250×33 |
1136×150 |
10 |
F2826 |
MZFR-J-10KW-550VDC |
1260×220×33 |
1240×150 |
10 |
F2860 |
MZFR-J-10KW-600VDC |
1260×220×33 |
1240×150 |
10 |
F2905 |
MZFR-J-10KW-550VDC |
1260×220×33 |
1240×150 |
10 |
F2876 |
MZFR-J-10KW-750VDC |
2080×185×33 |
2060±3×115 |
10 |
F2839 |
MZFR-J-13KW-600VDC |
1720×270×33 |
1695×200 |
13 |
F2760 |
MZFR-J-15KW-600VDC |
1560×300×33 |
1536×189 |
15 |
F2769 |
MZFR-J-15KW-600VDC |
1760×300×33 |
1736×185 |
15 |
F2863 |
MZFR-J-15KW-600VDC |
1760×300×33 |
1736×185 |
15 |
F2822 |
MZFR-J-22KW-600VDC |
1769×485×33 |
1745×320 |
22 |
F2787 |
MZFR-J-25KW-600VDC |
1770×545×33 |
1745×400 |
25 |
The PTC Heater for Bus is an advanced heating system specifically designed for electric cars and buses. As the demand for electric vehicles continues to rise, the need for efficient and reliable heating solutions becomes paramount. This innovative electric car heater system utilizes PTC (Positive Temperature Coefficient) technology, which ensures optimal performance and energy efficiency. With its compact size and powerful heating capabilities, the PTC Heater for Bus provides a comfortable and cozy environment inside the electric car cabin. Whether it's a car PTC heater or a heater for a larger vehicle like a bus, this electric heater for car applications offers reliable warmth, ensuring a pleasant driving experience even in cold weather conditions.
