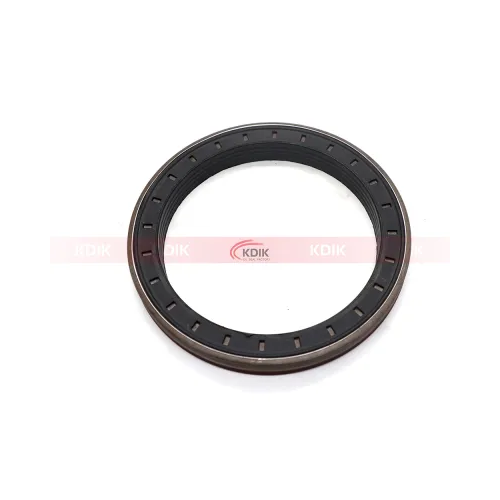

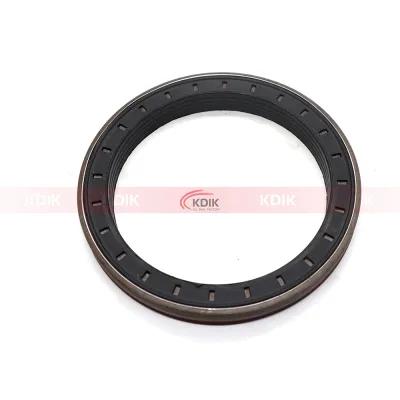

Cassette Tractor Oil Seal
Oil seal is often called grease, fluid, dirt or lip seals. Oil seal is an integral part in any rotating and moving part assembly. They close spaces between stationary and moving components in mechanical equipment.
Product Description
Cassette Tractor Oil Seal Basic Info.
Model NO.
110*140*14.5/16
Standard
Standard
Application
Tractor Harvester Agricultural Machinery Parts
Product Name
Floating Rotary Shaft Seal
Certificate
ISO9001/Ts16949
Color
Customers Required
Advantage
Factory Direct Sale
Transport Package
PE Bag + Carton Box
Specification
OIL SEAL
Trademark
KDIK
Origin
China
HS Code
8487900000
Production Capacity
500000piece/Year
Product Description
Basic information:
Oil seal is often called grease, fluid, dirt or lip seals. Oil seal is an integral part in any rotating and moving part assembly. They close spaces between stationary and moving components in mechanical equipment. In most applications, the seal is either partially or temporarily immersed or is simply exposed to splashing lubricant, particularly in engines, transmissions, gearboxes or axles. They are vital components of almost every type of machine and vehicle in operation. An oil seal normally consists of three basic components: The Sealing Element (the nitrile rubber part), the Metal Case, and the Spring. It is a widely used sealing component. The function of a seal is to prevent the leakage of medium along the moving parts.
Technical data
|
Material: |
NBR/FKM/HNBR/PU/fabric rubber/Silicone/...etc |
|
Type: |
TC / SC / TB / SB / VC / TA / SA / VB / VA and so on |
|
Size Range: |
ID from 5mm to 1M |
|
Color: |
Black, Brown, Blue / Customized |
|
Feature: |
Durable, Water Resistant, Oil Resistant |
|
Packing: |
By Roll/ Plastic Bag + Carton Box / Customized |
|
HS Code |
84842000 |
|
Temperature: |
-40°C / +200°C Depending On Material |
|
Pressure: |
Up to 0.05 MPa |
|
Speed: |
Up to 25 m/s |
|
Medias |
mineral oils, water, lubricating grease |
|
Spring: |
Carton Steel/stainless steel |
|
Hardness: |
30-90 Shore |
Cassette Oil Seal Size List
| KDIK OIL SEAL -CASSETTE TYPE | ||
| Size | Type | Article No. |
| 20*47*9/12 | Cassette Oil Seal | |
| 25*41*9.5/13 | Cassette Oil Seal | |
| 25*47*13 | Cassette Oil Seal | |
| 25*52*11.5/18 | Cassette Oil Seal | |
| 25*52*12 | Cassette Oil Seal | 12015223 |
| 25*52*9.5/13 | Cassette Oil Seal | |
| 30*55*14.5 | Cassette Oil Seal | |
| 30*62*13/19 | Cassette Oil Seal | |
| 30*62*14 | Cassette Oil Seal | |
| 30*72*11/17 | Cassette Oil Seal | |
| 32*55*16 | Cassette Oil Seal | |
| 35*60*13/14.5 | Cassette Oil Seal | 12017029 |
| 35*62*13 | Cassette Oil Seal | |
| 35*62*13.5/14 | Cassette Oil Seal | |
| 35*65*14.5/17 | Cassette Oil Seal | 12019775 |
| 35*72*11/17 | Cassette Oil Seal | |
| 35*92/98*13/27 | Cassette Oil Seal | |
| 37*85*15/15.5 | Cassette Oil Seal | |
| 38*62*12 | Cassette Oil Seal | |
| 40*65*12 | Cassette Oil Seal | |
| 40*65*13/14.5 | Cassette Oil Seal | |
| 40*80*11/18 | Cassette Oil Seal | |
| 42*85*11/17 | Cassette Oil Seal | |
| 45*65*16 | Cassette Oil Seal | |
| 45*70*14.5/17 | Cassette Oil Seal | |
| 45*70*14/17 | Cassette Oil Seal | 12015392 |
| 48*75*14/17 | Cassette Oil Seal | 12015395 |
| 48*90*11/18 | Cassette Oil Seal | |
| 50*72*12 | Cassette Oil Seal | |
| 50*80*12 | Cassette Oil Seal | |
| 50*90*20 | Cassette Oil Seal | |
| 52*72*12 | Cassette Oil Seal | |
| 52*76*16 | Cassette Oil Seal | |
| 52*85*16 | Cassette Oil Seal | |
| 53.2*78*13/14 | Cassette Oil Seal | 12018678B |
| 55*80*12 | Cassette Oil Seal | |
| 55*80*12.5/14 | Cassette Oil Seal | 12016792 |
| 55*80*14/19 | Cassette Oil Seal | |
| 55*85*12 | Cassette Oil Seal | |
| 56*75*22.5 | Cassette Oil Seal | |
| 56*80*13/14.5 | Cassette Oil Seal | 12016445 |
| 60*80*12 | Cassette Oil Seal | |
| 60*85*12 | Cassette Oil Seal | |
| 60*85*17 | Cassette Oil Seal | |
| 60*90*12 | Cassette Oil Seal | |
| 60*84*13/14.5 | Cassette Oil Seal | 12019351 |
| 60*90*14/16.3 | Cassette Oil Seal | |
| 60*90*13.5/15 | Cassette Oil Seal | 12016418 |
| 60*95*18 | Cassette Oil Seal | |
| 62*90*12 | Cassette Oil Seal | |
| 62*93*12 | Cassette Oil Seal | |
| 65*90*12 | Cassette Oil Seal | |
| 65*90*13/14.5 | Cassette Oil Seal | 12019533 |
| 65*92*10/15 | Cassette Oil Seal | 12018849 |
| 65*105*13/14.5 | Cassette Oil Seal | 12018825 |
| 66.15*91*12.5/14 | Cassette Oil Seal | 12018901B |
| 70*90*12 | Cassette Oil Seal | |
| 70*95*13/14.5 | Cassette Oil Seal | 12014285 |
| 70*100*12.5/16 | Cassette Oil Seal | 12029817B |
| 73*101.6*14.5*15.5 | Cassette Oil Seal | 12018598B |
| 75*100*13/14.5 | Cassette Oil Seal | 12019088 |
| 75*100*15/17 | Cassette Oil Seal | |
| 80*100*12/13.7 | Cassette Oil Seal | 12019145 |
| 80*105*12 | Cassette Oil Seal | |
| 85*115*12 | Cassette Oil Seal | 12020003 |
| 85*110*13/14.5 | Cassette Oil Seal | 12016635 |
| 85*140*15/17 | Cassette Oil Seal | 12019153 |
| 95*130*16 | Cassette Oil Seal | |
| 100*130*14.5/16 | Cassette Oil Seal | 12016648B |
| 110*140*13.5/15.5 | Cassette Oil Seal | 12019735 |
| 110*140*14.5/16 | Cassette Oil Seal | 12014899 |
| 111*146*13.5/14.5 | Cassette Oil Seal | |
| 120*150*14.5/16 | Cassette Oil Seal | |
| 120*150*14/15.5 | Cassette Oil Seal | 12019941 |
| 120*160*15/17.5 | Cassette Oil Seal | 12018572 |
| 121.8*150*12/13 | Cassette Oil Seal | 12020222 |
| 125*150*14/15.5 | Cassette Oil Seal | 12016648B |
| 127*160*15.5/17.5 | Cassette Oil Seal | 12017098 |
| 130*160*14.5/16 | Cassette Oil Seal | 12019208 |
| 130*165*13.5/14 | Cassette Oil Seal | |
| 136.8*165*13/14 | Cassette Oil Seal | |
| 140*170*14.5/16 | Cassette Oil Seal | 12016451 |
| 140*170*15/19 | Cassette Oil Seal | |
| 142*170*13.5/16 | Cassette Oil Seal | |
| 142*170*15/16 | Cassette Oil Seal | |
| 145*175*14.5/15.5 | Cassette Oil Seal | 12019116 |
| 148*170*14/15 | Cassette Oil Seal | |
| 150*180*14.5/16 | Cassette Oil Seal | 12016329 |
| 150.15*178*13/16 | Cassette Oil Seal | |
| 150.5*178*13*16 | Cassette Oil Seal | |
| 158*188*16 158*188*14.5/16 | Cassette Oil Seal | |
| 155*190*14.5/16 | Cassette Oil Seal | 12020173 |
| 155*190*17.5/19 | Cassette Oil Seal | 12014851 |
| 155*195*16.5/18 | Cassette Oil Seal | 12016391 |
| 160*190*14.5/16 | Cassette Oil Seal | |
| 165*190*14/20 | Cassette Oil Seal | |
| 165*190*15.5/16.5 | Cassette Oil Seal | |
| 165*190*15.5/17 | Cassette Oil Seal | 12015133 |
| 165*195*16.5/18 | Cassette Oil Seal | 12015149 |
| 167.8*198*13/15.5 | Cassette Oil Seal | |
| 170*200*15/16 | Cassette Oil Seal | 12019056 |
| 170*204*17.5/21 | Cassette Oil Seal | |
| 178*208*16/18 | Cassette Oil Seal | 12019737 |
| 189.8*230*15.5/17 | Cassette Oil Seal | |
| 190*215*15.5/17 | Cassette Oil Seal | 12016896 |
| 190*220*16/18 | Cassette Oil Seal | 12017120 |
| 210*240*16/18 | Cassette Oil Seal | 12019114 |
| 220*265*19/21 | Cassette Oil Seal | 12019741 |
| 235*270*20/22 | Cassette Oil Seal | 12019336 |
Our Advantages:
1. We cooperate with first-class raw material suppliers in China and abroad, using the best raw materials. High quality NBR, silicon and FKM materials are imported from USA, Germany and Southeast Asia.
2. Top quality custom rubber products that can completely meet your needs.
3. Fast production & in-time delivery that never delay your project and usage.
4. One-stop custom service and value-added service to save your time and cost.
5. OEM/ODM Services are available. We can design and produce various Non-standard
Rubber Parts according to your PDF,3D or STEP drawing files.
6. All of rubber finished products are 100% inspected before shipment.
