Multi-turn Electric Actuators

By selecting a reliable electric actuator manufacturer and supplier in China, businesses can benefit from high-quality products, competitive pricing, and efficient valve automation solutions, ultimately enhancing their operational efficiency and productivity.

Product Description

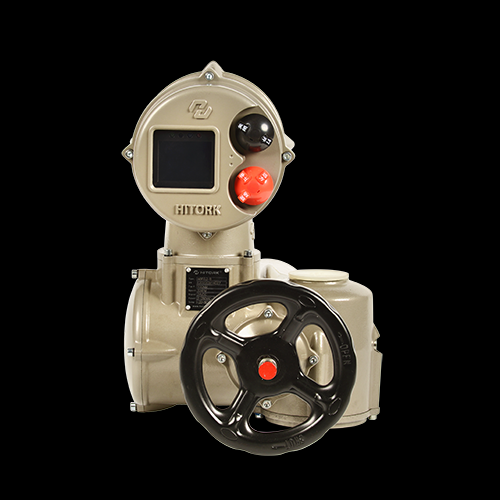

HITORK2.0 IoT HKM.2 multi-turn electric actuator can be used to control a variety of valves and other similar products, such as gate valves, globe valves, regulating valves, etc. which are widely used in power plant, petrochemical, water treatment, shipping, papermaking and other industries.

Product Introduction

>Light weight, small volume and high strength. The housing is made of special aluminum alloy.

>Absolute encoder for travel and torque, Non-intrusive setting—no cover removal required.

>Connect in accordance with ISO5210 standard.

>IP67(IP68 Option)

>Adaptive for bus, Bluetooth, Internet of things

>Plug-in type dual panel structure, double sealing, convenient wiring maintenance.

Technical Data

Model	On-off	Modulating		Speed @50HZ rpm	Shaft diameter mm	Rated power W	Rated current（A） @3PH AC380V 50Hz	Mounting Flange ISO5210	Weight Kg
Model	Rated Torque N.m	Rated Torque N.m	Modulating Torque N.m	Speed @50HZ rpm	Shaft diameter mm	Rated power W	Rated current（A） @3PH AC380V 50Hz	Mounting Flange ISO5210	Weight Kg
HKM03.2	30	30	15	32	Ф28	370	1.03	F10	27
HKM03.2	30	30	15	64	Ф28	370	1.58	F10	27
HKM03.2	18	18	9	128	Ф28	370	2.18	F10	27
HKM05.2	50	50	25	32	Ф28	370	1.22	F10	27
HKM05.2	50	50	25	64	Ф28	370	1.72	F10	27
HKM05.2	30	30	15	128	Ф28	370	2.31	F10	27
HKM10.2	100	100	50	32	Ф28	750	2.18	F10	29
HKM10.2	100	100	50	64	Ф28	750	2.97	F10	29
HKM10.2	60	60	30	128	Ф28	750	3.66	F10	29
HKM20.2	200	200	100	32	Ф28	1100	3.32	F10	31
HKM20.2	200	200	100	64	Ф28	1100	4.85	F10	31
HKM30.2	300	300	150	32	Ф36	1800	4.46	F14	41
HKM30.2	300	300	150	64	Ф36	1800	6.79	F14	41
HKM30.2	180	180	90	128	Ф36	1800	7.96	F14	41
HKM45.2	450	450	225	32	Ф36	2200	6.48	F14	43
HKM45.2	450	450	225	64	Ф36	2200	10.65	F14	43
HKM45.2	270	270	135	128	Ф36	2200	14.92	F14	43
HKM60.2	600			32	Ф36	2800	10.9	F14	45
HKM60.2	600			64	Ф36	2800	16.45	F14	45
HKM80.2	800	800	400	32	Ф44	4000	12.38	F16	86
HKM80.2	800	800	400	64	Ф44	4000	23.46	F16	86
HKM80.2	480	480	240	128	Ф44	4000	32.77	F16	86
HKM100.2	1000	1000	500	32	Ф60	5000	30.1	F16	88
HKM100.2	1000	1000	500	64	Ф60	5000	38.9	F16	88
HKM100.2	600	600	300	128	Ф60	5000	44.6	F16	88
HKM120.2	1200			32	Ф60	6000	38.33	F25	92
HKM120.2	1200			64	Ф60	6000	51.62	F25	92
Other parameters to be set according to the real working conditions
