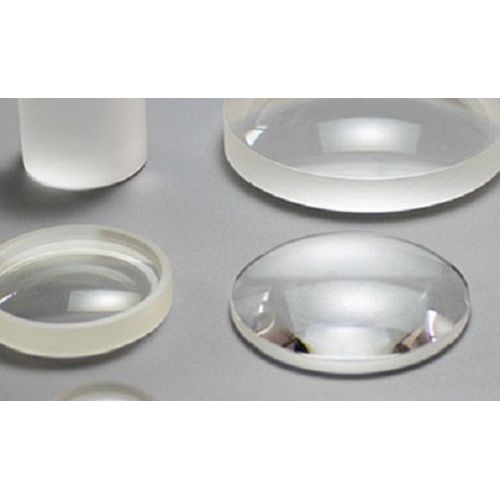

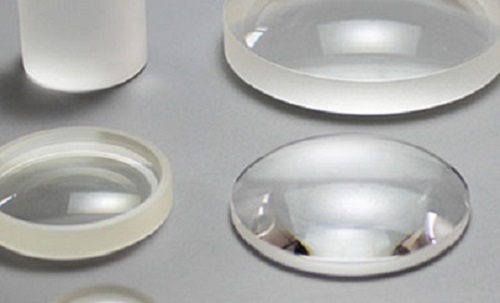

UV Grade Fused Silica Plano Convex Lens from CLZ Optics
For systems with less stringent image quality requirements, fused silica plano-convex lenses from CLZ Precision Optics can be used as simple imaging lenses.
Product Description
PRODUCT DESCRIPTION
Plano-Convex Lens is a convergent lens with one flat surface and one convex surface with a positive focal length. The PCX lenses are designed for infinite conjugate (parallel light) use or simple imaging in non-critical applications. These optic lenses are ideal for all-purpose focusing elements.
CLZ Optical manufacturing UV Grade Fused Silica plano-convex lens with high performance. Our plano convex lens are assure the surface accuracy with ZYGO Verifire Interferometer - 4". The lenses are precision manufactured using UV grade synthetic fused silica. We can provide coatings with antireflective coated on both faces with multilayer AR for 248-400nm use. However UV grade fused silica can be used efficiently at 185nm transmitting over 85%.
More about Plano-Concave Lens, please contact us.
Our manufacturing capabilities:
| Diameter (mm) | 8mm-200mm |
| Diameter Tolerance (mm) | 0.05mm0.02mm0.015mm |
| Center Thickness Tolerance(mm) | ±0.1mm±0.05mm±0.02mm |
| Radius (mm) | 5mm-∞ |
| Power/IRR (fringe) | Power: 1fringeIRR: 0.2 fringe (Best) |
| Surface Quality | 60-4040-2020-10 |
| Centering or Run Out | 30”(Dia.>15mm)1’(Dia.<15mm)Run Out: 0.002mm |
