Fully Automatic Pallet Wrapping Machine

An automatic pallet stretch wrapping machine is a device used to securely wrap palletized loads with stretch film. This machine automates the wrapping process, providing efficient and consistent results.

Product Description

Automatic Stretch Wrap Machine and Pallet Wrapping Machines

Fully automatic pallet stretch wrapping machine(also called automatic pallet wrapper) uses LLDPE stretch film as the main packing material to wrap the bulk cargos stacked on the pallet. Film provides extra support during transportation and storage to protect them from dust, moisture or damage automatically. The pallet wrapping machine has been widely used in industries such as glassware, tools, electric & electronic, paper,pottery, food & beverage, et.

Functions of automatic pallet wrapping machine

HOLD

The Automatic Pallet Stretch Wrapping Machine must hold the leading (trailing) edge of the stretch film to allow the start of the stretch wrapping cycle without the operator having to attach the stretch film to the load. Wraps the pallet load according to the set parameters.

Wrapping

The pallet wrapper must wrap the product according to the pallet wrapping parameters set by the operator on the stretch wrapper control panel. Attaching the film tail to the load

Cutting

Clean cutting of the stretch film at the end of the wrapping cycle. After completing the stretch wrap cycle, the stretch film must be cleanly cut from the pallet load and securely fastened in the fixture. In this way, the leading edge of the stretch film is correctly positioned to allow subsequent trays to be stretch wrapped.

APPLY

The trailing edge of the stretch film (trailing section) hanging from the pallet must be automatically applied to the load. Positive film tail treatment ensures that the sagging tail does not hang up or come apart during transport or at the customer's premises

Automatic Cut and Clamp Film

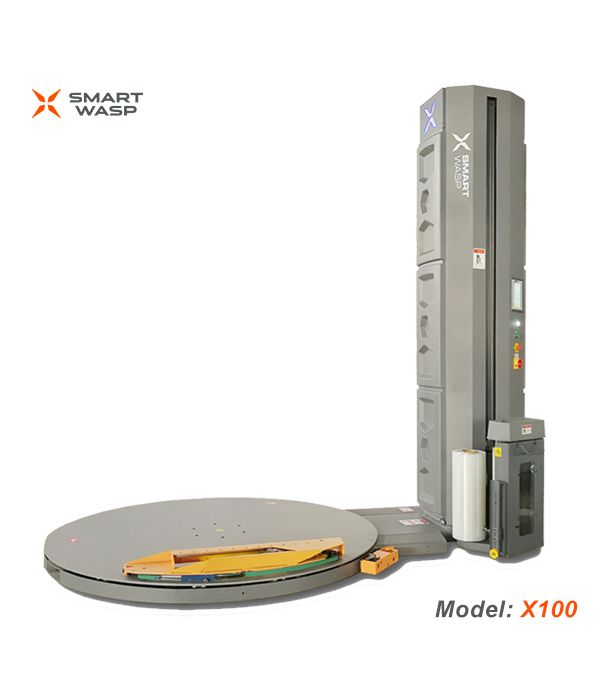

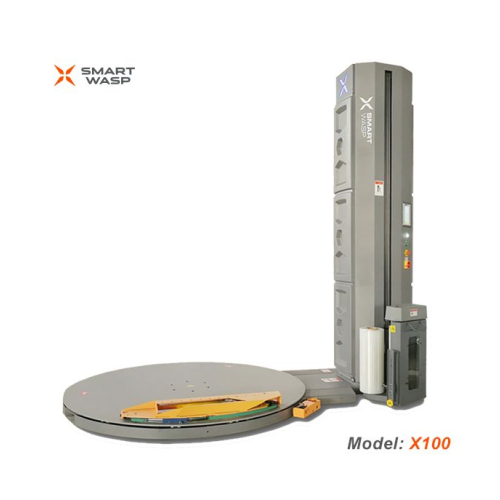

X100 automatic cut and clamp film pallet wrapper, let workers don't need to manually cut film and put film on pallet any more, cut & clamp fim system will do it automatically .

Pallet Grip System

1. Pallet grip system: film bottom narrowed to become film rope, film rope grip to pallet & products during wrapping.

2. During transporting, donn't need worry the products fall down when the pallets get violent vibration.

3. If the forklift damage the film on the bottom of pallet, the film will not break.

4. Pallet bottom grip and whole journey grip rope system can be instead of the horizontal strapping machine

Saving Film Consumption

1. Maximum up to 380% pre-stretch rate

2. Minimum the value of each meter of stretch film

3. Standard constant releasing film

4. Fixed-pointed wrapping quantitative use film

Multi-layer Function

This function can set different wrapping circles, wrapping force at any height that you want. Maximum one pallet can set 9 layers. Normal machines' wrapping force from bottom to top is the same in market, and they cannot stop or achieve reinforce wrapping function during wrapping.
