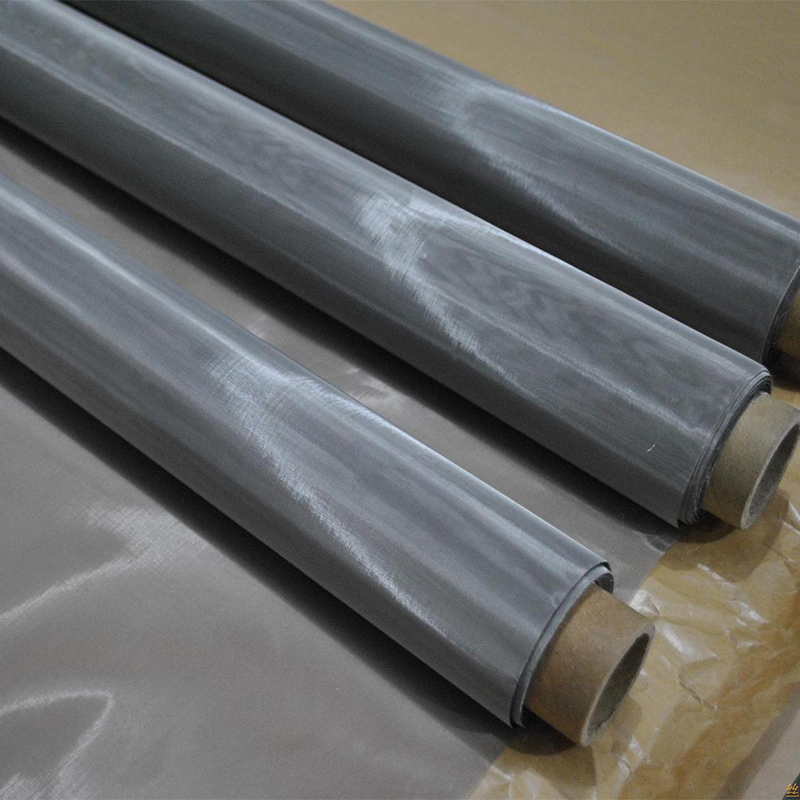

Stainless Steel Screen Printing Mesh

Stainless Steel Screen Printing Mesh

Product Description

Stainless Steel Screen Printing Mesh Description:


Stainless steel mesh for screen printing is a high-quality printing material that is widely used in various industries.


Stainless steel screen printing mesh is woven with precision using premium stainless steel wire, ensuring its durability and long-lasting performance. The smooth and even surface of this mesh makes it perfect for achieving high-resolution prints.



Stainless steel mesh for screen printing is particularly noted for its exceptional properties, such as high tension, super precision, low elongation, high flexibility, high corrosion resistance, good heat-melting resistance, and great solvent resistance. Primarily used in plate making for electronics printing, textile printing, ceramics printing, glass printing, and filtration in aviation, airspace, and petrochemical industries.



Details of Stainless steel printing mesh


Material: Stainless steel wire 304N, 304HP, 316, 316L, 430, etc.
Application: Woven wire mesh, Print mesh,Filter mesh
Types of Weave: Plain Weave, Twill Weave and Dutch Weave
Mesh count: 1-635 mesh
Diameter: 0.0008″-0.08″ (0.02-2.0 mm)
Standard width/roll: 3 ft, or 1 m in metric, 1.2m, 1.53m, customization available
Standard length/roll: 100 ft , or 30m in metric, customization available.



Stainless steel printing mesh most popular specification:

Stainless Steel Printing Mesh
Mesh Wire Dia. (MM) Opening (MM) Material (AISI)
80meshx80mesh 0.13 0.19 304 or316
90meshx90mesh 0.12 0.16 304 or316
100meshx100mesh 0.1 0.15 304 or316
120meshx120mesh 0.09 0.12 304 or316
150meshx150mesh 0.063 0.11 304 or316
180meshx180mesh 0.053 0.09 304 or316
200meshx200mesh 0.053 0.07 304 or316
250meshx250mesh 0.04 0.063 316
300meshx300mesh 0.04 0.044 316
325meshx325mesh 0.035 0.043 316L
350meshx350mesh 0.03 0.042 316L
400meshx400mesh 0.03 0.033 316L
450meshx450mesh 0.028 0.028 316L
500meshx500mesh 0.025 0.026 316L


Stainless steel screen printing mesh making Process:


The production process of our stainless steel screen printing mesh involves several meticulous steps.
First, the stainless steel wire is carefully selected to ensure its high quality. Then, the wire is woven into a mesh pattern using advanced weaving machines.
After weaving, the mesh is thoroughly inspected for any defects or imperfections.
Finally, it is treated with a special coating to enhance its corrosion resistance and improve ink adhesion.
