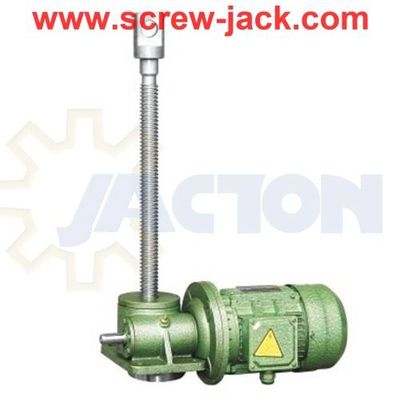

screw jack type solar tracker motor, wheel and screw drive for electric motor, motor specification f
Product Description
Payment：T/T,L/C
Minimum Order：1pc
Delivery：15 days
Origin：china
Packing：plywood case
Inspection：-
Samples：Charge
Product Description
Motorised screw jack driven motor types include electric motor, gear motor, gear reducer, hydraulic motor, pneumatic motor, explosion proof motor. Motor means asynchronous/induction motor and above motor no brake, if need,marked in purchase order/invoice.
Motorised screw jack suitable powers cover 1/8HP(90W), 1/6HP(120W), 1/4HP(180W), 1/3HP(250W), 1/2HP(370W), 3/4HP(550W), 1HP(750W), 1.5HP(1.1KW), 2HP(1.5KW), 3HP(2.2KW), 4HP(3KW), 5.5HP(4KW), 7.5HP(5.5KW), 10HP(7.5KW). Input power larger than 7.5KW, contact Jacton sales/engineers.
Motorised screw jack pole numbers include 4 poles and 6 poles. Under 4 poles motor, standard output 1500rpm-50hz, 1800rpm-60hz. Under 6 poles motor, standard output 1000rpm-50hz, 1200rpm-60hz. For gearmotor or gear reducer output RPM = electric motor output RPM / reduction gear ratio. Electric screw jack Lifting speed = final output RPM x travel length per full turn of input shaft.
Motorised screw jack allowable voltage,phases and hertz includes 380V-3 Phases-50HZ, 220V-3 Phases-50HZ, 400V-3 Phases-50HZ, 415V-3 Phases-50HZ, 440V-3 Phases-50HZ, 480V-3 Phases-50HZ, 220V-3 Phases-60HZ, 240V-3 Phases-60HZ, 480V-3 Phases-60HZ, 110V-Single Phase-60HZ, 120V-Single Phase-60HZ, 220V-Single Phase-50HZ, 230V-Single Phase-50HZ, 240V-Single Phase-50HZ. For special application, for example solar tracker industry, most of engineers or designers prefer to use 24V, 36V, 48V DC motor with gear reducer direct connected worm gear screw jack.
Motorised screw jack mounting type includes b3 foot mounting, b5 flange mounting and b14 face mounting. Suitable IEC motor frame sizes 56, 63, 71, 80, 90S, 90L, 100L, 112M, 132S, 132M.
Motorised screw jack suitable powers cover 1/8HP(90W), 1/6HP(120W), 1/4HP(180W), 1/3HP(250W), 1/2HP(370W), 3/4HP(550W), 1HP(750W), 1.5HP(1.1KW), 2HP(1.5KW), 3HP(2.2KW), 4HP(3KW), 5.5HP(4KW), 7.5HP(5.5KW), 10HP(7.5KW). Input power larger than 7.5KW, contact Jacton sales/engineers.
Motorised screw jack pole numbers include 4 poles and 6 poles. Under 4 poles motor, standard output 1500rpm-50hz, 1800rpm-60hz. Under 6 poles motor, standard output 1000rpm-50hz, 1200rpm-60hz. For gearmotor or gear reducer output RPM = electric motor output RPM / reduction gear ratio. Electric screw jack Lifting speed = final output RPM x travel length per full turn of input shaft.
Motorised screw jack allowable voltage,phases and hertz includes 380V-3 Phases-50HZ, 220V-3 Phases-50HZ, 400V-3 Phases-50HZ, 415V-3 Phases-50HZ, 440V-3 Phases-50HZ, 480V-3 Phases-50HZ, 220V-3 Phases-60HZ, 240V-3 Phases-60HZ, 480V-3 Phases-60HZ, 110V-Single Phase-60HZ, 120V-Single Phase-60HZ, 220V-Single Phase-50HZ, 230V-Single Phase-50HZ, 240V-Single Phase-50HZ. For special application, for example solar tracker industry, most of engineers or designers prefer to use 24V, 36V, 48V DC motor with gear reducer direct connected worm gear screw jack.
Motorised screw jack mounting type includes b3 foot mounting, b5 flange mounting and b14 face mounting. Suitable IEC motor frame sizes 56, 63, 71, 80, 90S, 90L, 100L, 112M, 132S, 132M.
Product Feature
suitable powers cover 1/8HP(90W), 1/6HP(120W), 1/4HP(180W), 1/3HP(250W), 1/2HP(370W), 3/4HP(550W), 1HP(750W), 1.5HP(1.1KW), 2HP(1.5KW), 3HP(2.2KW), 4HP(3KW), 5.5HP(4KW), 7.5HP(5.5KW), 10HP(7.5KW).
Product Specification / Models
JTM2.5-JTM1000
Application / Models
applications in solar panel tracking system, satellite dish antenna azimuth and elevation, sluice gate lifting mechanism, theatre stage lift system and orchestra pit lifts, screw scissor lift table, railway maintenance lifting jack, coil sheet slitter, drop table synchronized lifting system, spray infeed conveyor lift system, damper adjustment, welding positioning equipment, continuous casting, welding positioner, headbox adjustment, adjust sawmills saw blade, slip form paver, oven conveyor, lifting railway, roller gap adjustment, pu or pir discontinuous for freezing and refrigeration panel, vacuum furnace lid lifter, calendar stack, palletizer, extrusion machine, hydraulic cylinder replacement, blow molding machine and anywhere required raising, lowering, pulling, pushing and rolling linear motions.
