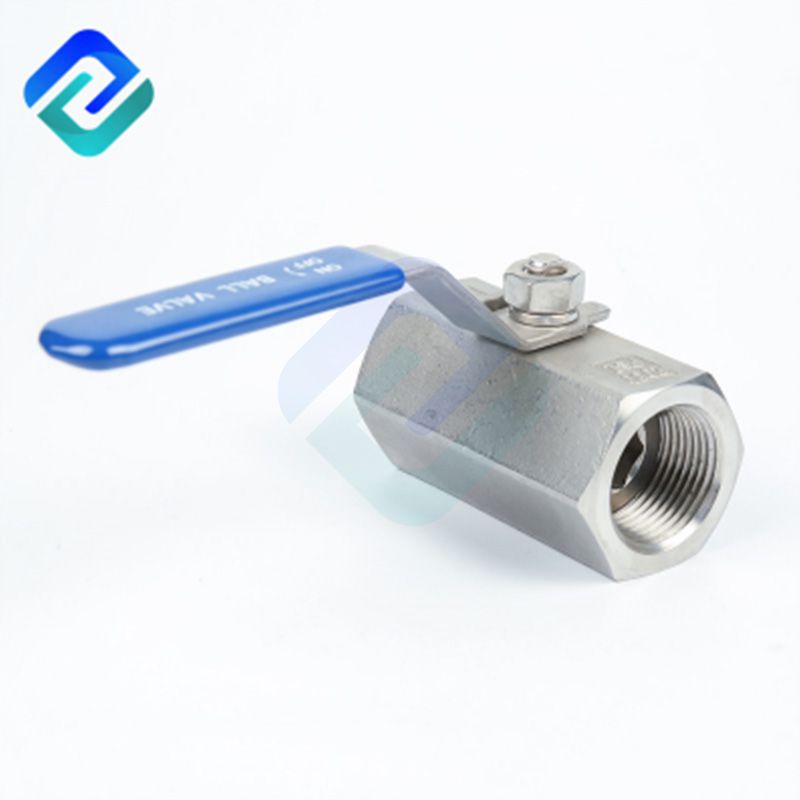

Stainless Steel 1-PC Ball Valve
1-pc ball valve is known for their durability and reliability. They are typically made of metal, such as brass or stainless steel, which ensures resistance to corrosion and provides strength to withstand high pressures and temperatures.
Product Description
1-PC Ball Valve
1-pc ball valve is known for their durability and reliability. They are typically made of metal, such as brass or stainless steel, which ensures resistance to corrosion and provides strength to withstand high pressures and temperatures. The one-piece design eliminates the need for multiple pieces or connections, reducing the risk of leakage and improving the overall integrity of the valve. Stainless steel 1-pc ball valve is suitable for PN1.0 ~ 4.0MPA, working temperature -29 ~ 180 ℃ (the sealing ring is reinforced polytetrafluoroethylene) Or -29 ~ 300 ℃ (the sealing ring is para-polyphenyl) for various pipelines, used for the medium in the stage or connecting the pipeline, choose different materials, can be suitable for water, steam, oil, nitric acid , Acetic acid and other media.
Stainless steel one-piece ball valve is a relatively new type of ball valve, which has some advantages of its own structure, such as no friction of the switch, the seal is not easy to wear, and the opening and closing torque is small.
These 1 piece ball valves are often used in applications where a simple on/off control of the flow is required. They are commonly found in plumbing systems, water treatment plants, oil and gas pipelines, and industrial processes. 1-PC ball valves are easy to operate, requiring a quarter turn of the handle or lever to open or close the valve.
Bar Stock for body and Investment Casting for Cap
Internal Entry Blow-Out Proof Stem
Pressure Rating: 2000PSI (PN125)
Thread End: ANSI B2.1, BS21, ISO7/1
Working Temperature: -25℃+180℃
Material: WCB
Inspection Testing: API 598, EN 12266
Dimension of this Cheap 1 Piece Ball Valve:
| Size | A | Φ d | L | H | W | N.M | KGS | |
| DN6 | 1/4” | 20 | 6 | 42 | 34 | 73 | 4 | 0.12 |
| DN10 | 3/8” | 25 | 8 | 45 | 37 | 73 | 4 | 0.19 |
| DN15 | 1/2” | 30 | 10 | 62 | 50 | 115 | 6 | 0.32 |
| DN20 | 3/4” | 36 | 11.5 | 70 | 58 | 115 | 6 | 0.48 |
| DN25 | 1” | 41(46) | 16 | 85.5 | 62 | 129 | 8 | 0.7(0.95) |
| DN32 | 1-1/4” | 53 | 20 | 94 | 64 | 129 | 10 | 1.33 |
| DN40 | 1-1/2” | 60 | 26 | 101 | 71 | 150 | 14 | 1.87 |
| DN50 | 2” | 70(75) | 32 | 113 | 80 | 150 | 20 | 2.32(2.95) |
Drawings of One-Piece Ball Valve:
Meterial of stainless steel 1-PC ball valve:
| ITEM | PART | MATERIAL | QTY |
| 1 | BODY | CARBON STEEL | 1 |
| 2 | CAP | WCB | 1 |
| 3 | SEAL | PTFE | 1 |
| 4 | BALL | 304 | 1 |
| 5 | SEAT | PTFE | 2 |
| 6 | STEM | 304 | 1 |
| 7 | THRUST WASHER | PTFE | 1 |
| 8 | PACKING | PTFE | 1 |
| 9 | GLAND NUT | 304 | 1 |
| 10 | NUT | 304 | 2 |
| 11 | HANDLE | GALVANIEED CS | 1 |
| 12 | HANDLE COVER | PLASTIC | 1 |
We are a 1 piece ball valve factory, welcome to contact us!
The Manufacturing Factory of 1-PC Stainless Steel Ball Valve
