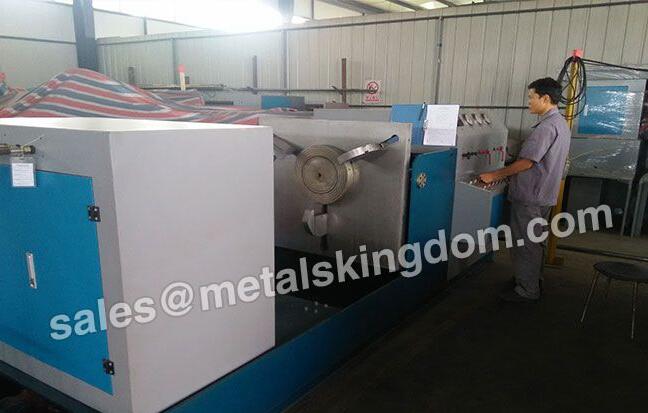

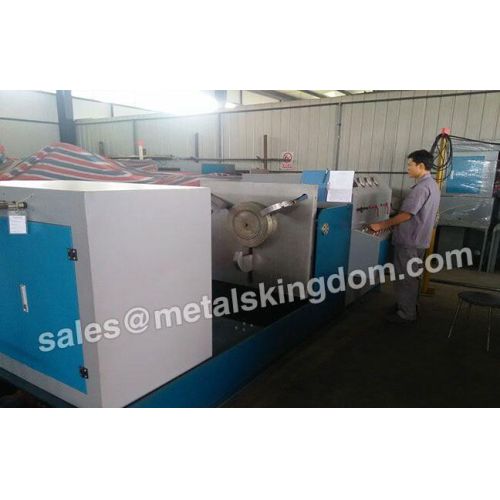

Horizontal Type SYTW600/5-32 Top Pressure Valve Test Bench
Pressure Valve Test Bench
Product Description
1.Product characteristics and application:
This Pressure Valve Test Bench is designed and manufactured with reference to similar products of Germany and GB4981 standard,It is suitable for sealing test of straight-through welded valves and straight- through flange connection valves , before and after installation. It is suitable for shell test, sealing test (low pressure sealing test and high pressure sealing test) and upper seal test (ISO5208) for GB4981, in order to prevent faulty valves from entering work site.
Features: simple operation, safe and reliable, sensitive test.
2.Horizontal Type Valve Test Bench Features:
1) Applicable to gate valve,globe valve,ball valve,Check valve and etc direct-flange connection valves
2) Accessories special sealing disc is applicable to test welded valve’s performance
3) Valve clamping type is up pressure,clamp is through press on the sides of direct-flange connection valves
4) Standard equips with High and low pressure water pump pressure systems,gas supercharging is selection
3. Technical parameters:
| Valve Nominal Diameter DN | 100-600mm(straight-through Flange connection valves) |
| Maximium Test Pressure PN | 31.5Mpa(4500LB) Max |
| Nominal Voltage | Exchange 380V |
| Rated Power | 8.5KW |
| Line Voltage | Exchange 220V/24V |
| Hydraulic oil |
N46 hydraulic Oil(provide by user The oil temperature is Max 60 degrees centigrade , Min 5 degrees centigrade |
| Oil circuit system Pressure | 28Mpa max |
| Test Medium |
Water(Allows to add rust inhibitor) kerosene or other liquid it’s viscosity not higher than water |
| Test temperature(Envioment Temp) | 5 degree centigrade to 40 degree centigrade |
| Transverse clamping Length scope | 950mm |
| Radial distance | 100-1350mm |
| Max Clamping Force | 220(T) |
| Weight | 4.5tons |
| Size | 3900×1410×1450(mm) |
