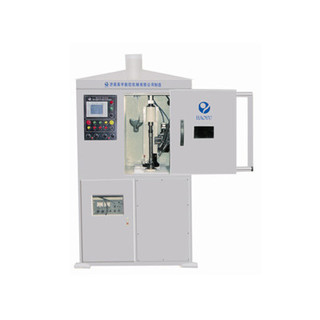

Steering Gear Shield Bracket Spot Welding Machine
Product Description
Specifications
Description
Parameters:
Turntable speed 0.5-5r.p.m stepless regulated
Welding current 50-350A，60% duty ratio
Welding gun up and down travel 100mm
Welding gun left and right, forward and backward adjustment0 ～ 50mm
Welding gun tilting angle 30 º ～ 50º
Workpiece dimensions (length×diameter ) 300mm×50 mm
Characteristics:
It’s used in spot welding of column pipe assembly upper bracket in steering gear components.
Welding gun moves up and down, while workpiece rotates. Both the gun and the workpiece coordinate to finish multi-spot welding.
Double actuating device is used, column pipe subassembly and upper bracket rotate synchronously, to make sure the seam position does not deviate.
PLC controls the whole machine to work. Two-axis CNC system controls workpiece to rotate and welding gun to move up and down, improves machine reliability.
Welding mode and welding specifications can be preset, memorized and called.
Turntable speed 0.5-5r.p.m stepless regulated
Welding current 50-350A，60% duty ratio
Welding gun up and down travel 100mm
Welding gun left and right, forward and backward adjustment0 ～ 50mm
Welding gun tilting angle 30 º ～ 50º
Workpiece dimensions (length×diameter ) 300mm×50 mm
Characteristics:
It’s used in spot welding of column pipe assembly upper bracket in steering gear components.
Welding gun moves up and down, while workpiece rotates. Both the gun and the workpiece coordinate to finish multi-spot welding.
Double actuating device is used, column pipe subassembly and upper bracket rotate synchronously, to make sure the seam position does not deviate.
PLC controls the whole machine to work. Two-axis CNC system controls workpiece to rotate and welding gun to move up and down, improves machine reliability.
Welding mode and welding specifications can be preset, memorized and called.
Terms
| FOB Price: | price negotiable |
| Minimum Order: | 1set |
| Port: | Tsingdao |
| Payment Terms: | FOB/CIF |
