Submersible Slurry Pump
Product Description
Delivery：accoridng to order
Origin：China
Packing：Iron frame
Inspection：-
Submersible Slurry Pump
Solid Control Equipment

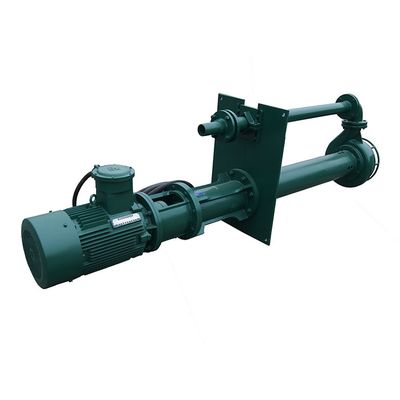

Submersible Slurry Pump for Heavy Oil
Submersible slurry pump is used in oil drilling solids control system, pumping concentrated liquid, heavy oil , oil impurities, dirty fluid, mud and silt containing slag material and corrosive liquids. Submersible slurry pumps produced by DC have the advantages of high efficiency, maintenance free.heat-resistant , long service life , etc.
(1) Geometry of flow components conform to the flow regime of medium, reducing hydraulic losses caused by eddy and impact of local and on-way.
(2) Adopt power step-down to ensure no leakage of the slurry.
(3) Pump flow components adopt high hard alloy casting , the material have the advantages of high wear resistance, corrosion resistance ,impact resistance and long service life.
Submersible Slurry Pump Parameters
Model | Flow | Lift(m) | Speed(rpm) | Efficiency (%) | Power(kW) | Dimension(mm) | Weight (Kg) | |
m3/h | L/S | |||||||
DC50YZ20-18A | 10 | 2.8 | 10 | 1430 | 42 | 2.2 | 2710×500×720 | 364 |
DC50YZ20-18 | 20 | 5.6 | 18 | 1430 | 42 | 3 | 2710×500×720 | 366 |
DC50YZ20-18 | 30 | 8.4 | 10 | 1430 | 47 | 4 | 2730×500×720 | 388 |
