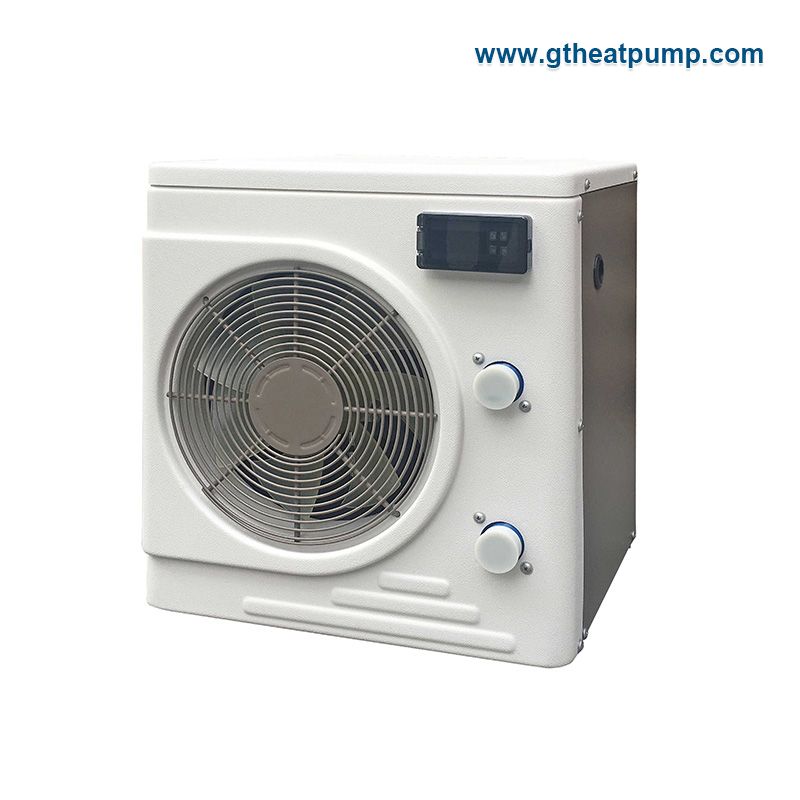

Mini Heat Pump for Pool
The mini heat pumps are the new models of heat pumps available in the swiming pool market. These heat pumps are installed very easily and do not require previous installation and specify a By-pass. It is a Plug & Play product that is placed on the same circuit as the pool filtration.
Product Description
The Mini Heat Pump for Pool is the new models of heat pumps available in the swiming pool market. These heat pumps are installed very easily and do not require previous installation and specify a By-pass. It is a Plug & Play product that is placed on the same circuit as the pool filtration. They are economic and very effective.
Mini Swimming Pool Heat Pump For Spa, Jacuzzi, Above-Ground Pool
Technical Data:
Mini Pool Heat Pumps
| Model number | GT-SKR007Y-M | |
| Heating at A24/W28 | ||
| Heating capacity | kW | 3.30 |
| Power input | kW | 0.55 |
| COP | W/W | 6.00 |
| Heating at A15/W28 | ||
| Heating capacity | kW | 2.75 |
| Power input | kW | 0.52 |
| COP | W/W | 5.29 |
| Power supply | V/Ph/Hz | 220-240/1/50 |
| Compressor type | N/A | Rotary |
| Compressor quantity | pc | 1 |
| Fan type | N/A | Axial |
| Fan quantity | pc | 1 |
| Refrigerant | N/A | R32 |
| Heat exhanger | N/A | Titanium heat exchanger |
| Water connection | Inch | 1 |
| Sound level | dB(A) | 50 |
| Max water temperature | β | 40 |
| Outdoor operating temp. | β | Min.: -7/Max.:+39 |
| Degree of protection | N/A | IPX4 |
| Net weight | kg | 17 |
| Dimension (L*W*H) | mm | 400*315*450 |
The mini pool heat pump can be installed in any type of pool: wood, steel, composite, inflatable or tubular. They are also suitable for small and medium-sized pools, such as pumps for movable pools: steel pools, wooden pools, composite pools, tubular water Pools, small above-ground swimming pools, hot tubs and spas and even inflatable pools.
If you want to know more information about mini pool heat pump, please contact us. Guangteng will provide professional answers.
