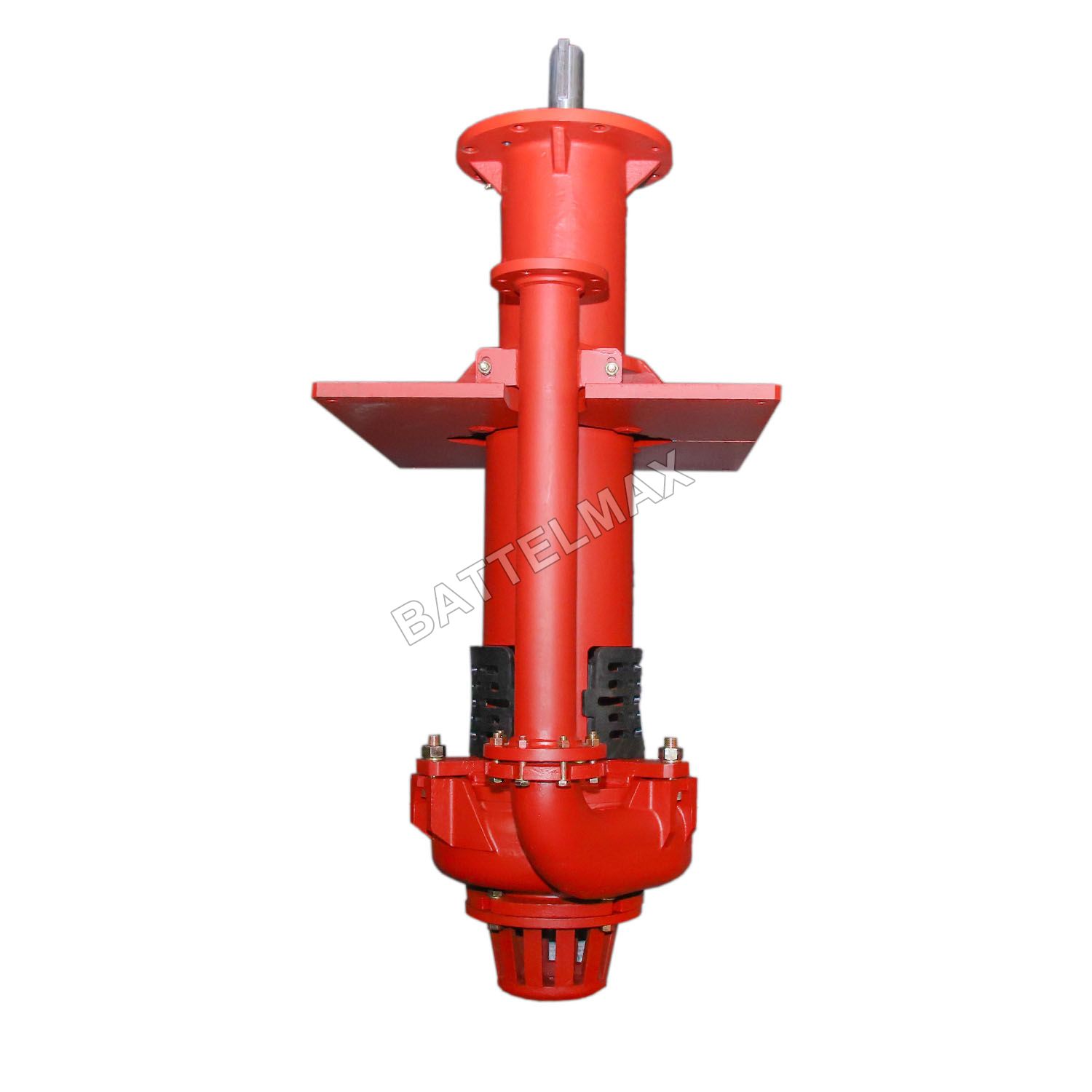

HC-V series vertical centrifugal pump

Product Description

HC-V series pumps are vertical, centrifugal slurry pumps submerged in sump to work. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties.

Welcome to our comprehensive guide on the HC-V Series Vertical Centrifugal Pump - a cutting-edge solution for your industrial fluid handling needs. HC-V series pumps are vertical, centrifugal slurry pumps submerged in sump to work. These pumps have no need of any shaft seal and sealing water. They can also be operated normally for insufficient suction duties. The pump casing of HC- V/VR pumps are made of wear-resistant metal.

According to liquid surface of the slurry pool, the High quality slurry pumps transmission shaft and suction pipe could be chosen. The pump could operate under the best condition with different speed.

Application

They are designed for delivering abrasive, large particle and high-density slurries and applied over the fields such as metallurgy, mining, coal, power, building materials, and environmental protection.

Model Explanation

SP150-S-HC

SP: Sump pump

150: Discharge diameter (mm)

S: Bearing assembly type

HC: Shijiazhuang HongChang Pump Co., Ltd.

No.	Pump Model	SP-V SERIES SUMP PUMP						Impeller Diameter (mm)	Motor Power range （KW）
		Allowable mating Max. Power (kw)	Clear Water Performance
			Capacity Q		Head	Speed n/(r/min)	Eff. η%
			m3/h	1/s	H(m)	Speed n/(r/min)	Eff. η%
1	SP40-P-HC	15	7.2-39.6	2-11	4.3-27.4	1000-2200	40	188	4-11
2	SP65-Q-HC	30	19-102.6	5.3-28.5	5-30.8	700-1500	50	280	2.2-22
3	SP100-R-HC	75	41.5-259.2	11.5-72	5.1-36	500-1200	56	370	3-45
4	SP150-S-HC	110	115.2-576	32-160	6.7-35.7	500-1000	52	450	11-90
5	SP200-T-HC	110	180-734.4	50-204	6-28.2	400-740	64	520	11-45
6	SP250-T-HC	200	261-1089	72.5-302.5	7.5-33.5	400-750	60	575
7	SP300-T-HC	200	288-1267	80-352	6.5-33	350-700	50	610

Trust in our expertise and experience as you embrace the power of the Slurry pumps in your industrial operations. Contact us today to elevate your slurry handling efficiency to new heights!
