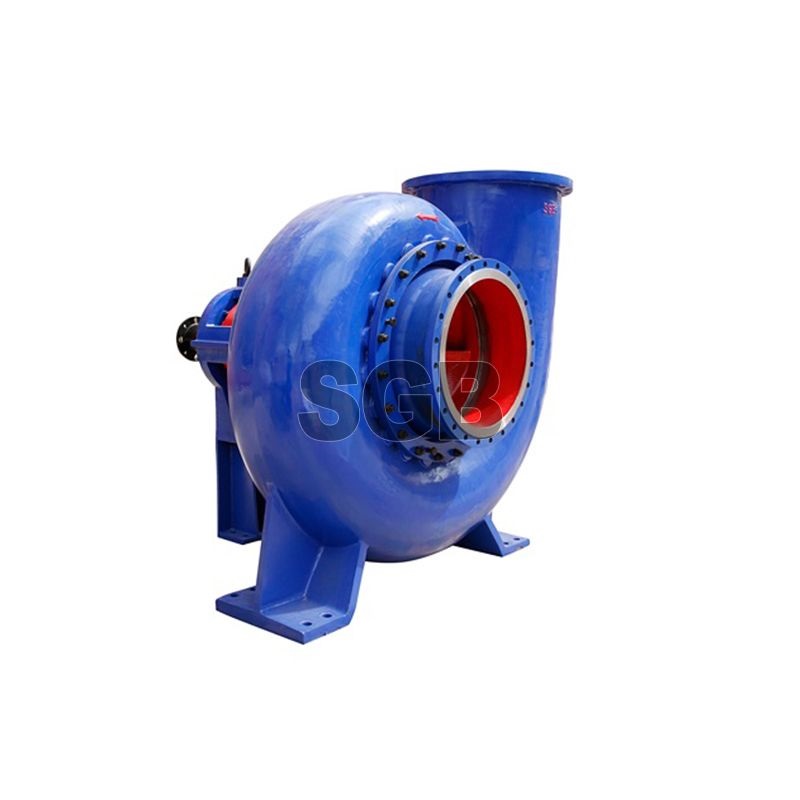

Dredger Pumps

As one of professional dredge pump manufacturers, SGB provide sand dredge pumps with high quality. A dredge pump is a horizontal centrifugal pump and is the heartbeat of a dredge.

Product Description

As one of professional dredge pump manufacturers, SGB provide sand dredge pumps with high quality. A dredge pump is a horizontal centrifugal pump and is the heartbeat of a dredge. The dredge pump is designed to take in sediment, debris, and other harmful materials from the surface floor into a suction pipe, carrying the material to a discharge site through a pipeline.

Pump Features

- Advanced hydraulic model, CAD-aided design, high efficiency and remarkable energy-saving effect.

- Strong flow capacity. The pump can pump gravel, high plastic clay lumps and so on. Dredge pump is generally equipped with three vanes or five vanes, used to handle different particle size respectively.

- Strong matching capacity. The diesel engine and the motor are both available.

- Small size, light weight.The whole machine and every component of the dredge pump all adopt optimization design and strength analysis, this can greatly reduce  the pump weight by minimizing unnecessary auxiliary structure and process structure on the premise of satisfying the performance and  application requirements.

- Stable running. small vibration and low noise. The dredge pump uses high-level static balance , optimum speed and auxiliary support structure of pump head to ensure  stable operation during the production process of impeller. The pump has good cavitation performance to ensure strong suction capacity. greater dredged depth and higher concentration of inhalation medium.

- Simple structure, easy to dismantle and maintain.As a whole, the Sand dredge pump is single-stage, single-suction horizontal and cantilever structure. It can also be disassembled from the front  part. So the pump is easy to dismantle and maintain, the parts of the pump are good in exchangeability.

- The parts have long service life.The parts are made of high chromium wear-resistant alloy whose maximum hardness is more than 60HRC, and they have long service life.

- Reliable seal, no leakage.The O-rings are used on all static seal surfaces, such as between casing and front liner plate, casing and rear liner plate, rear liner plate and  stuffing box, ; the shaft seal uses mechanical seal with water or packing seal to ensure normal operation for a long time.

- The whole machine has high reliability and remarkable economic benefits.In the design process of the whole machine, every problem-prone part needs full consideration and optimization design to greatly raise  trouble-free working time. The pump has advantages of simple structure and easy to dismantle and maintain. This can reduce lahor  intensity and workload, and increase economic benefits.

- The steep drop type of performance curve. The head and capacity curves of N series dredge pump drop steeply, so the pump has strong adaptability to changes of spoiling distance.

N Series Anti-abrasion Dredger Pump

Technical Specifications

Performance and Main Technical Datas of N Series Pumps

Model

Q

Capacity

(m3/h)

H

Head

(m)

n

Speed

(r/min)

Max.eff.

(%)

Inlet Diameter

(mm)

Outlet Diameter

(mm)

(NPSH)r

(m)

Particle max. size handled occasionally

(mm)

100ND

100-250

20-50

800-980

65-70

150

100

< 3.0

50

150ND

240-650

24-61

980-1480

62.5-71.7

250

150

< 3.5

70

200ND

610-1560

29-62

650-900

61-62.4

250

200

< 4.5

143

250N

720-1800

30-75

500-750

65-76

350

250

< 4.0

125

250ND

600-2000

21-59

490-740

68.5-79.8

350

250

< 4.0

146

300N

1600-2200

40-65

400-550

72-78

400

300

< 4.5

135

300ND

1500-3750

29-65

400-550

69-73

420

300

< 4.5

201

350ND

1700-2750

24-58

400-590

77-81

450

350

< 4.0

122

450N

3150-6500

40-65

350-500

74-80

600

450

< 4.5

220

450ND

3100-5200

30-66

350-490

68.5-75.2

600

450

< 4.5

115

500N

5900-9100

40-75

350-450

74-80

650

500

< 4.8

245

500ND

4000-7000

20-41

220-325

75-82

650

500

< 4.5

203

600N

6500-12000

45-70

300-400

78-84

700

600

< 4.8

240

600ND

4800-8900

20-42

350-420

82-85

700

600

< 4.6

240

650ND

8500-14300

23-65

300-450

82.3-85

800

650

< 4.6

256

700N

10500-16400

40-75

300-380

80-85

800

700

< 6.0

260

700ND

8000-13000

20-45

240-280

81-84

800

700

< 5.3

260

800N

14500-21800

55-80

300-360

81-85

900

800

< 6.0

275

800ND

9700-15400

20-40

200-280

82-84

900

800

< 5.3

275

900N

21000-31000

45-70

200-280

80-85

1000

900

< 5.8

300

900ND

12000-21500

20-40

160-210

82-88

1100

1000

< 6.0

300

1000N

24350-39000

26-78

210-290

82-85

1100

1000

< 6.0

320
