40PV-TSP(R) Vertical Slurry Pump

40PV-TSP(R) Slurry Pump is ideal for a variety of submerged suction pumping applications. The vertical slurry pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms.

Product Description

40PV-TSP(R) Slurry Pump is ideal for a variety of submerged suction pumping applications. The vertical slurry pumps operate well in a variety of sump conditions, and can also be readily applied on floating dewatering or other floating pump platforms.

As a true cantilevered vertical slurry pump, the SP Series does not have submerged bearings or seals, thus, eliminating the primary failure mechanism for similarly fielded pump lines. 40PV-TSP(R) Vertical pumps not only provide excellent wear life properties, they also operate efficiently to further reduce operating costs.

40PV-TSP(R) vertical slurry pump can be fully elastomer lined or hard metal fitted. There are no submerged bearings or packing with a unique high capacity double suction design. Optional recessed impeller and suction agitator are available.



40PV-TSP(R) Slurry Pump Performance Parameters

Model

40PV-TSP(R)

Position of Pump Shaft

Vertical pump

Impeller

Open

Color

Any color

Certificate

ISO, SGS

HS Code of pump

8413709990

Capacity(Flow)

17~43.2m³/h

Head

4-28.5m

Number of Revolutions

1000-2200RPM

Motor power

Max 15kw



TSP(R) Vertical Slurry Pump Structure

This Ruite Pump not only provide excellent wear life properties, they also operate efficiently to further reduce operating costs. These vertical slurry pumps can be fully elastomer lined or hard metal fitted. There are no submerged bearings or packing with a unique high capacity double suction design. Optional recessed impeller and suction agitator are available.

Standard Type                     Extension Type

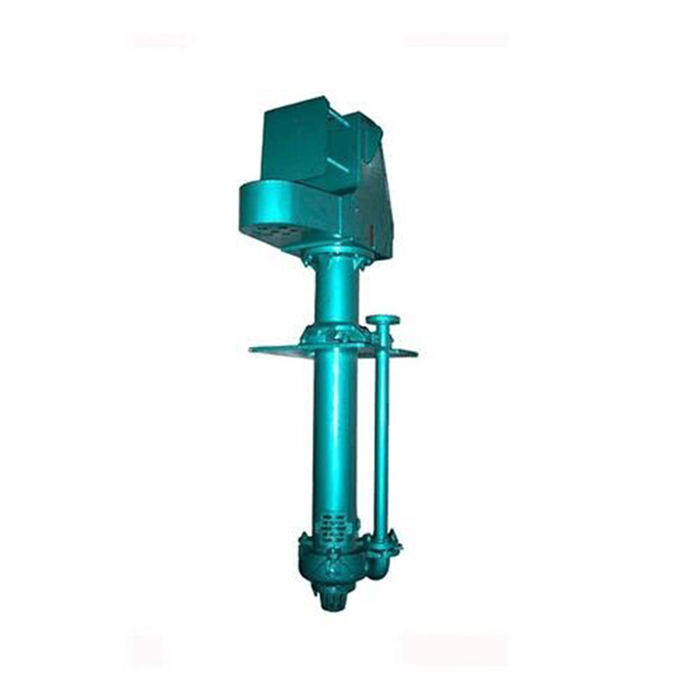

40PV-TSP(R) Vertical Slurry Pump
