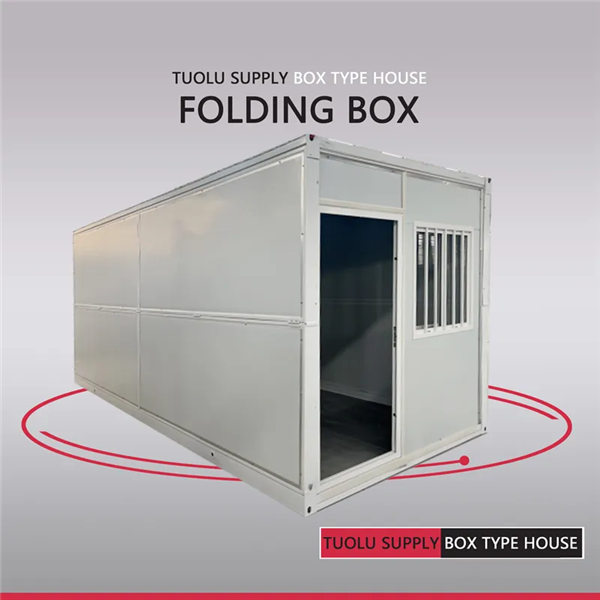

Prefabricated Container House
Prefabricated Container House
Product Description
Prefabricated container houses are ultra-portable, offering quick setup and teardown. These compact, foldable units maximize space with minimal environmental footprint, ideal for temporary or remote accommodations. Prefab Modular Container Home is an innovative building solution that combines the advantages of traditional residential design with modern manufacturing. This type of house is manufactured in a factory to precise standards and then transported to the site for rapid assembly. This construction method not only improves efficiency and reduces construction time, but also ensures high quality and consistency.
Parameter
| Folding box standard box configuration details 5800*2438*2530 | ||||
| Component Name | designation | unit | quantity | |
| Main body 2.0 thick | Top frame | Formed crossbeam, galvanised, zinc plated 80g/㎡, 170 wide by 5633mm long | PCS | 2 |
| Formed beams galvanised, 80g/㎡ zinc plated, 170 wide by 2688mm long | PCS | 2 | ||
| 1.2mm 80C profile, galvanised 80g/㎡ | PCS | 7 | ||
| 20*20*1.2mm square tube, galvanised 80g/㎡ | PCS | 2 | ||
| 8mm top corner piece, 4.0mm wall thickness, 210*150*200mm | PCS | 4 | ||
| Bottom frame | Formed crossbeam, galvanised 80g/㎡, 160 wide by 5633mm long | PCS | 2 | |
| Crossbeam, galvanised, 80g/㎡, 160 wide by 2688mm long | PCS | 2 | ||
| Lower crossbeam angle flashing, 5630mm | PCS | 2 | ||
| Lower crossbeam angle flooding, 2685mm | PCS | 2 | ||
| 50*100*1.1mm galvanised square tube cross brace, galvanised 80g/㎡ | PCS | 9 | ||
| 8mm lower corner piece, 4.0mm wall thickness, 210*150*160mm | PCS | 4 | ||
| Columns | Column, galvanised, 80g/㎡, 210 wide, 150 wide 2530mm long | PCS | 4 | |
| Connector 8.0mm, galvanised 80g/㎡ | PCS | 8 | ||
| L-shaped column reinforcement | PCS | 8 | ||
| Single tile capping | 0.4mm colour steel single tile, 360 degrees bite, special waterproof method | Sets | 1 | |
| Glass wool | 50mm glass wool insulation quilt + tin foil + wire mesh | Sets | 1 | |
| Colours | Electrostatic spraying outdoor special paint, baking paint process, 5 years without discolouration | Sets | 1 | |
| Bolts | Hexagonal (galvanised) | PCS | 48 | |
| Angle iron | PCS | 3 | ||
| Chute + Wheel | Sets | 2 | ||
| 50 galvanised channel | M | 37.5 | ||
| drainpipe | drainpipe | 50drainpipe | PCS | 4 |
| suspended ceiling | Ceiling Tiles | 0.3mm, 831 colour steel integrated ceiling panel | PCS | 7 |
| Z-type parts | Z-angle, 5760mm | PCS | 2 | |
| Z-angle, 2780mm | PCS | 2 | ||
| wallboard | wallboard | Type 1150/50 thick wall panelling Inside flat. Outer Orange Peel | M | 37 |
| roofing | shady corner | Colour steel corner, whitewash | PCS | 4 |
| floor | Cement Board | 1175*2822mm | PCS | 5 |
| Plastic flooring | 1.6mm, anti-friction and non-slip plastic | PCS | 1 | |
| Door | steel door | 970*1970 (1150 wall panels) | PCS | 1 |
| Window | moulded window | 1150*1100 sliding window (1150 wall panel) | Sets | 1 |
| Wiring | All power distribution | Industrial sockets 1 set; Leakage protection 1 set; Three-hole and five-hole socket + light switch 1 set; Lighting 1 set. |
Sets | 1 |
