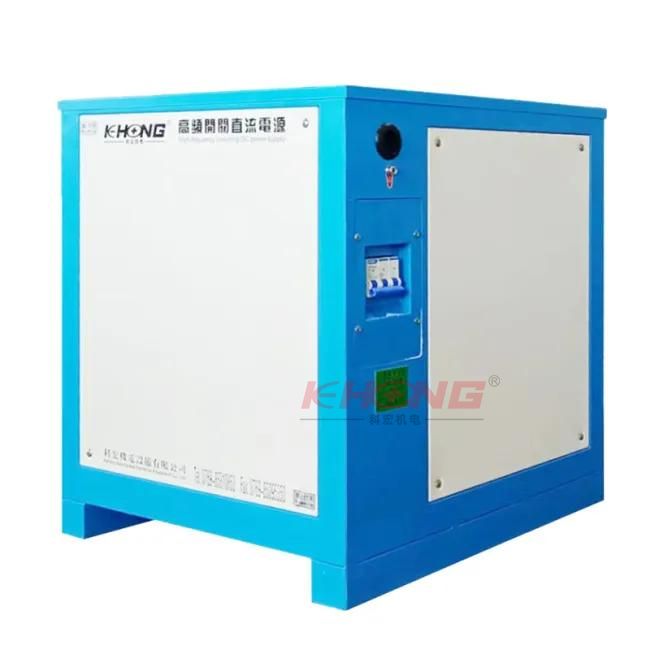

300A 15VElectroplating electrolytic rectifier

The 300A Electroplating Rectifier For Sale from Kehong is a robust and efficient power solution meticulously designed to deliver reliable direct current power. It integrates innovative technology, superior design, and user-friendly features to ensure consistent and efficient power output for various electroplating applications.

Key Features:

1. Flexible Electroplating Rectifier Specifications: The power supply offers a specification of 15V-300A. It features an adjustable DC output voltage of 0-15V and an adjustable output current of 0-300A, both displayed digitally.

2. Versatile Input Voltage: The standard input voltage is 380V3P/50Hz, with customization options available for 220V3P, 415V3P/50~60Hz. It operates within an error value of ±10%, with a rated power ranging from 0 to 4.5KW.

3. Dual Output Mode: The power supply features steady pressure and steady flow conversion modes. Its primary cooling mode is water cooling, but air cooling is also available as an option.

4. High Output Frequency: The power supply outputs a frequency of 20~35KHz, with a ripple coefficient of approximately 3.5%.

5. Comprehensive Protection Technology: Electroplating Rectifier incorporates advanced protection features such as automatic protection at 70℃, over-current protection, over-voltage protection, and phase-lack protection.

6. Remote Control Operation: Electroplating Rectifier For Sale can be operated via a remote control box that allows control of the operating voltage, current, or timing. The remote wire has a length of 5 meters, with extensions available upon request.

7. High-Quality Components: The power supply utilizes a German Infineon driver chip, Infineon IGBT, China SL Nitrogen, and a rectifier bridge.

8. Superior Conductor Material: The conductor is made of T2 Copper Sheet and Braided Belt, while the transformer comprises a nanocrystalline magnetic core and copper enameled wire, exceeding national standards for conductor cross-sections.

9. Self-Produced Control Circuit: The main control circuit board and drive circuit board are self-produced, featuring a split structure connected by computer wire. This design reflects over a decade of technological expertise.

Applications:

The 300A High-Frequency Electroplating Power Supply is ideally suited for various industries and applications that require reliable and high-frequency DC power, particularly in electroplating processes.

In conclusion, the Electroplating Rectifier 300A by Kehong is a technologically advanced power solution designed for efficiency and reliability, making it a critical tool for any industry requiring dependable DC power, especially for electroplating purposes.

Kehong offers Electroplating Rectifiers for sale and at wholesale prices, specializing in Metal Plating and Metal Coating Rectifiers. Make your metal plating processes efficient and cost-effective with our high-quality products.
