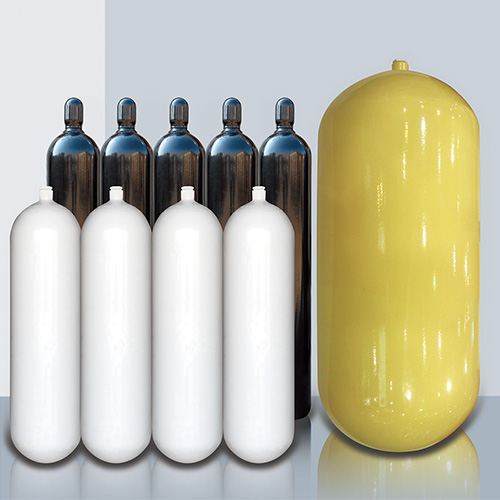

CNG Cylinder Type 2
CNG cylinder is a type of pressure vessel used to store compressed natural gas (CNG) for use as fuel for vehicles or as a source of energy for industrial and commercial applications.
Product Description
CNG cylinder is a type of pressure vessel used to store compressed natural gas (CNG) for use as fuel for vehicles or as a source of energy for industrial and commercial applications. CNG storage skid containers are typically made of steel or composite materials and are designed to withstand high pressure and temperature. They are filled with compressed natural gas at a filling station and can be used to fuel vehicles equipped with a CNG engine.
We have a variety cylinder for sale, ranging in size and capacity to meet your specific needs.
| Model | Capacity(L) | Height(mm) | Weight(kg) | Work Pressure(MPa) | Design Thickness(mm) | Material |
| CNG2-G-325-45-20B | 45 | 705 | 33 | 20 | 5 | 30CrMo+ Composite Material |
| CNG2-G-325-50-20B | 50 | 770 | 36 | 20 | 5 | |
| CNG2-G-325-55-20B | 55 | 835 | 40 | 20 | 5 | |
| CNG2-G-325-60-20B | 60 | 900 | 44 | 20 | 5 | |
| CNG2-G-325-65-20B | 65 | 965 | 48 | 20 | 5 | |
| CNG2-G-325-70-20B | 70 | 1030 | 52 | 20 | 5 | |
| CNG2-G-325-80-20B | 80 | 1160 | 60 | 20 | 5 | |
| CNG2-G-325-90-20B | 90 | 1290 | 68 | 20 | 5 | |
| CNG2-G-325-100-20B | 100 | 1420 | 76 | 20 | 5 | |
| cNG2-G-325-110-20B | 110 | 1550 | 84 | 20 | 5 | |
| CNG2-G-325-120-20B | 120 | 1680 | 92 | 20 | 5 | |
| CNG2-G-356-65-20B | 65 | 831 | 53 | 20 | 5.5 | |
| CNG2-G-356-70-20B | 70 | 886 | 56 | 20 | 5.5 | |
| CNG2-G-356-75-20B | 75 | 941 | 59 | 20 | 5.5 | |
| CNG2-G-356-77-20B | 77 | 963 | 60 | 20 | 5.5 | |
| CNG2-G-356-80-20B | 80 | 996 | 62 | 20 | 5.5 | |
| CNG2-G-356-85-20B | 85 | 1051 | 65 | 20 | 5.5 | |
| CNG2-G-356-90-20B | 90 | 1106 | 68 | 20 | 5.5 | |
| CNG2-G-356-93-20B | 93 | 1139 | 70 | 20 | 5.5 | |
| CNG2-G-356-103-20B | 103 | 1245 | 78 | 20 | 5.5 | |
| CNG2-G-356-100-20B | 100 | 1216 | 76 | 20 | 5.5 | |
| CNG2-G-356-110-20B | 110 | 1326 | 83 | 20 | 5.5 | |
| CNG2-G-356-120-20B | 120 | 1436 | 90 | 20 | 5.5 | |
| CNG2-G-356-140-20B | 140 | 1656 | 104 | 20 | 5.5 | |
| CNG2-G-356-145-20B | 145 | 1711 | 107 | 20 | 5.5 | |
| CNG2-G-406-80-20B | 80 | 810 | 64 | 20 | 6 | |
| CNG2-G-406-82-20B | 82 | 826 | 65 | 20 | 6 | |
| CNG2-G-406-87-20B | 87 | 866 | 67 | 20 | 6 | |
| CNG2-G-406-90-20B | 90 | 890 | 68 | 20 | 6 | |
| CNG2-G-406-100-20B | 100 | 970 | 76 | 20 | 6 | |
| CNG2-G-406-103-20B | 103 | 990 | 79 | 20 | 6 | |
| CNG2-G-406-107-20B | 107 | 1026 | 80 | 20 | 6 | |
| CNG2-G-406-110-20B | 110 | 1060 | 82 | 20 | 6 | |
| CNG2-G-406-120-20B | 120 | 1140 | 89 | 20 | 6 | |
| CNG2-G-406-200-20B | 200 | 1810 | 146 | 20 | 6 |
