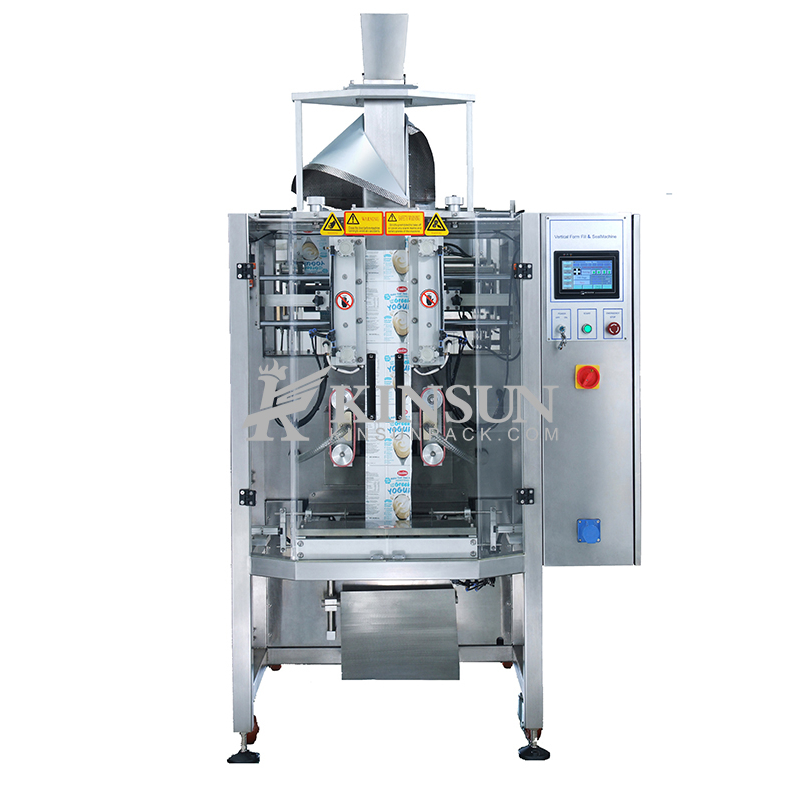

XJS-C Stand-up Quad-seal VFFS Machine
VFFS bagging machine
Product Description
VFFS bagging machine, a cutting-edge vertical packaging machine designed for creating stand-up square bottom pouches with a four-side sealing line. This innovative standing pouch packaging machine is tailored for high-standard packaging requirements
VFFS Bagging Machine Applications:
Coffee Packaging: Ideal for fresh roasted coffee, especially when paired with a degassing valve.
IQF Products: Perfect for Individual Quick Freezing applications, maintaining product freshness.
Pet Food Industry: Suited for packaging various types of pet food with high-quality standards.
Candy and Snacks: Creates eye-catching packaging for a wide range of confectionery and snack products.
Multiple Bag Sizes: Offers quick, tool-free changeover for packaging different bag sizes, enhancing flexibility.
|
Machine Series |
XJS-C Series |
|
|
Machine Name |
Stand-up Quad-seal Vertical Packing Machine |
|
|
Application |
The XJS-C series stand up pouch packing machine is a vertical packaging machine used to manufacture stand-up square bottom pouches with four-side sealing line. This automatic VFFS bagging machine mainly packs kinds of loose granular materials. It has unparalleled superior functions of ordinary vertical packaging machines. It is suitable for high-standard bag packaging requirements, such as beautiful bag shape, no wrinkles, and firm sealing. The four sides of the finished bag can be used for advertising printing, etc. A versatile attention-grabbing design that is very popular in the packaging industry, most notably in coffee, IQF(Individual Quick Freezing), pet food, candy, and snacks. This bag holds its shape well on the shelf and can support heavier fills of products. With the addition of a degassing valve, it becomes the perfect packing solution for fresh roasted coffee. |
|
|
Details
|
Stainless steel 304 structure. Color touch screen display, easy to operate and maintain. PLC control, excellent performance and long service life. High-precision intelligent temperature controller to ensure stable temperature control. Servo drives film pulling and horizontal sealing motivation. Equipped with thermal printer, automatically print the date and batch number. Automatic tracking of electric eyes, accurate positioning of trademarks. Quick, tool-free changeover – package multiple bag sizes on one vertical bagging machine. Switch bag sizes in minutes, not hours. |
|
|
Model |
XJS-C-320 |
|
Structure |
SS304 structure |
|
Bag Style |
Stand-up Quad-seal Bag |
|
Film Width |
260-320 mm/9.0” |
|
Bag Length |
230 mm/9.0” |
|
Packing Speed |
Max. 50 bags/min |
|
Power Supply |
220V, 50/60Hz, 3KW |
|
Air Consumption |
0.3m3/ min, 0.6MPa |
|
Dimension |
1320X 980 X 1550mm 51.96”x38.58”x61.02” |
|
Model |
XJS-C-430 |
|
Structure |
SS304 structure |
|
Bag Style |
Stand-up Quad-seal Bag |
|
Film Width |
260-430 mm/10.24”-16.93” |
|
Bag Length |
300 mm/11.81” |
|
Packing Speed |
Max. 50 bags/min |
|
Power Supply |
220V, 50/60Hz, 4.5KW |
|
Air Consumption |
0.3m3/ min, 0.6MPa |
|
Dimension |
1570 X 1180 X 1930mm 61.81”x46.46”x76” |
|
Model |
XJS-C-520 |
|
Structure |
SS304 structure |
|
Bag Style |
Stand-up Quad-seal Bag |
|
Film Width |
280-520 mm/11.02”-20.47” |
|
Bag Length |
350 mm/13.78” |
|
Packing Speed |
Max. 50 bags/min |
|
Power Supply |
220V, 50/60Hz, 4.5KW |
|
Air Consumption |
0.3m3/ min, 0.6MPa |
|
Dimension |
1620 X 1280 X2130mm 63.78”x50.40”x83.86” |
|
Optional Devices |
● Air flushing device ● Nitrogen gas flushing device ● Gusset device ● Air expeller device ● Hole punch device |
● Flip device ● Safety switch ● Special sealing jaws ● Tear notch device ● Material stopper |
● Bag support device ● PE sealing system ● Vacuum packing device ● Static eliminate device ● Film tracking device |
Company Service
As a professional VFFS bagging machine manufacturer, Kinsun Intelligent Equipment is dedicated to providing our clients with exceptional service and support. Our team of experts is always ready to offer advice and assistance throughout the use of our VFFS bagging machinery. We pride ourselves on our responsive technician team that is on standby to address any issues promptly. We also maintain a comprehensive stock of spare parts to ensure that your packing machine operates at peak performance at all times.
