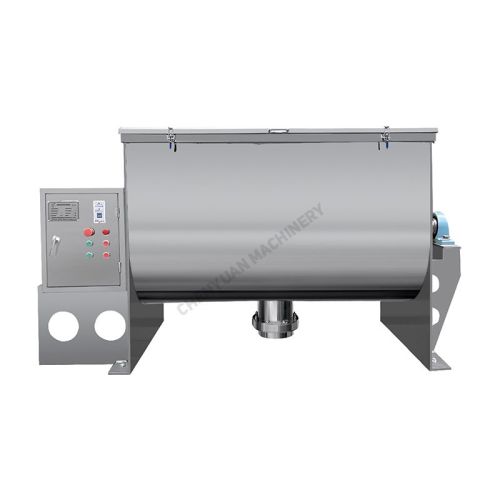

WLDH Horizontal Spiral Ribbon Mixer

WLDH Horizontal Spiral Ribbon Mixer

Product Description

The Horizontal Spiral Ribbon Mixer from ChenYuan is an advanced, high-efficiency mixing equipment designed for a wide range of applications. It provides uniform blending with low energy consumption and minimal material damage. This versatile mixer is ideal for industries that require precise and consistent mixing, including pharmaceuticals, food processing, chemicals, and construction.



Main Overview

The horizontal ribbon mixer consists of a U-shaped container, a ribbon agitating blade and a transmission component; the ribbon-shaped blade is generally made into a double or triple layer, and the outer spiral gathers the material from both sides to the center, and the inner spiral the material  transportes from the center to the sides to form a convective mixing. The ribbon mixer has good effects on the mixing of viscous or cohesive powders and granules and the mixing of liquid and paste materials in the powder. The cylinder cover can be made into a fully open door to facilitate cleaning and replacement of the equipment or product.



Technical Parameter

Model

Full volume(M³)

Loading coefficient

Motor power(kw)

Dimensions (L×W×H)

Equipment weight

WLDH-0.1 0.1 0.4-0.8 2.2 1190×740×770 330

WLDH-0.3

0.3

0.4-0.8

5.5

2030×630×980

720

WLDH-0.5 0.5 0.4-0.8 7.5 2320×730×1130 980

WLDH-1

1

0.4-0.8

11

2800×920×1320

1700

WLDH-1.5 1.5 0.4-0.8 15 3180×1020×1550 1800

WLDH-2

2

0.4-0.8

15

3310×1120×1640

2100

WLDH-3 3 0.4-0.8 18.5 3750×1290×1820 3000

WLDH-4

4

0.4-0.8

22

4200×1400×1990

3980

WLDH-5 5 0.4-0.8 22 4220×1500×2100 4620

WLDH-6

6

0.4-0.8

30

4420×1610×2260

6180

WLDH-8 8 0.4-0.8 37 4700×2150×2470 8200

WLDH-10

10

0.4-0.8

45

5520×2960×2720

8920

WLDH-12 12 0.4-0.8 45 5720×3010×2840 9520

WLDH-15

15

0.4-0.8

55

5840×3540×2940

9950
