Product Description
Country/Region:China
City:Wenzhou

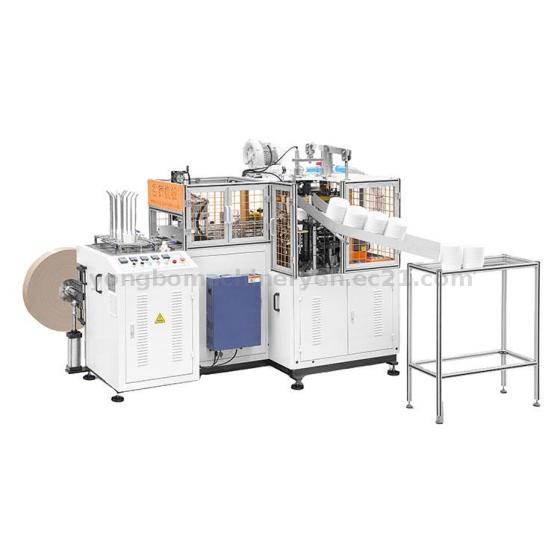

This Yongbo Machinery® Medium speed paper bowl machine is the new design adds a bottom heating system more than the old design which make the paper cup sealing effect is more better. This model is equipped with 10 Cup molds, which operates faster than the old 8 Cup molds。The steel plate presses the bottom paper to make the paper feeding more stablyand smoothly。Two cooling fans, two fans can make the paper fan cooling faster, make the cup fan better sealing
Model | YB-W35 Automatic Paper Bowl Forming Machine |
Cup Size | 20-50oz(Mould Can Be Changed As The Requirements Of Clients) |
Raw Materials | Single /Double PE Coated Paper |
Paper Weight | 140-350gsm |
Speed | 60-75pcs/Min |
Power Source | 380V 50Hz |
Total Power | 4.8KW |
Weight | 2400KG |
Dimension | 2450 X 1300 X 1750mm; |
L*W*H | |
Air Pressure Requirements | 0.6Mpa, Output :0.6 M3/Minute |
Machine Should Work With The Air Compressor |
This Medium speed paper bowl machine Reliability:
YB-W35 intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality;
The integral steel body and the auto oil lubrication system ensure long-term normal and stable operation of the machine
This Medium speed paper bowl machine Energy efficient:
The advanced high-precision open cam drive and gear drive make it more accurate and stable; Servo tracking bottom paper feeding locks the size of the bottom paper , which effectively saves raw materials;
1.Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process. E.Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery. F.Stretch knife uses for bottom cutting. Easy changed and more stable.
2.Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, thus improving heating effect and helping guarantee knurling.
3.Paper Soup Bowl Making Machine knurling device adopts hardening treatment,make up the cup knurling more beautiful and increase it use life.
Yongbo Machinery Medium speed paper bowl machine After-sale service:
After the equipment leaves the factory, the company sends professional technicians to install and debug the equipment to produce qualified products that customers are satisfied with. One year free warranty and lifetime technical support.
Yongbo Machinery Medium speed paper bowl machine Later service:
The company has set up professional and technical personnel to tour all over the country, visit customers regularly, and discuss with customers to solve new problems in use in a timely manner. And cooperate with customers to formulate sales plans. It is our diligent pursuit to let customers buy with confidence and use them comfortably.
This Yongbo Machinery® Medium speed paper bowl machine is the new design adds a bottom heating system more than the old design which make the paper cup sealing effect is more better. This model is equipped with 10 Cup molds, which operates faster than the old 8 Cup molds。The steel plate presses the bottom paper to make the paper feeding more stablyand smoothly。Two cooling fans, two fans can make the paper fan cooling faster, make the cup fan better sealing
Model | YB-W35 Automatic Paper Bowl Forming Machine |
Cup Size | 20-50oz(Mould Can Be Changed As The Requirements Of Clients) |
Raw Materials | Single /Double PE Coated Paper |
Paper Weight | 140-350gsm |
Speed | 60-75pcs/Min |
Power Source | 380V 50Hz |
Total Power | 4.8KW |
Weight | 2400KG |
Dimension | 2450 X 1300 X 1750mm; |
L*W*H | |
Air Pressure Requirements | 0.6Mpa, Output :0.6 M3/Minute |
Machine Should Work With The Air Compressor |
This Medium speed paper bowl machine Reliability:
YB-W35 intelligent medium-speed paper bowl forming machine has the advantages of high performance, high efficiency and high quality;
The integral steel body and the auto oil lubrication system ensure long-term normal and stable operation of the machine
This Medium speed paper bowl machine Energy efficient:
The advanced high-precision open cam drive and gear drive make it more accurate and stable; Servo tracking bottom paper feeding locks the size of the bottom paper , which effectively saves raw materials;
1.Photoelectric failure-detecting system is available. PLC control system for the whole cup forming process. E.Servo control to send bottom paper of cup, deliver bottom when cup tube come, otherwise no bottom delivery. F.Stretch knife uses for bottom cutting. Easy changed and more stable.
2.Switzerland Leister heating device is equipped for cup body and bottom sealing, bottom are heated at first before they are feeding, thus improving heating effect and helping guarantee knurling.
3.Paper Soup Bowl Making Machine knurling device adopts hardening treatment,make up the cup knurling more beautiful and increase it use life.
Yongbo Machinery Medium speed paper bowl machine After-sale service:
After the equipment leaves the factory, the company sends professional technicians to install and debug the equipment to produce qualified products that customers are satisfied with. One year free warranty and lifetime technical support.
Yongbo Machinery Medium speed paper bowl machine Later service:
The company has set up professional and technical personnel to tour all over the country, visit customers regularly, and discuss with customers to solve new problems in use in a timely manner. And cooperate with customers to formulate sales plans. It is our diligent pursuit to let customers buy with confidence and use them comfortably.
