Product Description

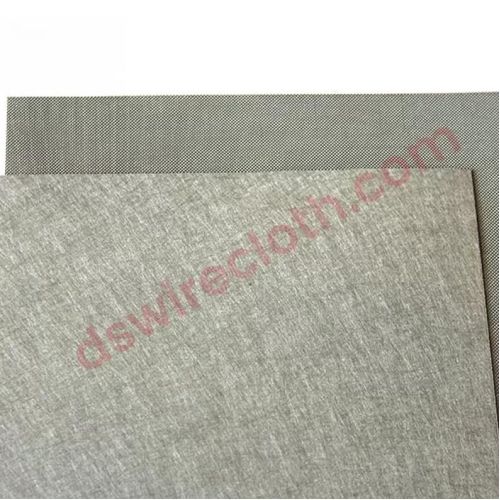

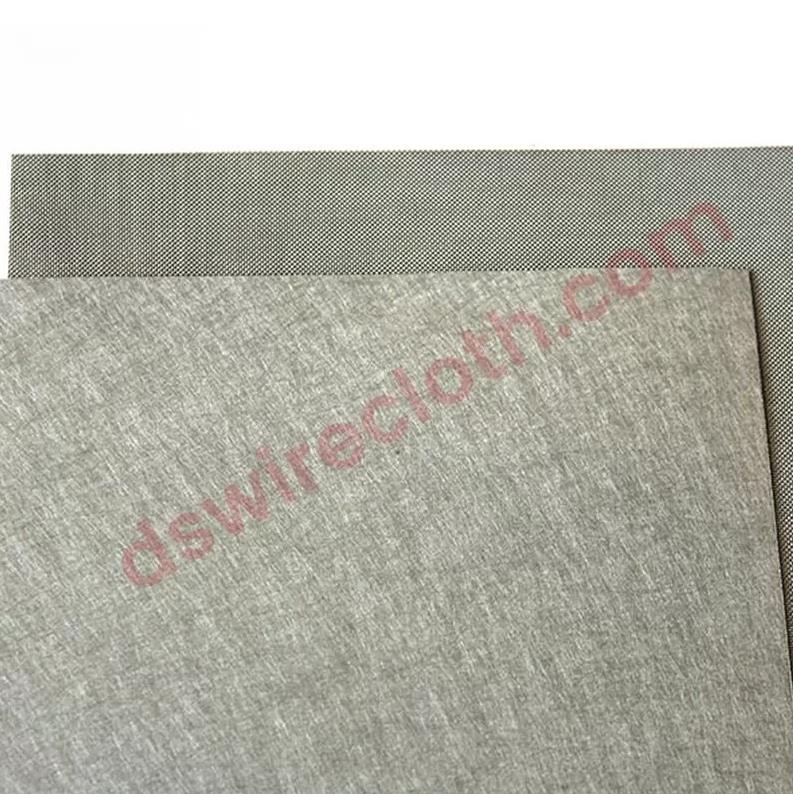

Sintered metal fiber felt (non-woven medium) is made of stainless steel that are non-woven, laminated and sintered at high temperature. Sintered metal fiber felt has a pore gradient formed by layers of different pore sizes, which can be controlled to achieve relatively high filtration accuracy and a large amount of dirt holding capacity. It has the characteristics of three-dimensional network, porous structure, high porosity, large surface area, uniform pore size distribution, etc., and can continuously maintain the filtration effect of the filter mesh.
Generally, 10-20 micron metal fiber media is used to filter textile resin; 20-40 micron metal fiber media is used to filter resin for packaging materials or bottled resin.
Sintered Metal Fiber specifications and dimensions:
Standard size: 1000mmx500mm
1000mmx600mm
1000mmx1000mm
1200mmx1000mm;
Maximum size: 1480mm x 1000mm; Standard material: SUS316L;
The dimensions within the above range can be customized according to user requirements.
Main performance and application:
1). Large pollution capacity, high filtration accuracy, slow pressure rise, and long replacement cycle;
2). High porosity and excellent permeability, low pressure loss, and high flow rate
3). It is resistant to corrosion, high temperature, acid, alkali, organic solvents, drugs, etc., and can be used for a long time in an environment of 480 ℃;
4). Easy to process, shape, and weld;
5). We can produce reinforced, thickened, reinforced mesh, and various other specifications according to user requirements.
Sintered metal fiber felt has excellent filtration performance and is an ideal filtering material that is resistant to high temperature, corrosion, and high precision. It is widely used in polymer filtration, petrochemicals, high-temperature gas dust removal, oil refining process filtration, adhesive filtration, ultrafiltration pre filtration, vacuum pump protection filter, filter membrane support body, catalyst carrier, automotive safety airbags, aircraft and ships, fuel filtration, hydraulic system filtration, etc.
