Field fence mesh

Product Description:

Field Fence Mesh, also known as Cattle Fence, Farm Fence, Grassland Fence Mesh, Goat Fence, Horse Fence, and Sheep Fence, is made of high carbon steel wire and hot dipped galvanized wire twisted by automatic machinery. It offers several advantages,including a novel structure, firmness, accuracy, a flat mesh surface, uniform mesh,
strong integrity, high toughness, corrosion resistance, and long service life. Even when partially under pressure, it will not loosen or break.
The fence is mainly used for constructing grasslands in pastoral areas to implement fixed-point grazing and separate grazing.
 it is also suitable for agricultural and animal husbandry professional households to establish farms.

Material: low carbon hot dipped galvanized iron wire,（tensile strenght:450N/mm2-550N/mm2）

Medium carbon hot dipped galvanized wire,（tensile strenght:550N/mm2）

high strength galvanized steel wire,(tensile strenght:1280N/mm2)

Surface treatment:
Class A: Hot dipped galvanized hinge joint field fece(zinc coated:220-260 g/m2)
Class B: Hot dipped galvanized hinge joint field fence(zinc coated:30-60 g/m2)
Class c: Electro galvanized hinge joint field fence(zinc coated:15-20 g/m2) nomarlly used in Africa Middle east.

Horizontal wire: tensile strength 80KG - 90KG to increase the impact resistance of the net.
Vertical wire: low-carbon steel wire with a tensile strength of 40KG-50KG for winding on the horizontal wire.

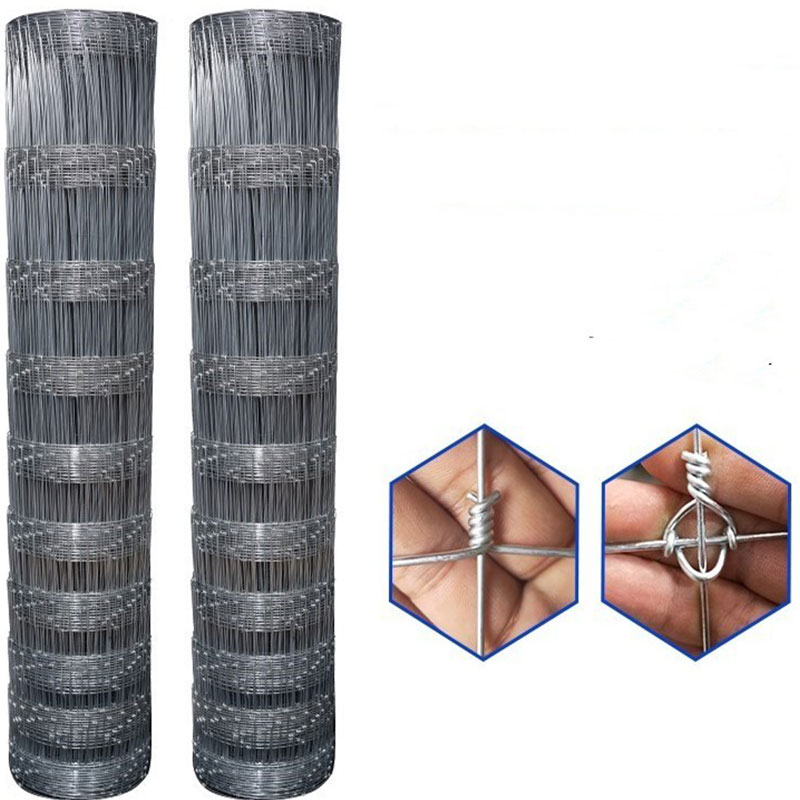

Knot Types: Hinge knot, Fixed Knot.

Hinge Knot Field Fence Mesh     Fixed Knot Field Fence Mesh

Specifications:
Diameter: 1.8-2.5mm( inner wire ), 2.0-3.5mm( outer wire)
Edge wire: 2.0 mm-3.4 mm
Mesh wire dia : 1.9 mm-2.5 mm
Height: 0.7m,0.8m,0.9m,1.0m,1.1m,1.2m,1.5m,2.0m. We can also make as the request of the customer.
Height of mesh opening: not less 5.0cm
Length: 50 m,100m,200 m ;(According to the request of the customer)
Width of mesh opening:7.5cm, 15cm,30cm.
Opening in cm:
(warp)15-14-13-11-10-8-6 cm; ( 6" 5.5" 5" 4.5" 4" 3" 2.5")
(weft)15-18-20-40-50-60-65 cm (6" 7" 8" 15" 20" 24" 25")

Packing and Delivery: 1. Plastic film per roll with label，2. Wrapped plastic film outside pallet.
