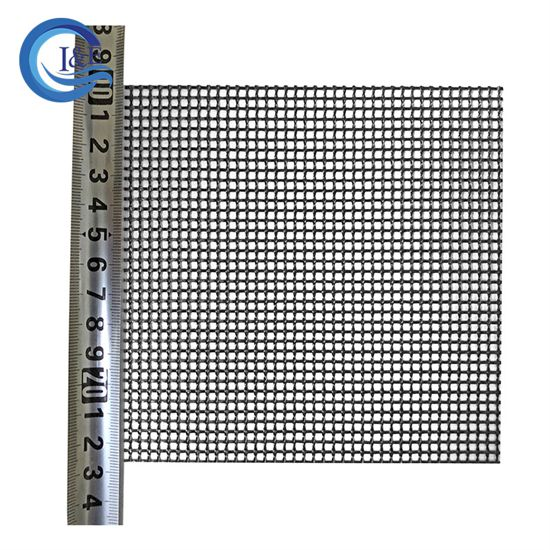

Fiberglass Mesh Filter

Compared with other types of filters, fiberglass filter mesh sheets are cheap, easy to use, does not change the metal composition of the casting, has good slag filtering effect and low gas generation.

Product Description

Fiberglass Filter Mesh Sheets are made of high temperature resistant fiber, woven and processed by special technology.

There are kinds of products series with advanced technology and stable quality.

Compared with other types of filters, fiberglass casting filter is cheap, easy to use, does not change the metal composition of the casting, has good slag filtering effect and low gas generation.

In addition, it also has high temperature resistance, ablation resistance,good chemical stability, resistance to metal melt erosion and good steel strength.

Parameter

In casting production, steel castings, iron castings, aluminum castings and other alloy castings are prone to quality problems such as slag holes, sand holes and gas holes due to various reasons. Therefore, the removal of non-metallic inclusion in metal melt is of great technical and economic value to improve the yield of castings and the quality of castings.

Fiberglass Mesh Filter

Fiberglass filter mesh sheets features:

◆ Remove bubbles, oxides, dust and other miscellaneous objects and harmful impurities, eliminate air -eye, slag eye, and improve the yield and appearance quality and inherent quality of the casting.



◆ Improve the mechanical properties of the casting after filtering, such as the stiffness, surface, and bending strength of the casting.



This Fiberglass filter mesh sheets is used by a casting plant for filtering metal melting water, such as aluminum water, iron, and steel. In order to adapt to various applications of castings, we can make alien nets for casting filters. The shape can be like discs, cups, small baskets, etc. We can provide custom sizes according to your requirements.



Fiberglass Mesh Filter is an ideal filter material for various metal melts. It can also be used for the filtration of chemical corrosive liquids and high temperature gases.

Type Alkali-free Fiberglass filtration mesh for aluminum
Work Temperature 700-800℃
Softening Temperature 900℃
Continuous Working Hours <20Min.(700-800℃)
Gas Emit ≤30cm 3/g
Thickness 0.5mm
Weight 150-350 g/m2
Hole Size 0.8*0.8/1.0*1.0/1.2*1.2/1.5*1.5/2.0*2.0/2.5*2.5mm
Weave Pattern Leno
Certificate ISO9001:2015


Fiberglass filter mesh sheets can be made in various sizes and shapes to fit different filter housings and systems. They can also be designed to meet specific filtration efficiency, temperature resistance, and chemical resistance requirements.



Related news:

  1. Advantages of Fibreglass Mesh Filters

  2. Production technical process of Fiberglass Filter Mesh

  3. What Should I Pay Attention to when Using Fiberglass Filters

  4. Why MUST adopt filtration mesh in foundry



Cangchen is the recognized leader in the development and production of Fiberglass filter mesh sheets at home and abroad and possesses excellent innovation capabilities in filter manufacturing technology. We not only customize the casting filtration products to those who have their own brand but also customize the solutions and services to them. Thank you for reading, we hope it will help you better understand fiberglass filters!
