Cap Filter Mesh

Find here details of Cangchen selling cap filter mesh. All the products with super quality and competitive price. our company is a leader in the industry and we will not disappoint you.

Product Description

The cap-style is woven with special high-twist & high-strength alkali-free fiberglass and special post-treatment. The maximum temperature resistance can reach 900 ℃.

Cap Filter Mesh can effectively reduce more than half of the slag, impurities caused by the waste phenomenon. This is also the main reason for the wide use of filters, is also the main trend.

Parameter

Cap Filter Mesh, also known as Mesh filter cap, are widely used in all walks of life and are commonly used as components in the filtration process. It is widely used in automobile and motorcycle wheels, cylinder pistons, aluminum rods, aluminum materials, aluminum ingots, aluminum plates and precision casting of all types of aluminum alloy casting.The structure of the covered mesh cap is simple, economical and practical, and the data such as filtration accuracy, size, appearance and shape can be adjusted as needed.



Cap Filter Mesh can effectively remove impurities, reduce turbulence and eliminate air bubbles, thereby improving the quality of castings and reducing costs. At the same time does not pollute the aluminum liquid and affect the chemical properties of the metal. Therefore, aluminum waste containing the filter mesh, aluminum liquid from sprue and the riser can be directly returned to the furnace for remelting, greatly reducing costs.



Cangchen can provide you with customized services and recommendations according to your needs. If you need Cap Filter Mesh, just click the button below.

Cap Filter Mesh



Cap Filter Mesh Features and Functions:

● Carbonized by High Temperature.

● Coated with special resin.

● Smokeless & Odorless & Flameless.

● With one or two staple or not, up to clients' need.

● Effectively remove impurities, reduce turbulence and eliminate air bubbles from molten aluminium.

●  Improving the quality of castings and reducing costs.

● The aluminium filtered by this mesh can be recycled again.

●  It is environment-friendly products.

●  All shapes can be customized according to clients' requirements.

Cap Filter Mesh



About Cap Filter Mesh customization:

Materials: Fiberglass
Shapes: The shapes of filter screen products are: rectangle, square, circle, ellipse, ring, rectangle, hat, waist, and special-shaped.
Types: single-layer, double-layer, and multi-layer.
Produce process: The different shapes of the filter mesh, and the technology is also different.

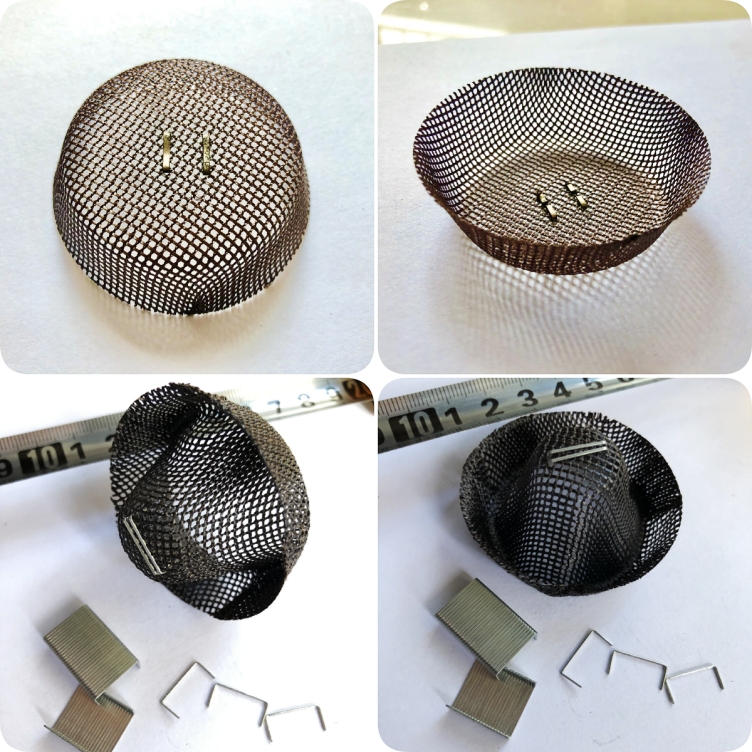

Cap Filter Mesh with staples

Cap Filter Mesh with staples

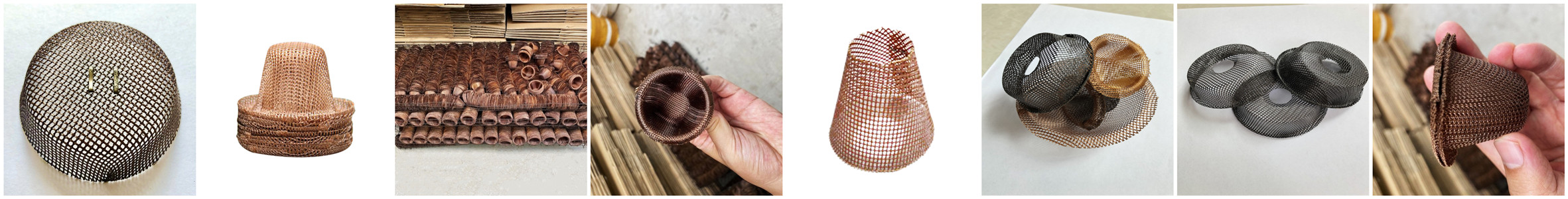

Cap Filter Mesh of different shapes

Cap Filter Mesh of different shapes

Type Fiberglass filtration Mesh Cap for aluminum
Work Temperature 700-800℃
Softening Temperature 900℃
Continuous Working Hours <20Min.(700-800℃)
Gas Emit ≤30cm 3/g
Thickness 0.5mm
Weight 150-350 g/m2
Hole Size 0.8*0.8/1.0*1.0/1.2*1.2/1.5*1.5/2.0*2.0/2.5*2.5mm
Weave Pattern Leno
Certificate

ISO9001:2015



Cangchen is a professional foundry filtration products manufacturer who focuses on production, sales, service and solutions. If you want to know more about our Cap Filter Mesh price, we are online 24 hours a day and welcome your consultation.
